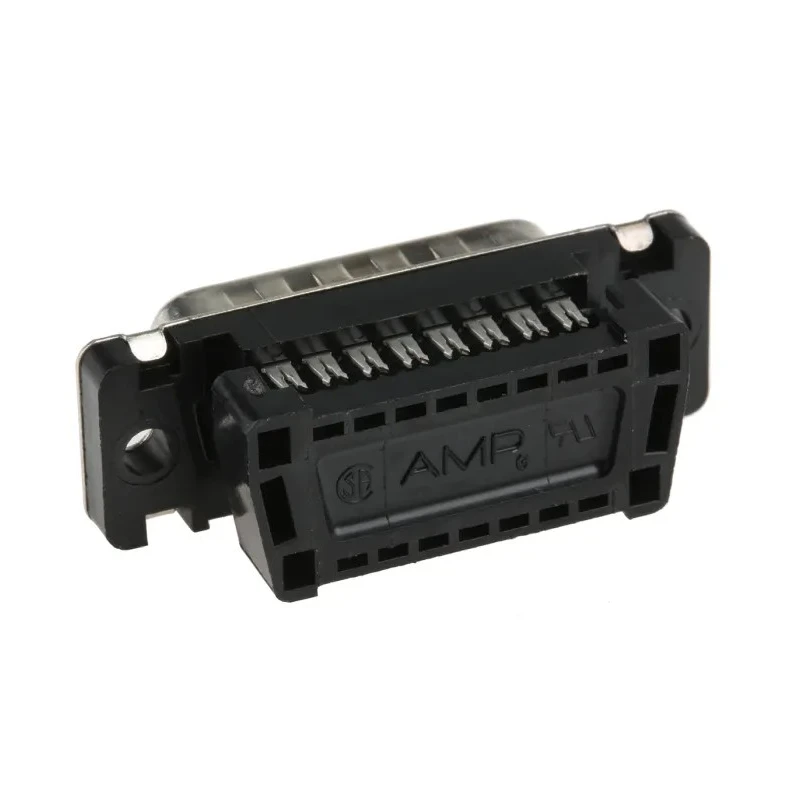

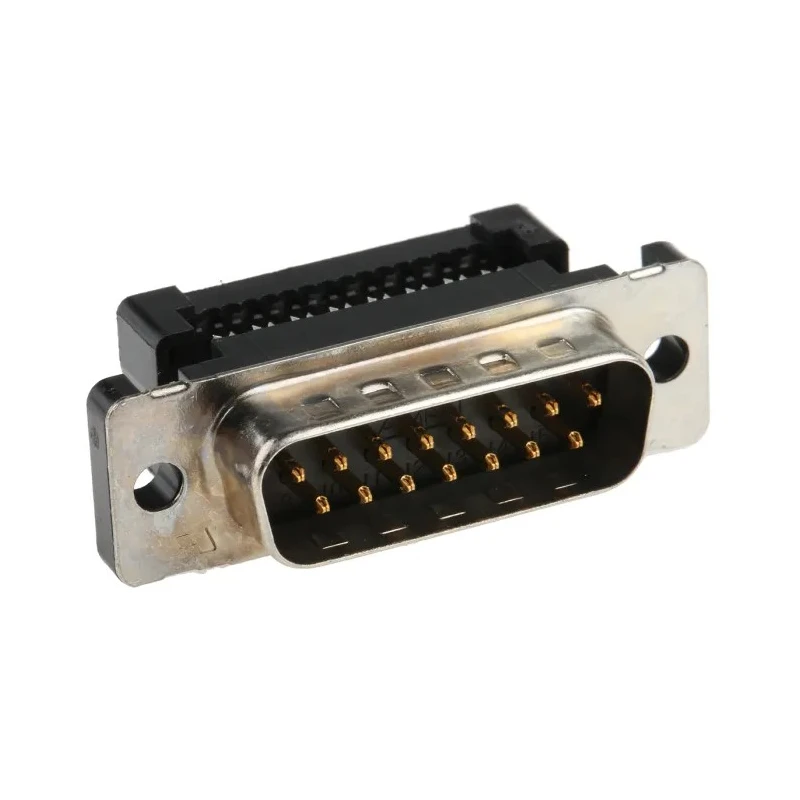

TE Connectivity Amplimite HDF-20 15 Way Right Angle 2.76 mm Pitch Cable D-Sub Connector Male 1658613-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1.25A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Phosphor Bronze |
| Series | Amplimite HDF-20 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |

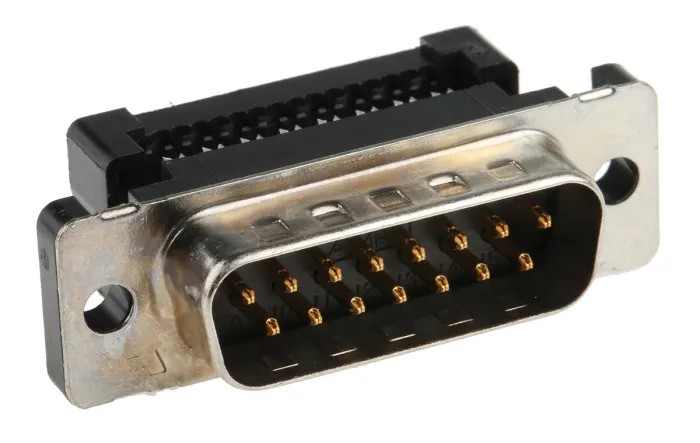

| RS PRO 15 Way Straight 1.27 mm Pitch Cable D-Sub Connector MaleBrand | RS PRO |
Key Features
- The connector supports up to 1.25A current capacity at 30V voltage rating.
- It has a robust steel housing with gold over nickel plated phosphor bronze contacts for durability.
- Right angle orientation and cable mount type ensure secure and reliable connections.
- Suitable for operating temperatures ranging from -55°C to 105°C, ideal for harsh environments.
- Termination is via insulation displacement connection (IDC), facilitating fast cable assembly.
- The low profile metal shell design reduces space usage in tight installations.
- Compatible with 28 AWG and 26 AWG solid and stranded round conductor flat ribbon cables on 1.27 mm centers.
- This male connector mates with HD-20 Board Mount, HDP, and HDE connectors of sizes 1-4.
Product Description
TE Connectivity 1658613-3 Amplimite HDF-20 15 Way Right Angle 2.76 mm Pitch Cable D-Sub Connector Male is a precision electronic component designed for professional cable interconnections and assemblies. This D-Sub Connector is engineered with a steel housing that provides excellent mechanical strength and durability for industrial and commercial applications. It features gold over nickel plated phosphor bronze contacts that ensure low resistance and reliable signal transmission.
This right angle cable mount male connector is compatible with flat ribbon cables using insulation displacement contact (IDC) termination, making it efficient for fast and secure cable assemblies. Suitable for operating temperatures from -55°C to 105°C, it performs reliably across demanding environmental conditions.
The low profile design minimizes space consumption while maintaining robust electrical and mechanical performance. Its 2.76 mm pitch and 15 contact positions accommodate complex wiring needs commonly found in industrial automation, communication equipment, and instrumentation setups.
It mates perfectly with Amplimite HD-20 board mount connectors and related series such as HDP and HDE (sizes 1-4), enabling flexible system designs. Pre-assembled thermoplastic housings rated 94V-0 offer excellent flame retardance and safety compliance.
Additional accessories including strain reliefs, screwlocks, and specialized assembly tools are available to optimize connector durability and installation quality. This product is ideal for industrial, manufacturing, laboratory, and electronic equipment applications requiring secure multi-contact cable connections.
The connector supports up to 1.25A current capacity at 30V voltage rating. Robust steel housing with gold over nickel plated phosphor bronze contacts ensures durability and conductivity. Right angle orientation and cable mount design for efficient space utilization and cable routing.
Wide operating temperature from -55°C to 105°C suitable for harsh industrial environments. Insulation displacement (IDC) termination allows quick and reliable cable assembly. Low profile metal shell housing reduces installation footprint in tight spaces.
Compatible with flat ribbon cables 28 AWG/26 AWG, 1.27 mm spacing. Mates with Amplimite HD-20 board mount, HDP, and HDE series connectors. Pre-assembled 94V-0 rated thermoplastic housings enhance electrical safety. Optional strain reliefs, screwlocks, and assembly tools improve installation robustness.
Explore more products related to connectors and electronic components for your industrial and manufacturing needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current capacity of up to 1.25A and has a voltage rating of 30V.
It operates reliably within a temperature range of -55°C to 105°C, making it suitable for harsh environments.
The connector utilizes insulation displacement connection (IDC) for efficient and quick cable assembly.
The housing is made of steel, while the contacts are composed of phosphor bronze with gold over nickel plating.
This model features a 2.76 mm pitch and has 15 contact positions.
It is compatible with 28 AWG and 26 AWG solid and stranded round conductor flat ribbon cables on 1.27 mm centers.
This connector has a right angle orientation and is designed for cable mounting.
It mates with Amplimite HD-20 board mount connectors as well as HDP and HDE series connectors of sizes 1-4.
Optional accessories include strain reliefs, screwlocks, and specialized assembly tools to enhance installation quality.
The low profile metal shell design minimizes space usage, making it suitable for tight installations, though specific dimensions are not provided.
The connector features pre-assembled thermoplastic housings rated 94V-0, which provide excellent flame retardance and safety compliance.
The country of origin for this connector is India.
