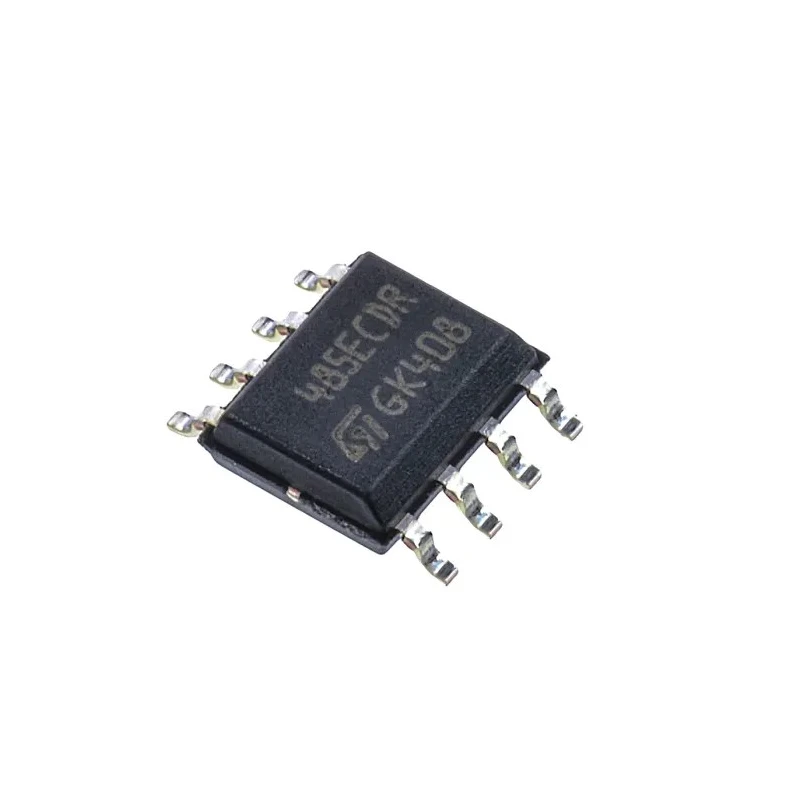

STMicroelectronics Line Transceiver IC 3 State, 8-Pin SOIC, Surface Mount, 5V-7V Supply, Transceiver ST485ECDR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | ST485ECDR |
| Width | 4mm |
| Mount Type | Surface |
| Output type | 3 State |
| Series | ST485E |
| Input Type | Differential |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| IC Type | Line Transceiver IC |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 7V |
| Logic Function | Transceiver |
| Minimum Supply Voltage | 5V |
| Maximum High Level Output Current | 4mA |
| Maximum Propagation Delay Time @ CL | 130ns |
| Supply Current | 300μA |
Key Features
- Operates with supply voltage range from 5V to 7V.
- Single channel transceiver with differential input and 3-state output functionality.
- Surface mount device in compact 8-Pin SOIC package measuring 5mm by 4mm by 1.75mm.
- Low supply current consumption of 300μA ensuring energy efficiency.
- Wide operating temperature range from -55°C to 125°C suitable for industrial applications.
- Maximum propagation delay time of 130ns at capacitive load preserves signal integrity.
- Complies with RS-422, RS-485, and IEC-1000-4-2 electromagnetic compatibility standards.
- Maximum output current of 4mA for both high and low levels enables robust interfacing.
Product Description
STMicroelectronics ST485ECDR is an industry-grade line transceiver IC designed to meet RS-422 and RS-485 communication standards. It supports 3-state output and is mounted on a compact 8-Pin Small Outline IC (SOIC) package suitable for surface mounting. The device operates reliably over a wide supply voltage range of 5V to 7V, making it versatile for industrial and commercial electronic interface applications.
This transceiver features a single channel with differential input types and a 3-state output to ensure efficient line communication and signal isolation. Its low supply current of approximately 300 microamps contributes to low power consumption, which is critical in embedded and portable systems.
The operational temperature range spans from -55°C to 125°C, allowing the transceiver to function reliably in harsh environments and demanding industrial settings. With a maximum propagation delay of 130 nanoseconds at capacitive load, the device maintains fast and stable data transmission.
The compact dimensions of 5mm length, 4mm width, and 1.75mm height in SOIC format facilitate high-density PCB layouts. Compliance with RS-422, RS-485, and IEC-1000-4-2 standards ensures electromagnetic compatibility and resilience against electrostatic discharge.
This line transceiver is ideal for applications requiring robust serial communication lines such as industrial automation, control systems, instrumentation, and networking equipment. It provides dependable performance for differential signal transmission over longer distances.
Operates on 5V to 7V power supply. Provides single differential channel with 3-state output. Surface mount 8-pin SOIC package for compact PCB design. Low power consumption with 300μA supply current. Wide temperature tolerance from -55°C to 125°C.
Fast propagation delay time of 130ns ensures swift communication. Standards compliant: RS-422, RS-485, IEC-1000-4-2. Maximum output current is 4mA for high and low states. Suitable for industrial, manufacturing, and telecommunications applications.
Explore the diverse range of semiconductor Line Interface ICs and transceivers available on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This line transceiver operates with a supply voltage range from 5V to 7V.
The maximum operating temperature for the ST485ECDR is 125°C.
The maximum propagation delay time is 130 nanoseconds at capacitive load.
This model features a single channel with differential input types.
The ST485ECDR is available in an 8-Pin Small Outline IC (SOIC) package.
It has a low supply current consumption of 300 microamps.
The output type of the ST485ECDR is 3-state.
The maximum high-level output current is 4mA for both high and low levels.
It complies with RS-422, RS-485, and IEC-1000-4-2 standards for electromagnetic compatibility.
The dimensions of this model are 5mm in length, 4mm in width, and 1.75mm in height.
The minimum operating temperature for the ST485ECDR is -55°C.
This device is suitable for industrial automation, control systems, instrumentation, and networking equipment.
