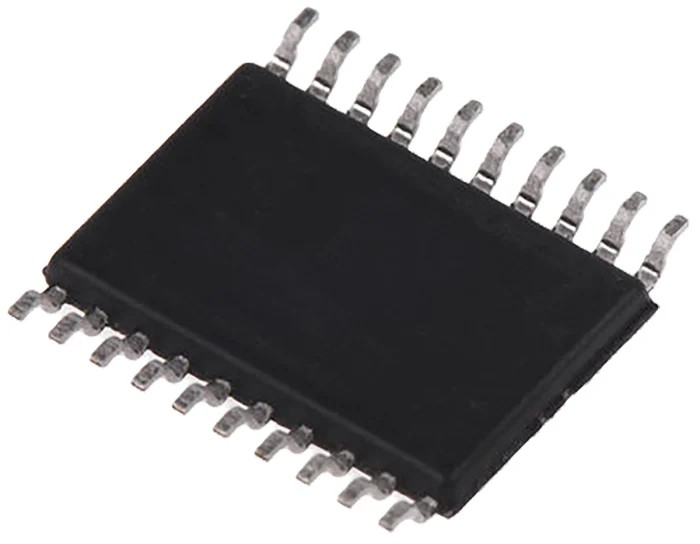

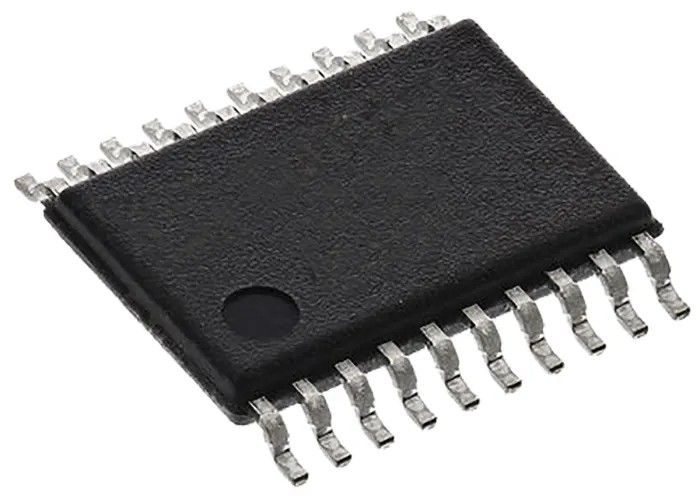

STMicroelectronics Line Transceiver IC, Single Ended Input, Surface Mount, 20-Pin TSSOP, 7.5-15V Supply Voltage ST75185CTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.2mm |
| Length | 6.6mm |
| Model | ST75185CTR |
| Width | 6.6mm |
| Mount Type | Surface |
| Series | ST75185C |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | 0°C |
| IC Type | Line Transceiver IC |
| Pin Count | 20 |
| Maximum Supply Voltage | 15V |
| Logic Function | Transceiver |
| Minimum Supply Voltage | 7.5V |
| Maximum High Level Output Current | -6mA |
| Maximum Propagation Delay Time @ CL | 500ns |
| Supply Current | 25mA |
| Maximum Low Level Output Current | 6mA |
Key Features
- The device supports a maximum propagation delay time of 500ns at CL.
- Operational temperature ranges from 0°C to 70°C for reliable performance.
- Maximum high-level output current is -6mA, and maximum low-level output current is 6mA.
- The compact package measures 6.6mm in length, width, and 1.2mm in height.
- It is part of the ST75185C series, optimized for RS-232 line driving and receiving.
Product Description
STMicroelectronics ST75185CTR Line Transceiver IC is a reliable semiconductor device suitable for RS-232 line drivers and receivers in electronic circuits. It features a 20-pin TSSOP package and is designed for single-ended inputs with surface mount technology, enabling compact and efficient PCB designs.
The transceiver operates within a supply voltage range of 7.5V to 15V and draws a supply current of 25mA, providing balanced power consumption for embedded and industrial applications. Its maximum propagation delay time of 500ns at the specified load capacitance ensures swift data transmission and reception.
Designed to perform effectively across an operating temperature range from 0°C to 70°C, the ST75185CTR is suited for various commercial and industrial environments. It handles maximum high and low-level output currents of -6mA and 6mA respectively, ensuring adequate signal drive capability.
The device's mechanical dimensions of 6.6mm length and width and 1.2mm height allow for compact board layouts without sacrificing performance. It does not include specific automotive standards or certifications but conforms to general semiconductor quality requirements.
This transceiver IC is an ideal choice for industrial electronics, communication equipment, and embedded systems requiring robust RS-232 interfacing. It integrates seamlessly into designs necessitating surface mounted components with efficient power usage.
The device supports a maximum propagation delay time of 500ns at CL. Operational temperature ranges from 0°C to 70°C for reliable performance. Maximum high-level output current is -6mA, and maximum low-level output current is 6mA.
The compact package measures 6.6mm in length, width, and 1.2mm in height. It is part of the ST75185C series, optimized for RS-232 line driving and receiving. Explore our selection of semiconductor Line Interface ICs for a range of industrial, laboratory, and communication applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 7.5V to 15V.
The maximum propagation delay time is 500ns at the specified load capacitance.
It measures 6.6mm in length and width, with a height of 1.2mm.
The operational temperature ranges from 0°C to 70°C, suitable for various environments.
This model supports single-ended inputs, making it suitable for specific applications in RS-232 interfacing.
It draws a supply current of 25mA during operation.
The maximum high-level output current is -6mA, and the maximum low-level output current is 6mA.
This device is packaged in a 20-pin TSSOP format, suitable for surface mount applications.
It is part of the ST75185C series, optimized for RS-232 line driving and receiving.
The ST75185CTR functions as a transceiver, facilitating both transmission and reception of signals.
While it conforms to general semiconductor quality requirements, it does not include specific automotive standards or certifications.
This line transceiver is suitable for industrial electronics, communication equipment, and embedded systems requiring RS-232 interfacing.
