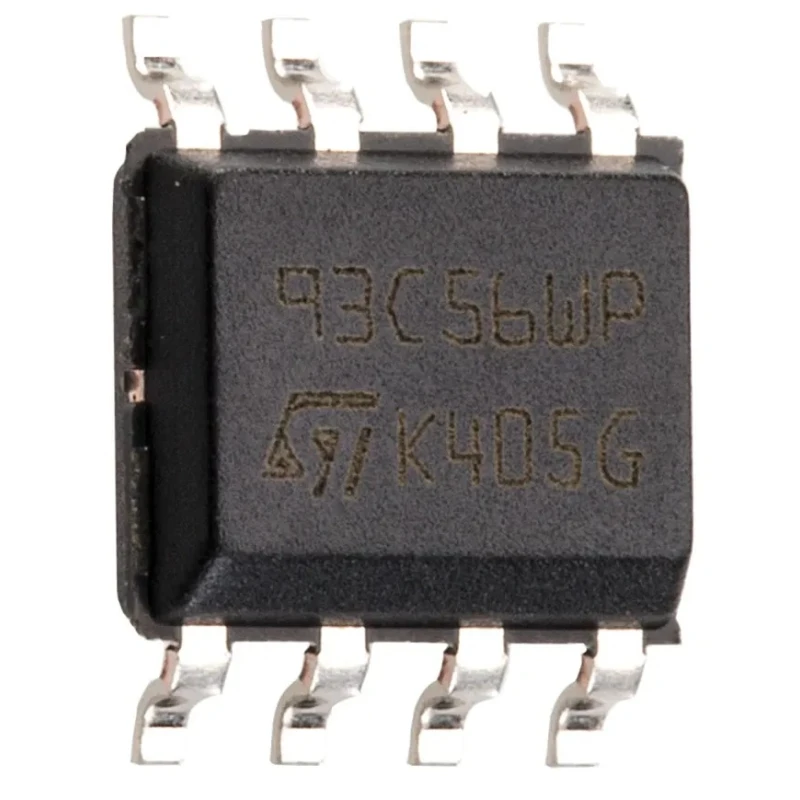

STMicroelectronics 2 kB Serial EEPROM, 200 ns 8-Pin SOIC Serial-Microwire M93C56-WMN6TP

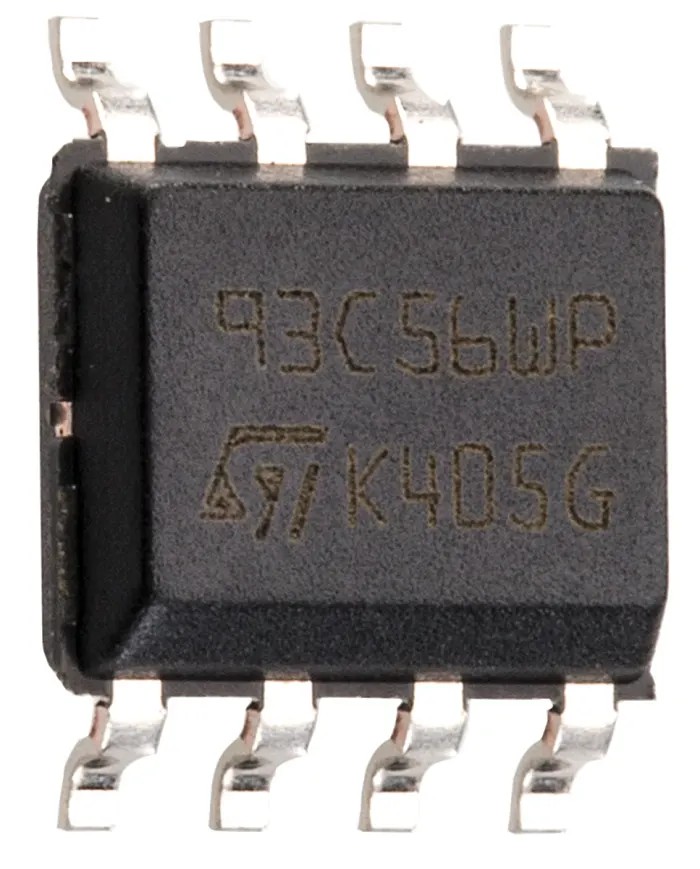

STMicroelectronics M93C56-WMN6TP is a 2 kB Serial EEPROM device featuring a serial Microwire interface and packaged in an 8-pin SOIC surface mount configuration. It supports a data organisation of 256 x 8 bits and provides reliable electrical erasability and programming capabilities, suitable for embedded memory applications.

This EEPROM operates with a supply voltage ranging from 2.5V minimum to 5.5V maximum, enabling compatibility with a wide range of electronic systems. The device supports clock frequencies up to 2 MHz allowing efficient data communication and programming speed for embedded designs.

Designed for industrial environments, it operates reliably within temperature ranges from -40°C to 85°C. The compact 8-pin SOIC form factor measures 5 mm in length, 1.75 mm in height, and 150 mm width, making it suitable for tight PCB layouts requiring surface mounting technology.

Key technical features include a maximum random access time of 200 nanoseconds, 16 bits per word, and a long data retention of 200 years, ensuring durability and data integrity over extended periods. Additionally, it complies with automotive automotive standard AEC-Q100, certifying it for use in automotive and other high-reliability industrial applications.

This EEPROM device is widely used in semiconductor memory applications, industrial controls, automotive electronics, and embedded systems requiring non-volatile storage with electrically erasable programmability.

Memory size of 2kB with 256 x 8 bit organisation. Serial-Microwire interface for easy integration in circuit designs. Maximum clock frequency of 2 MHz for efficient data transfers. Operates within a supply voltage range of 2.5V to 5.5V.

Industrial operating temperature range from -40°C to 85°C. Compact 8-pin SOIC surface mount package with dimensions 5mm length and 1.75mm height. Data retention reliability rated for 200 years ensuring long-term stability.

Maximum random access time of 200 ns for fast memory access. Compliant with automotive standard AEC-Q100 for high quality and reliability. Explore more Semiconductor and EEPROM parts from STMicroelectronics at EnvMart for your electronic component needs.
