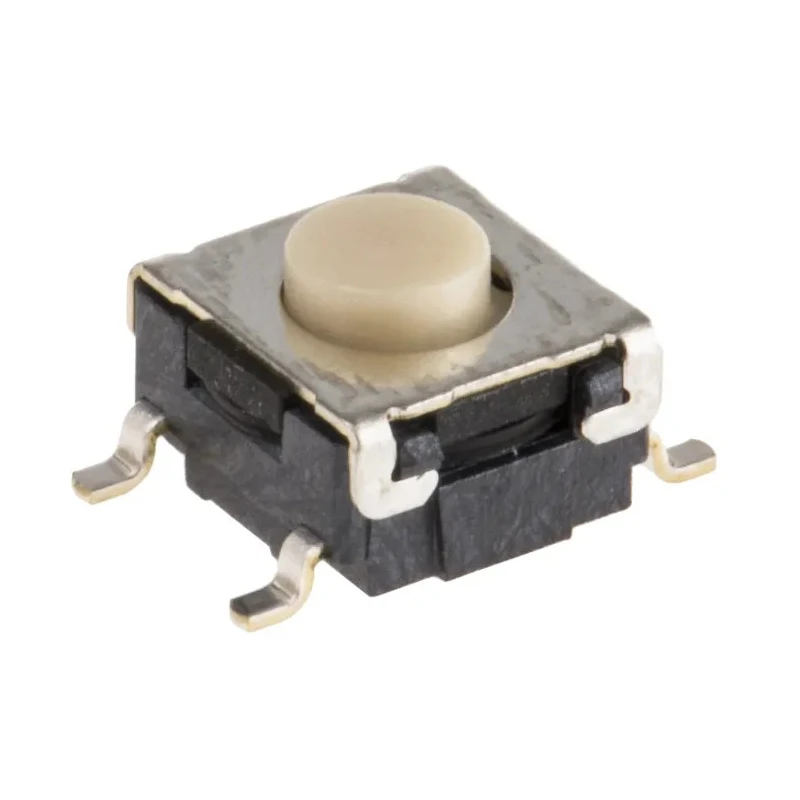

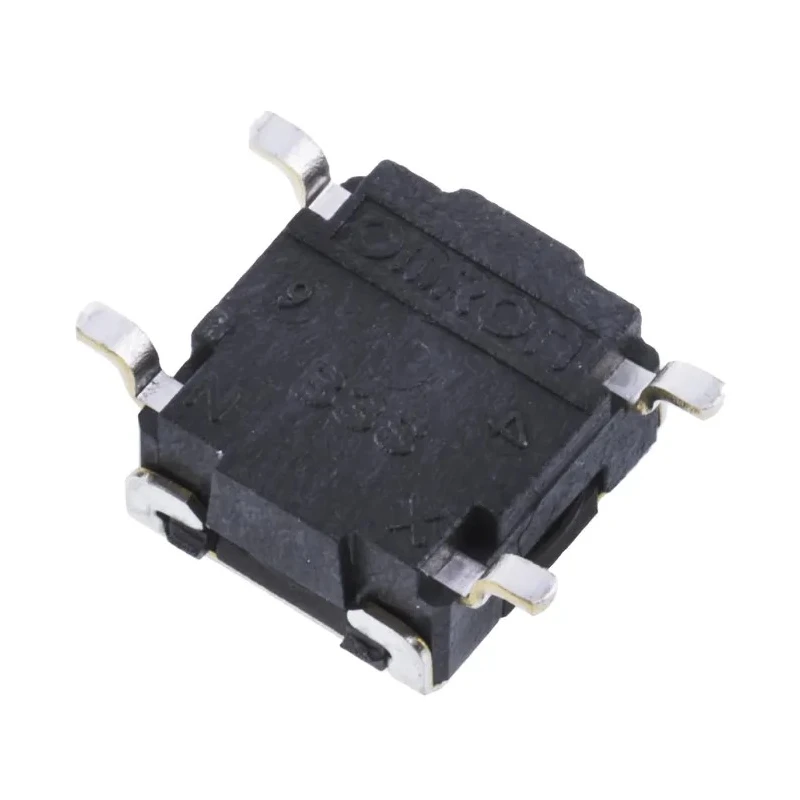

Omron Tactile Switch Button 0.8 mm Actuator Length SPST 50mA 24V DC Through Hole B3S-1000P

Omron B3S-1000P tactile switch button features a 0.8 mm actuator length designed for precise tactile feedback. It is built with a single-pole single-throw (SPST) contact configuration suitable for electrical and automation applications requiring reliable momentary switching at low current and voltage levels.

This switch supports a contact DC voltage of 24V and a switch contact current up to 50mA, making it ideal for control circuit inputs and other low power signaling functions. The button-style actuator and through hole mount type offer ease of installation and mechanical robustness on printed circuit boards.

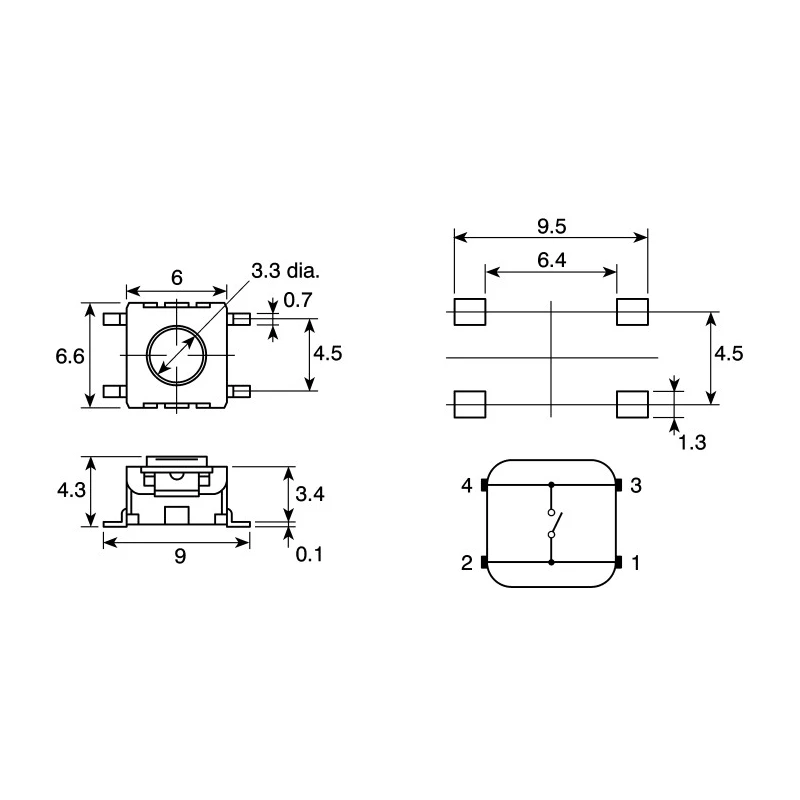

The device has compact dimensions of 6.6 mm in length, 6 mm in width, and 4.3 mm in height, facilitating space-efficient PCB layouts. It has a mechanical life expectancy of 500,000 operations, delivering reliability for extended industrial or commercial use. The operating force of 1.57N ensures tactile feedback suitable for user input devices.

Designed for surface mount terminal type although mounted through hole, this tactile switch complies with RoHS environmental regulations and offers sealed construction for immersion washing after soldering. Suitable reflow soldering parameters include maximum temperature of 235°C for 10 seconds.

Operating temperature range from -25°C to 70°C makes the B3S-1000P adaptable to various environmental conditions commonly found in industrial automation, instrumentation, and consumer electronics. The switch has a dielectric strength exceeding 500Vac for 1 minute and insulation resistance greater than 100MΩ at 250V DC, ensuring electrical safety and durability.

Contact configuration is SPST, providing single-pole single-throw function. Actuator length measures 0.8 mm ensuring precise tactile feedback. Rated for a maximum contact current of 50mA and DC voltage of 24V. Through hole mount type ensures reliable PCB mounting.

Mechanical life is rated for 500,000 operations, ensuring long service life. Operating force required is 1.57N for actuation. Compact dimensions 6.6 mm length, 6 mm width, 4.3 mm height. Complies with RoHS standards for environmental safety.

Designed for surface mount electrical terminal type with button-style actuator. Wide operating temperature range from -25°C to 70°C.

This Omron tactile switch is suitable for use in industrial machines and instruments, automation control panels, electronic input devices, consumer electronics, laboratory instruments, and HVAC control systems. It provides reliable tactile switching performance in compact form factor, meeting rigorous industrial safety and quality standards.
