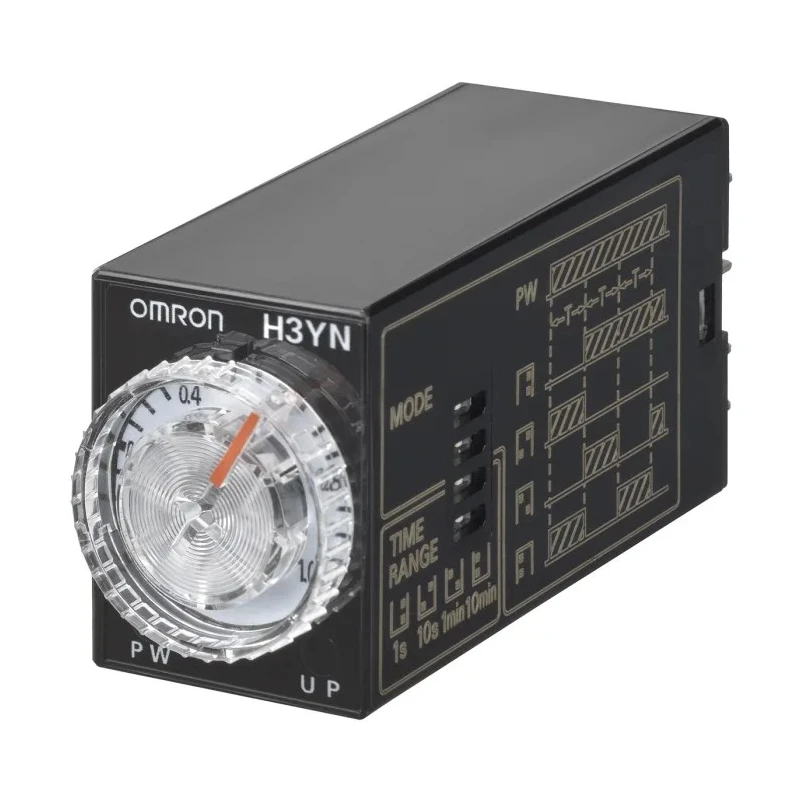

Omron Series DIN Track Solid State Timer, 4-Contact, 125 V DC 12 V AC Supply, 0.1 s to 10 min Time Range, Multifunction H3YN

Free Delivery in India | Lowest Global Shipping Charges

Omron Series DIN Track Solid State Timer, 4-Contact, 125 V DC 12 V AC Supply, 0.1 s to 10 min Time Range, Multifunction H3YN

Name: Omron Series DIN Track Solid State Timer, 4-Contact, 125 V DC 12 V AC Supply, 0.1 s to 10 min Time Range, Multifunction H3YN
Brand: Omron
SKU: 183444
Price: 91.71 USD
Availability: InStock



Category Timer Relays Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	28mm
Function	Timer
Length	21.5mm
Model	H3YN
IP Rating	IP40
Mode	Multifunction
Width	56.6mm
Mount Type	DIN Track
Series	H3YN
Maximum Operating Temperature	55°C
Contact Configuration	4 NO/4 NC
Minimum Operating Temperature	-10°C
Time Range	0.1 s to 10 min
Terminal type	Push-in
Number of Contacts	4
Number of Timer Functions	Multifunction
Switching Voltage	250V ac
Contact Current	3A
Supply DC Voltage	125 V dc
Supply AC Voltage	12V ac

Key Features

Equipped with 4NO/4NC contacts for versatile control functionality.
Push-in terminal connections enable quick and secure wiring without tools.
Built to IP40 protection rating, suitable for enclosed industrial panel environments.
Can function effectively within an ambient temperature range of -10°C to 55°C.
Designed for DIN rail mounting ensuring easy installation and repositioning.
Meets multiple safety and quality standards including EN 61812-1, IEC 60664-1, UL 508, CSA C22.2 No. 14, CCC, and CE.
Switching voltage capability up to 250 V AC supports common mains applications.

Product Description

Omron H3YN Series DIN Track Solid State Timer model H3YN-4-B DC12 provides reliable multifunction timing control with precise adjustment between 0.1 seconds and 10 minutes. This timer relay is specifically designed to be mounted on a DIN rail allowing rapid installation and repositioning in industrial control panels and automation systems.

The device supports up to 4 normally open (NO) and 4 normally closed (NC) contacts, enabling flexible switching configurations useful in a variety of industrial and automation applications. It accepts a dual supply voltage of 125 V DC and 12 V AC, ensuring compatibility with different control circuit designs.

Push-in terminals allow for tool-free, secure connections, enhancing installation speed and reducing wiring errors. The unit operates within a temperature range of -10°C to 55°C which covers most industrial ambient environments. It carries an IP40 protection rating, making it suitable for use inside enclosed panels where dust protection is required but full waterproofing is not.

Equipped with 4 NO/4 NC contacts for diverse switching needs. Provides multifunction timer capabilities with a broad timing range. Push-in terminal type for ease of installation and reliable electrical contact. Compact dimensions (56.6 mm width, 28 mm height, 21.5 mm length) fit tightly into control panels.

Complies with international standards including EN 61812-1, IEC 60664-1, UL 508, CSA C22.2 No. 14, CCC, and CE certification. Supports switching voltages up to 250V AC, suitable for common industrial loads.

This timer relay is ideal for industrial automation applications such as sequencing control in assembly machinery, HVAC control cabinets, conveyor system timing, and timed control of indicator systems and relays. Its reliable multifunction timing and robust safety standards conformance make it a vital component in standalone and integrated control solutions.

Explore the range of Omron timers and relays in the Electronics & Electricals section at EnvMart for high-quality automation components designed for industrial environments.
