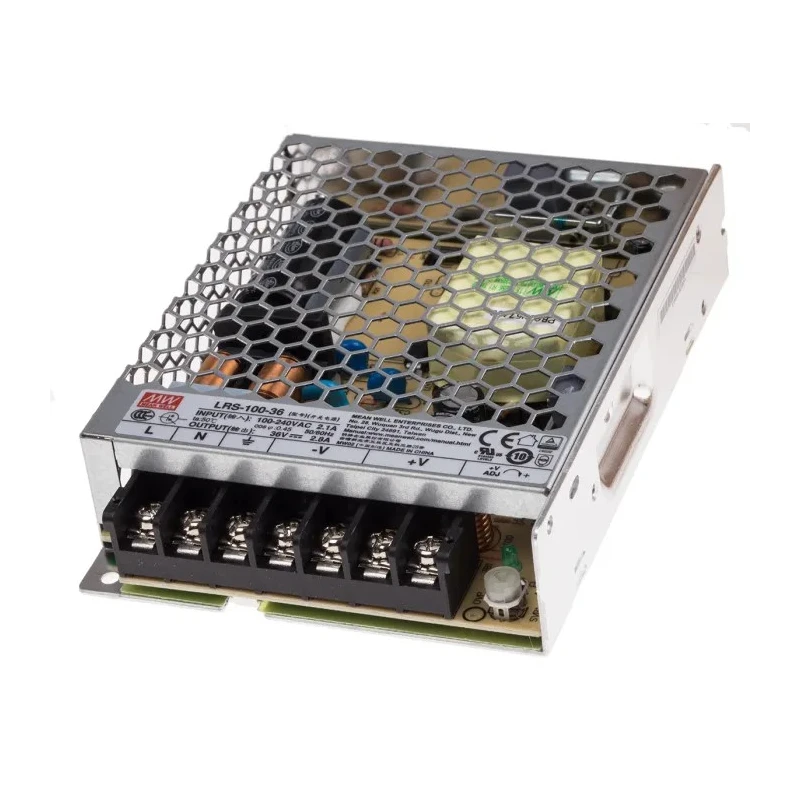

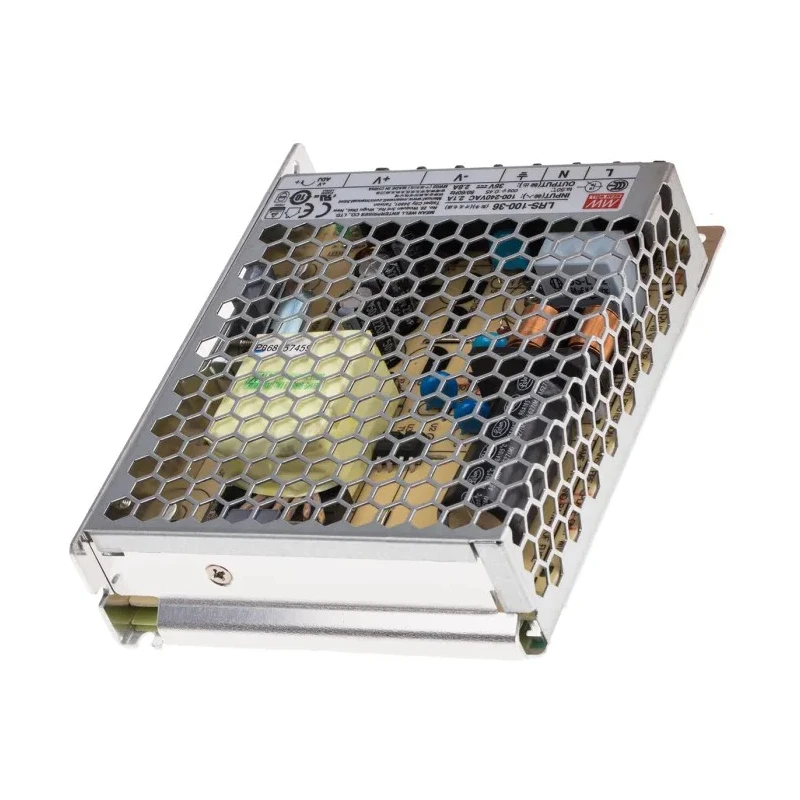

MEAN WELL Switching Power Supply 36 V dc, 100.8 W, Chassis Mount, LRS-100-36

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Switching Power Supply 36 V dc, 100.8 W, Chassis Mount, LRS-100-36

Name: MEAN WELL Switching Power Supply 36 V dc, 100.8 W, Chassis Mount, LRS-100-36
Brand: MEAN WELL
SKU: 183389
Price: 20.22 USD
Availability: InStock



Category Switching Power Supply Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	100.8W
Efficiency	90.5%
Length	129mm
Model	LRS-100-36
Depth	30mm
Gross Weight	340g
Width	97mm
Mount Type	Chassis
Series	LRS-100
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	373, 264V dc
Maximum Output Voltage	36V dc
SMPS Output Current	2.8A
Minimum Input Voltage	85V ac

Key Features

Supports a maximum output voltage of 36 V dc.
Provides a stable output current of 2.8 A.
Features universal AC input with full range.
Equipped with free air convection cooling for silent operation.
Designed with metallic meshing for optimum heat dissipation.
Has a wide operating temperature range from -30°C to 70°C.
Includes 5G vibration resistance for enhanced durability.
High efficiency rated at 90.5% to reduce energy loss.

Product Description

MEAN WELL LRS-100-36 is a single-output Switching Power Supply engineered for reliable industrial and commercial use, delivering 36 V dc output with 100.8 W power capacity. It features a chassis mount design facilitating secure installation in various electrical and automation equipment.

This power supply series offers universal AC input with a wide voltage range and can withstand surge inputs up to 300 V ac for 5 seconds, ensuring operational stability in fluctuating power conditions. Its design incorporates metallic meshing and natural air convection cooling to maintain optimal thermal performance without the need for fans, thereby ensuring silent and maintenance-free operation.

With an efficiency rating of 90.5%, the LRS-100-36 minimizes energy consumption and reduces heat generation. The device supports a full operating temperature range from -30°C to 70°C, making it suitable for harsh environmental conditions. Additionally, it includes 5G vibration resistance, making it durable for industrial machinery and equipment use.

Key applications include industrial automation, control machinery, mechanical and electrical equipment, and household appliance power supplies. It is certified under multiple international standards including EAC TP TC 00, CSA C22.2 No. 62368-1, AS/NZS62368.1, and UL 62368-1, ensuring compliance with global safety and quality requirements.

Supports a maximum output voltage of 36 V dc. Provides a stable output current of 2.8 A. Features universal AC input with full range. Equipped with free air convection cooling for silent operation. Designed with metallic meshing for optimum heat dissipation.

Has a wide operating temperature range from -30°C to 70°C. Includes 5G vibration resistance for enhanced durability. High efficiency rated at 90.5% to reduce energy loss. Complies with multiple international safety and performance standards.

Explore similar high quality switching power supplies and components at EnvMart for diverse electronic applications.
