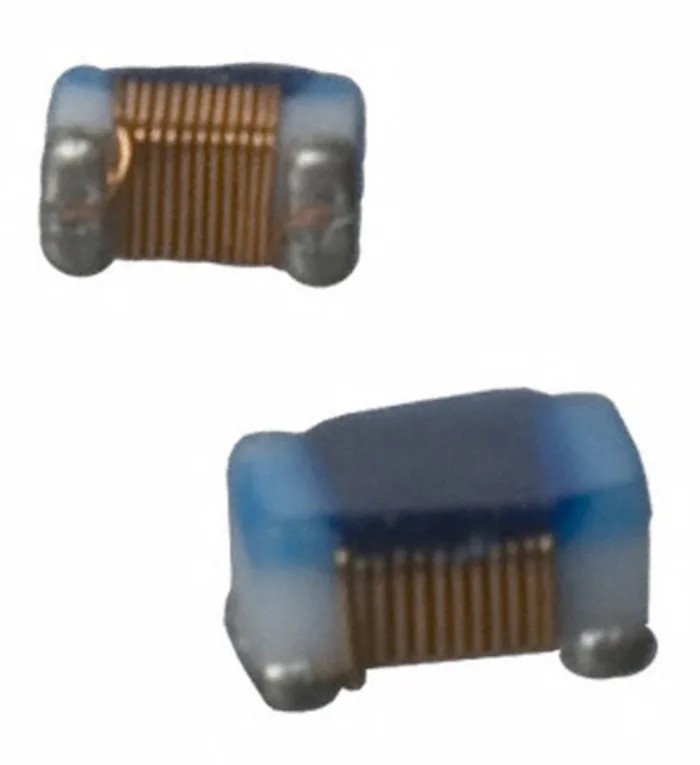

Murata Wirewound Surface Mount Inductor 3.3 nH ±0.2 nH 2 A Idc Non-Magnetic Core 1005 Case LQW15AN3N3C80D
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQW15AN3N3C80D |
| Depth | 0.6mm |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Non-Magnetic Core |
| Inductance | 3.3nH |
| Standards/Approvals | RoHS |
| Package/Case | 1005 |
| Maximum DC Current | 2A |
| Pin Count | 2 |
| Maximum DC Resistance | 30mΩ |
| Inductance Tolerance | ±0.2 nH |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 14GHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
Key Features
- Features a compact 1005 package size with 1 mm length and 0.6 mm depth.
- Constructed with wirewound technology for high Q factor of 30.
- Non-magnetic core supports low DC resistance of 30 mΩ.
- Operates reliably between -55°C to 125°C temperature range.
- Designed for surface mounting with solder termination style.
- Maximum self-resonant frequency is 14 GHz, ideal for high frequency applications.
- RoHS compliant ensuring environmental safety.
- Suitable for antenna matching and choke circuits in electronic devices.
Product Description
Murata LQW15AN3N3C80D wirewound surface mount inductor offers exceptional performance with a non-magnetic core, inductance of 3.3 nH ±0.2 nH, and supports a maximum DC current of 2 A. This inductor is tailored for RF applications where a high quality factor and low DC resistance are critical.
The inductor is housed in a compact 1005 package with dimensions of 1 mm length, 0.6 mm depth, and 0.5 mm height, making it ideal for space-constrained electronic circuit boards. Wirewound construction delivers a quality factor of 30, ensuring efficient signal integrity and attenuation characteristics within antenna matching networks.
Designed to withstand operating temperatures from -55°C to 125°C, this component maintains stability across harsh environmental conditions. The solder termination style facilitates secure surface mounting, enhancing production efficiency in automated assembly lines.
Its maximum self-resonant frequency of 14 GHz makes it suitable for high-frequency signal applications including RF filters and choke circuits where impedance must be tightly controlled. The non-magnetic core reduces unwanted magnetic losses, improving overall inductor efficiency and performance.
This surface mount inductor complies with RoHS standards, promoting environmentally friendly manufacturing processes. The product is manufactured in Japan, reflecting premium build quality and long-term reliability.
Typical industrial uses include applications in antenna matching, RF circuits, telecommunications equipment, consumer electronics, and automotive electronics where precise inductance and low resistance are required.
Compact 1005 case size suitable for automated PCB assembly. Wirewound construction for enhanced Q factor and reliability. High current rating supports up to 2 A DC load. Non-magnetic core reduces core losses for superior performance.
Wide operating temperature range enables use in demanding environments. High self-resonant frequency supports RF applications up to 14 GHz. RoHS compliant ensuring environmental and user safety. Manufactured in Japan ensuring high quality assurance.
Explore more high-performance Surface Mount Inductors and related electronic components on EnvMart to meet your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance of 3.3 nH with a tolerance of ±0.2 nH.
The maximum DC current supported by this inductor is 2 A.
It operates reliably within a temperature range of -55°C to 125°C.
The maximum self-resonant frequency is 14 GHz, making it suitable for high-frequency applications.
The dimensions of the 1005 package are 1 mm in length, 0.6 mm in depth, and 0.5 mm in height.
It features a non-magnetic core, which helps reduce unwanted magnetic losses.
This inductor has a minimum quality factor of 30, indicating efficient signal integrity.
The termination style is solder, designed for secure surface mounting.
Yes, this inductor is RoHS compliant, ensuring it meets environmental safety standards.
It is suitable for applications such as antenna matching and choke circuits in RF and telecommunications equipment.
The maximum DC resistance is 30 mΩ, which contributes to its efficiency.
This inductor is manufactured in Japan, reflecting its high build quality.
