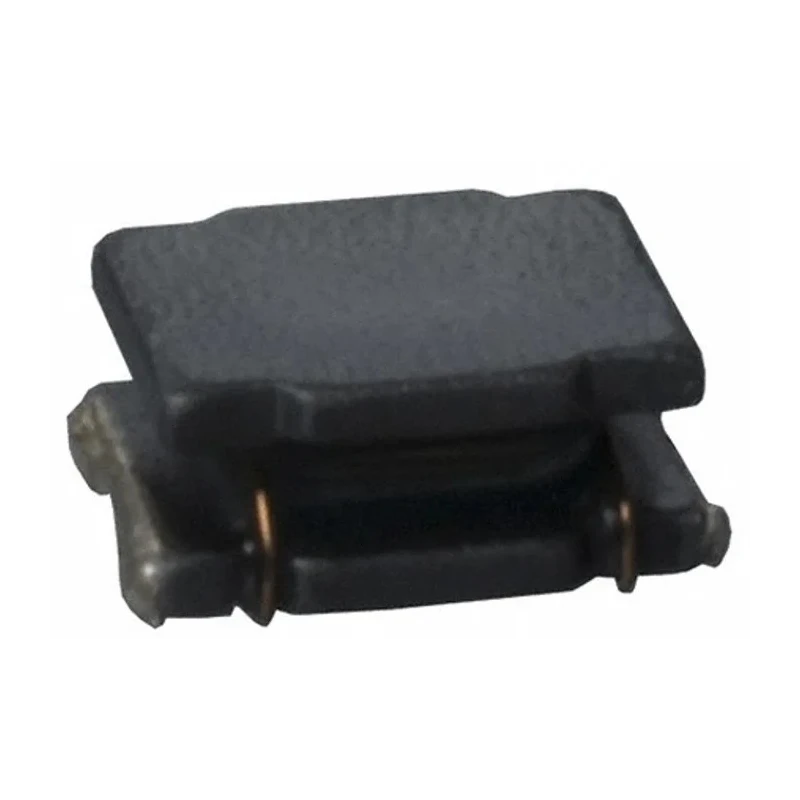

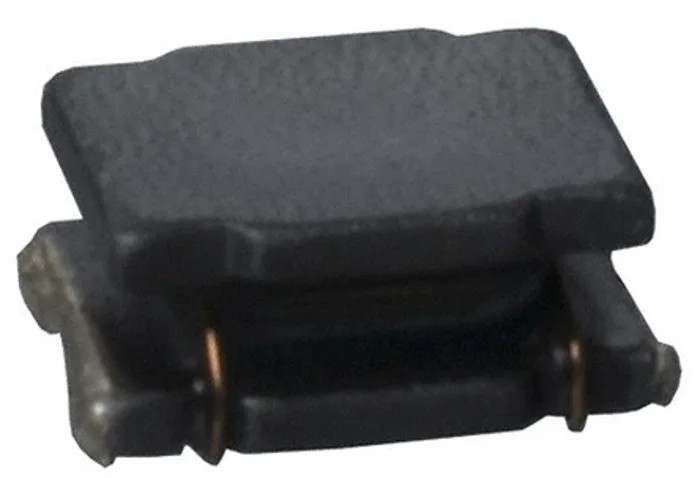

Murata 5050 Shielded Wirewound Surface Mount Inductor with Ferrite Core 0.47 μH ±30% 7.7A Idc LQH5BPNR47NT0L

Murata LQH5BPNR47NT0L is a 5050 size shielded wirewound surface mount inductor with a ferrite core, rated at 0.47 μH ±30% inductance and capable of handling a maximum DC current of 7.7 A. This surface mount device is designed with a robust wirewound construction, where the copper wire is wound around the ferrite core, enhancing inductance and current capacity.

The inductor’s shielded design reduces electromagnetic interference, ensuring signal integrity in sensitive electronic circuits. It features low DC resistance of 12 mΩ, minimizing power loss and heat generation, thereby improving efficiency.

Constructed with solder termination style and molded coating, the device offers mechanical strength and durability suitable for demanding environments. It operates reliably across a wide temperature range from -40°C up to 125°C, making it adaptable for automotive, industrial, and consumer electronics use cases.

With a maximum self-resonant frequency of 220 MHz, the LQH series inductor is ideal for high-frequency power supply booster circuits found in digital cameras, mobile phones, TVs, and gaming machines. The inductor is packaged in an embossed tape for easy automated assembly in manufacturing.

This inductor complies with RoHS standards, ensuring environmental friendliness. The 5050 package size measures 5 mm length, 2 mm height, and 5 mm depth, making it compact for PCB layouts. Its wirewound construction ensures stable inductance values even under high current loads.

The shielded ferrite core reduces radiated emissions enhancing performance in noise-sensitive applications. Its robust design makes it suitable for digital, automotive, and industrial electronics. Explore more Murata Surface Mount Inductors and electronic components on EnvMart for your industrial and laboratory needs.
