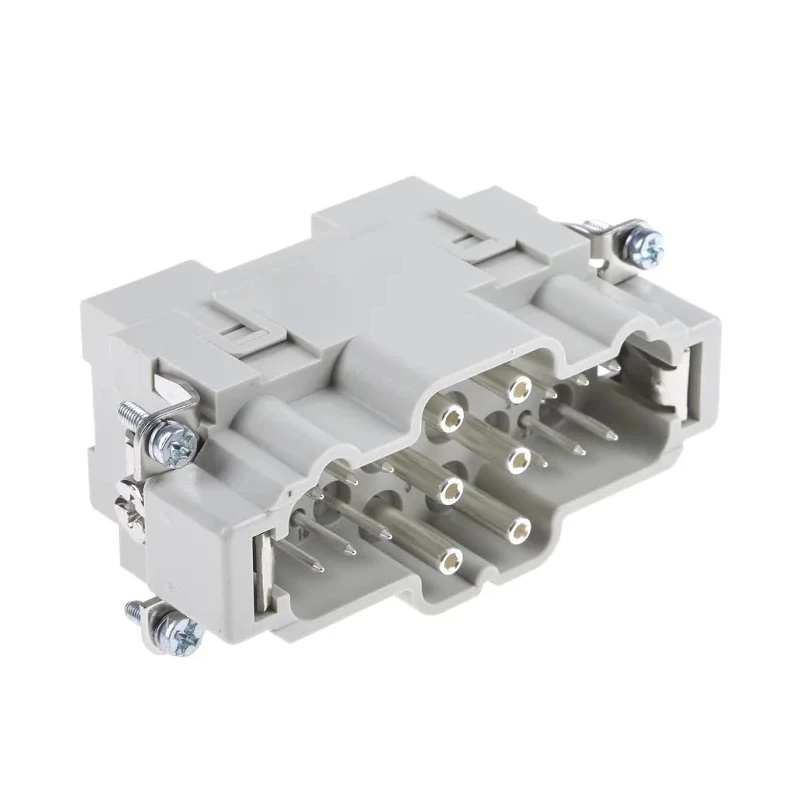

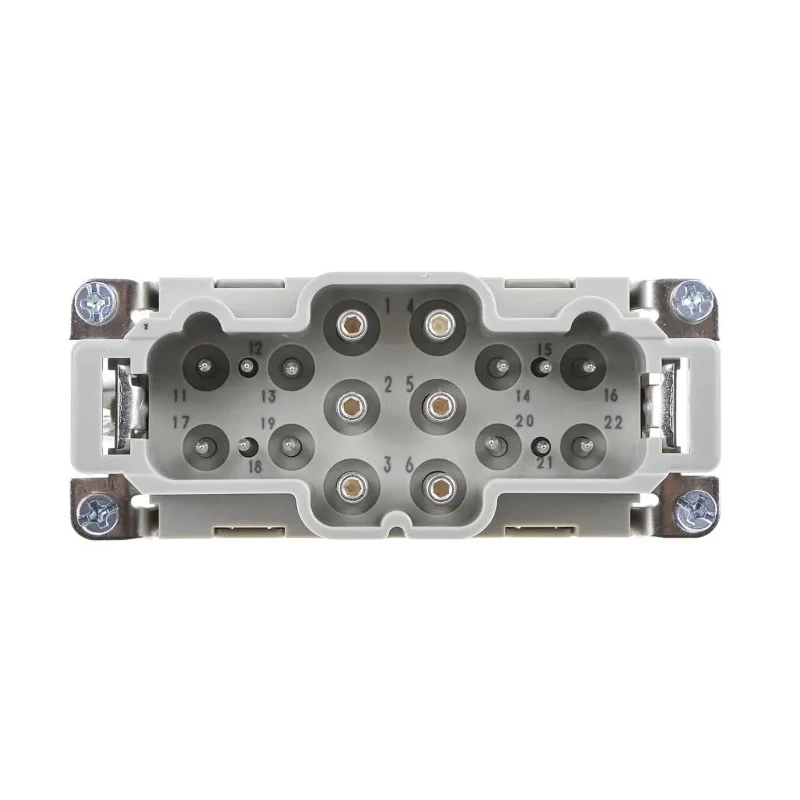

HARTING Heavy Duty Power Connector Insert 40A, Han K Series Male, 19 Contacts 09380182601

HARTING 09380182601 Heavy Duty Power Connector Insert offers a robust 40A current capacity combined with 400 to 690V voltage rating. It is engineered for industrial and automation power systems requiring reliable cable-mounted power connections. The Han K series male connector insert includes 19 contacts arranged in two rows providing high connection density, making it well-suited for complex power and auxiliary connections within compact footprints.

Contacts are constructed from a durable copper alloy and finished with silver plating to ensure excellent conductivity and reduced contact resistance under high current conditions. The connector is housed to ensure IP65 ingress protection, shielding against dust and water jets, thereby enabling deployment in demanding factory and plant environments.

This product supports cable conductor sizes from 2.5 mm² up to 8 mm², offering versatility for various cable gauges suited to different current requirements. The cable mounting type with straight orientation facilitates inline setup and quick deployment of power connections.

Conforming to IEC 60664-1 insulation coordination standards, this connector ensures compliance with global industrial safety protocols. It is ideal for applications such as power feeds to industrial drives and motors, power distribution panels in factory automation, sealed heavy-duty enclosure connections, and retrofitting high-current cable assemblies.

Users should note that this series uses specific contact extraction tools for maintenance and servicing. The product is supplied in new condition, suitable for incorporation into electrical systems requiring reliable, rugged power connectors.

Supports 40A current rating for high power distribution. Operates at 400 to 690V voltage suitable for industrial applications. Features 19 contacts arranged in two rows for increased connection density. Copper alloy contacts plated with silver reduce resistance and enhance conductivity.

Built with IP65 ingress protection for dust and water resistance. Designed for cable mounting with straight orientation for inline use. Compatible with conductor wire sizes between 2.5 mm² and 8 mm². Complies with IEC 60664-1 insulation coordination standards.

Ideal for power distribution in factory automation and heavy-duty enclosures. Suitable for industrial drives, motors, and machinery interconnections. Explore more power connectors and industrial electrical components at EnvMart.
