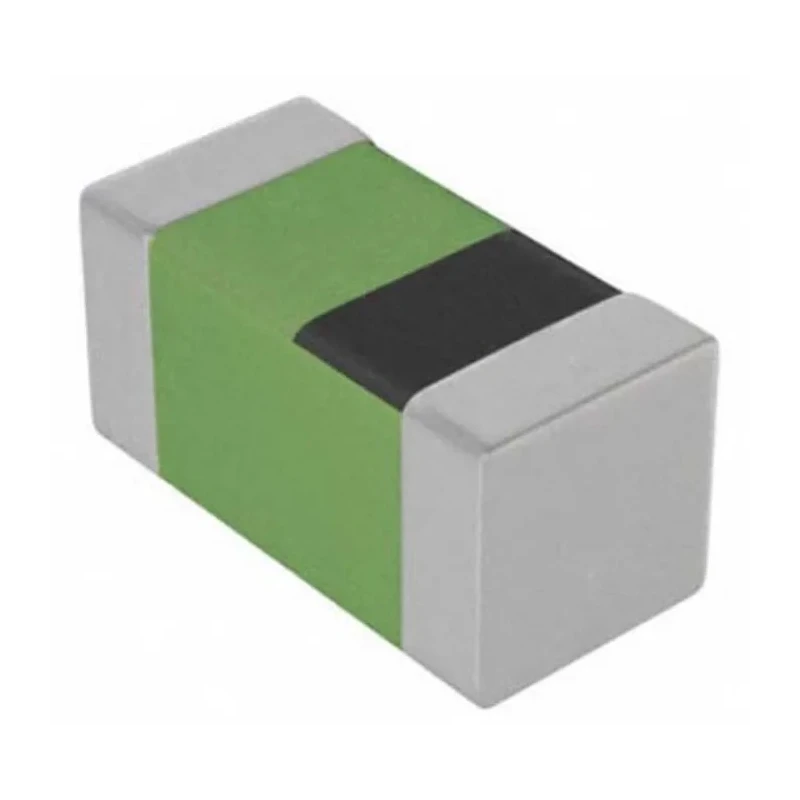

Murata 0402 Shielded Multilayer Surface Mount Inductor 1.6 nH ±0.3 nH Tolerance 300 mA Idc Q:8 LQG15HN

Murata LQG15HN 0402 Shielded Multilayer Surface Mount Inductor is a high-frequency chip inductor designed with a multilayer construction that balances rated current, size, and inductance tolerance effectively. It delivers an inductance of 1.6 nH with a tight tolerance of ±0.3 nH and supports a maximum DC current of 300 mA, making it suitable for compact and demanding electronic circuits.

This inductor features a shielded design that minimizes electromagnetic interference, enhancing performance in sensitive RF circuit applications such as chokes, WLAN networks, and mobile communication device resonance circuits. The small 0402 package measures 1 mm length with a height and depth of 0.5 mm, making it ideal for high-density PCB layouts.

Operating reliably over a temperature range from -55°C to 125°C, the LQG15HN series maintains stability in diverse environments. The component has a low maximum DC resistance of 100 mΩ which reduces power loss and heat generation during operation. Additionally, it offers a high maximum self-resonant frequency of 6000 MHz and a minimum quality factor of 8 ensuring efficiency in high-frequency circuits.

Supplied in paper tape packaging, this inductor streamlines automated insertion into assembly machinery, supporting mass manufacturing workflows. The product is RoHS compliant and molded with multilayer inductor construction inside a monolithic structure. Its country of origin is Japan, reflecting stringent quality controls and manufacturing expertise.

Industrial uses include electronic component assemblies for telecommunications, RF modules, and compact electronic device manufacturing. Ideal in laboratory, telecommunications, manufacturing, and electronics engineering applications requiring consistent inductance in miniaturized formats.

Constructed with multilayer technology for a compact and reliable design. Features shielded construction to minimize electromagnetic interference. Small 0402 package size enables usage in compact PCB designs. Has a maximum DC resistance of 100 mΩ ensuring low power losses.

Operates reliably between -55°C and 125°C for diverse applications. High maximum self-resonant frequency of 6000 MHz ideal for high-frequency circuits. Minimum quality factor of 8 ensures efficient operation in RF applications.

Supplied in paper tape packaging ready for automated assembly processes. Originates from Japan, guaranteeing quality manufacturing standards. Explore the extensive selection of Surface Mount Inductors at EnvMart to meet your electronic component needs with trusted quality and performance.
