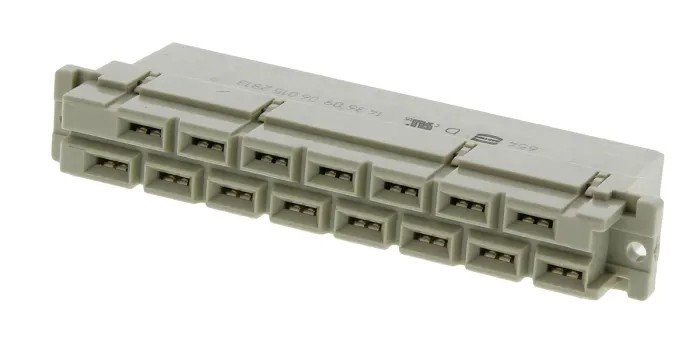

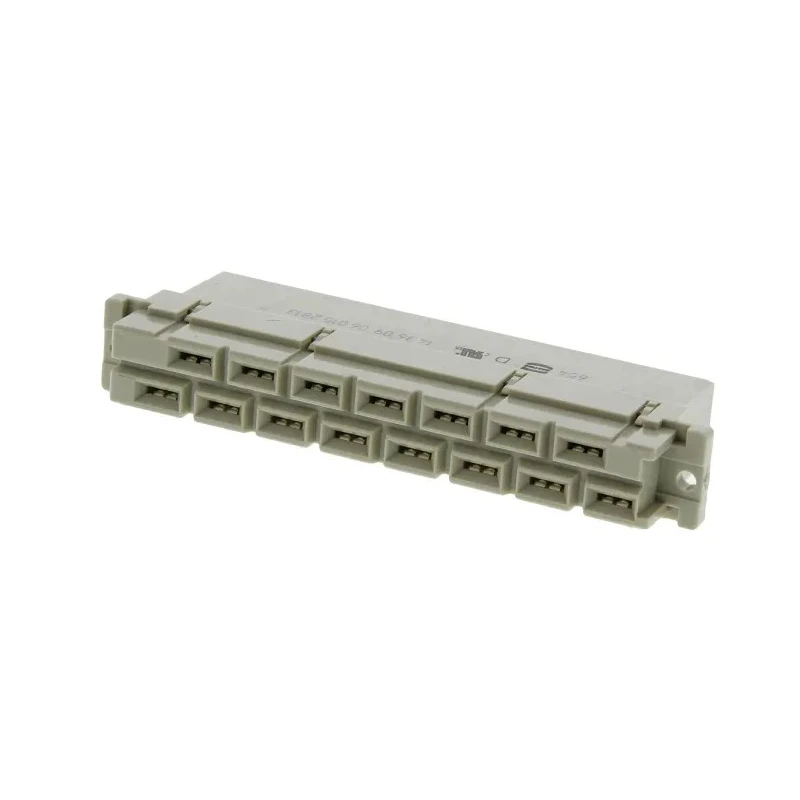

HARTING DIN 41612 Connector 15 Way 6.5 mm Pitch, Type H15, 2 Row Female, Straight Through Hole, Solder, Class 09060152813

The HARTING 09060152813 DIN 41612 Type H15 Connector is engineered for high-reliability signal and power interface in demanding industrial, railway, and automation applications. Featuring 15 silver-plated contacts in a dual-row, straight, female configuration with a 6.5 mm pitch, this connector delivers robust performance and durability. Its through-hole mount and solder termination are ideal for secure PCB integration, ensuring steady electrical contact even in vibration-prone environments.

Constructed from fibreglass reinforced thermoplastic, the housing offers high mechanical strength and thermal stability. The copper alloy contacts, plated with silver, provide excellent conductivity and resistance to corrosion. Designed for high current applications, the connector supports up to 15A across all contacts, making it suitable for power supply units, control cards, PSUs, and railway transportation systems requiring reliable backplane connections.

With a wide operating temperature range from -55°C to 125°C, the HARTING DIN 41612 Connector meets the demands of harsh industrial settings. The Class C1 soldering standard and H15 subtype designation signify this connector's capability for high-current handling and long service life. Standards compliance and robust insulation further extend its suitability for safety-critical electronics.

This connector simplifies the assembly process via straight orientation and through-hole mounting, while cage-clamp and Faston alternatives in the wider product range enable tailored configurations. Applications include industrial automation panels, railway traction equipment, process control systems, power management racks, and laboratory instrumentation requiring structured interconnects.

The product is widely utilized in industries such as railway engineering, factory automation, power distribution, and high-reliability control electronics. Each connector is designed to meet both signaling and power transmission needs while minimizing insertion loss and contact resistance, with a maximum contact resistance of 8mΩ. Its housing resists flammability and mechanical stress in operational environments, ensuring protection against electrical and mechanical failure.
