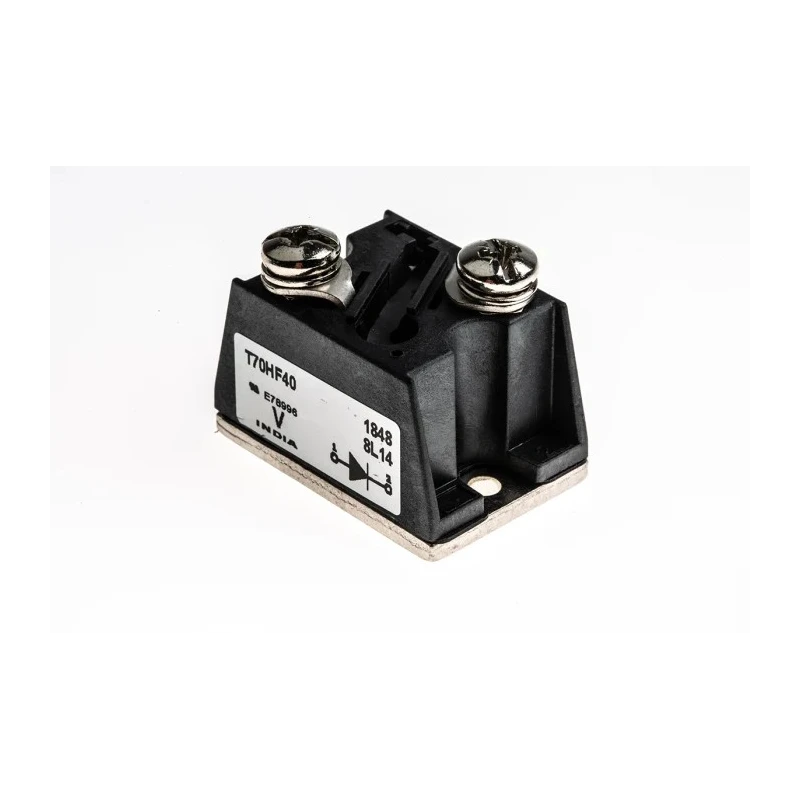

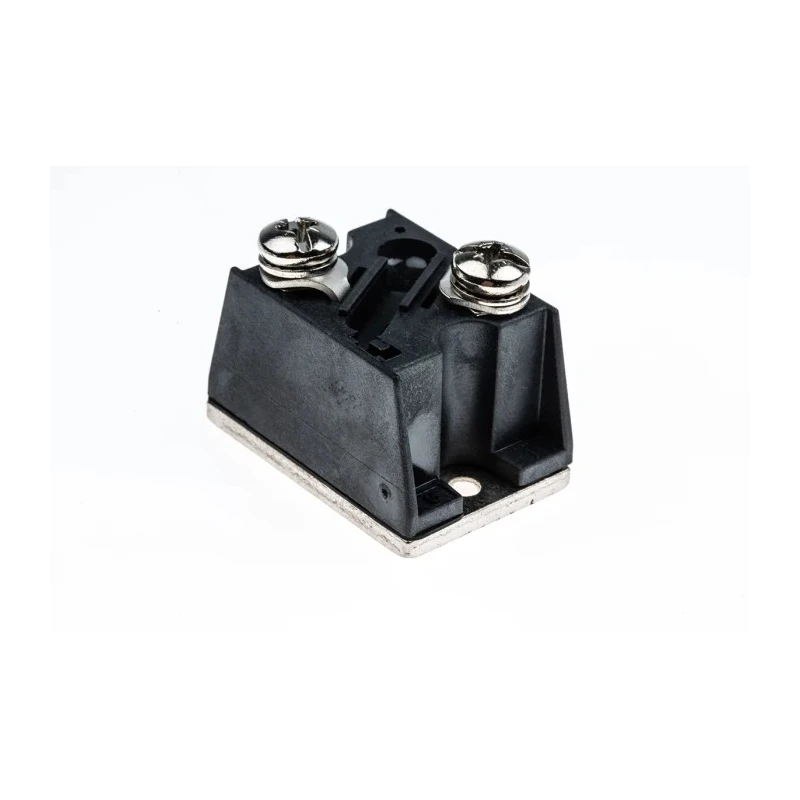

Vishay 400 V 70 A Diode Switching 2-Pin T-Module VS-T70HF40
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 25mm |
| Brand | Vishay |
| Height | 25mm |
| Length | 41mm |
| Model | VS-T70HF40 |
| Width | 27mm |
| Mount Type | Panel |
| Series | VS-T70HF |
| Maximum Operating Temperature | 150°C |
| Package Type | T-Module |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 70A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 15mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.3kA |
| Maximum Forward Voltage Vf | 1.35V |
| Peak Reverse Recovery Time trr | 500ns |
| Vishay 1 kV 85 A Diode Switching 2-Pin T-ModuleBrand | Vishay |
Key Features
- Electrically isolated base plate ensures safety and ease of assembly.
- Compact T-module package designed for panel mount applications.
- High surge current capability of 1.3 kA for transient conditions.
- Maximum forward voltage drop of 1.35 V optimizes efficiency.
- Operation temperature range from -40°C to 150°C suitable for industrial environments.
- Peak reverse recovery time of 500 ns enables fast switching performance.
- RoHS compliant and RoHS directive 2002/95/EC certified.
- Ideal for power supplies, battery chargers, welders, and motor controls.
Product Description
Vishay VS-T70HF40 is a high-performance diode switching 2-pin T-module designed for robust industrial and commercial electronic applications. This device supports a maximum continuous forward current of 70 amperes with a peak reverse repetitive voltage up to 400 volts. Its panel mount T-module construction provides an electrically isolated base plate, allowing for common heatsink usage and simplified mechanical designs.
The diode offers a maximum forward voltage of 1.35 volts and supports high surge currents up to 1.3 kiloamperes for transient events. With a peak reverse recovery time of 500 nanoseconds, the module ensures rapid switching suitable for power supply units, welders, battery chargers, and motor control circuits among other industrial current rectifications.
The module measures 41 mm in length, 27 mm in width, and 25 mm in height, providing a compact form factor that facilitates ease of mechanical assembly. Operating temperature ranges from -40°C to 150°C, confirming its durability in harsh environmental conditions. RoHS compliance and electrical isolation support reliability and industry standards.
The Vishay VS-T70HF40 T-module is manufactured in India and is certified RoHS-compliant, ensuring environmental and safety standards compliance. This diode type is part of the Vishay VS-T series that includes devices rated up to 1200 VRRM and featuring large creepage distances and high surge capabilities.
Electrically isolated base plate for safety and assembly ease. Compliant with RoHS directive 2002/95/EC. High surge current capability supporting transient surges up to 1.3 kA. Maximum operating temperature of 150°C suitable for industrial usage.
Compact T-module panel mount design measuring 41x27x25 mm. Peak reverse recovery time of 500 ns enabling fast switching. Single diode configuration suitable for power rectification. Supports applications like power supplies, battery chargers, and motor controls.
Manufactured in India ensuring product quality and origin transparency. Explore EnvMart for a wide selection of semiconductor switching diodes and rectifiers to meet diverse industrial and electronics manufacturing requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 70 amperes.
This model has a peak reverse repetitive voltage rating of 400 volts.
The maximum forward voltage drop for this diode is 1.35 volts.
The operating temperature range of this diode is from -40°C to 150°C.
The peak reverse recovery time for this model is 500 nanoseconds, enabling fast switching performance.
This diode supports panel mount installation due to its T-module construction.
The dimensions of this diode are 41 mm in length, 27 mm in width, and 25 mm in height.
It has a high surge current capability of 1.3 kiloamperes for transient conditions.
Yes, this diode is RoHS compliant and certified according to the RoHS directive 2002/95/EC.
This model is suitable for applications such as power supplies, battery chargers, welders, and motor controls.
This diode features a single diode configuration, which is suitable for power rectification.
This diode is manufactured in India, ensuring product quality and origin transparency.
