| Country of Origin | India |
|---|---|
| Brand | Murata |
| Material | Ferrite |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | BLM18PG330SH1D |
| Depth | 0.8mm |
| Packaging | Taping |
| Mount Type | Solder |
| Current Rating | 3A |
| Series | BLM18H |
| Maximum Operating Temperature | 125°C |
| Package Type | 0603 |
| Sub Type | Chip Bead |
| Minimum Operating Temperature | -55°C |
| Maximum DC Resistance | 0.025Ω |
| Impedance at 100 MHz | 33Ω |
| Automotive Standard | AEC-Q200 |

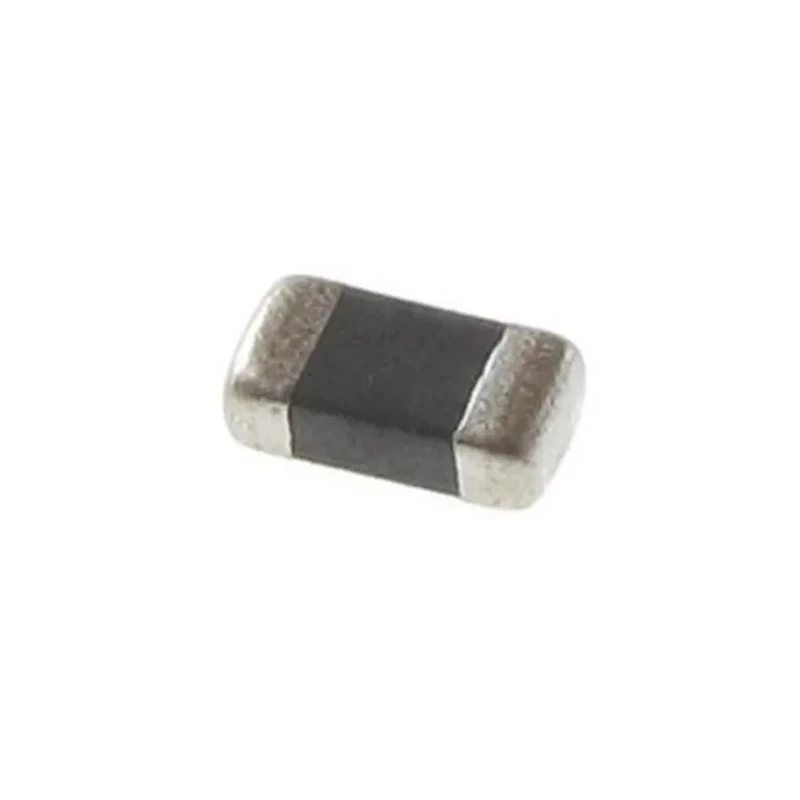

Murata BLM18PG330SH1D is a ferrite bead with 0.8 mm height and solder mount type, packaged as 0603 chip bead, providing a 33 Ω impedance at 100 MHz. This ferrite bead is specifically designed for automotive, powertrain, and safety applications, delivering effective EMI noise filtering and signal integrity.
The BLM18PG330SH1D offers a current rating of 3 amperes and low DC resistance (0.025 Ω), making it suitable for high current circuits. It operates in a wide temperature range from -55°C minimum up to 125°C maximum, meeting and exceeding automotive-grade environmental standards such as AEC-Q200, UL-94, MIL-STD-202, J-STD-002, and ISO-7637-2.
This chip bead uses ferrite material with nickel barrier external electrodes to enhance solder heat resistance and mechanical reliability. Its compact dimensions of 1.6 mm length, 0.8 mm height, and 0.8 mm depth make it ideal for surface mount technology (SMT) applications, helping reduce electromagnetic interference without resonance or signal distortion.
The BLM18PG series from Murata does not require a ground connection, which is particularly valuable in circuits with unstable ground lines. This design also enables efficient noise attenuation while maintaining circuit performance.
Provides 33 Ω impedance at 100 MHz frequency. Has a current rating of 3 amperes suited for high current circuits. Wide operating temperature range from -55°C to 125°C for automotive reliability. Compliance with AEC-Q200 automotive standard and other industrial certifications.
Compact 0603 SMD package with nickel barrier external electrodes. Low DC resistance of 0.025 Ω minimizes power loss during operation. Ferrite material construction provides effective EMI filtering. Designed to maintain signal waveform integrity without resonance.
Solder mount type ideal for PCB surface mounting. Suitable for automotive, powertrain, safety, industrial and EMI filter applications.
Choose Murata BLM18PG330SH1D ferrite bead for enhanced EMI protection in demanding industrial and automotive electronic circuits. Discover more Ferrite Beads and electronic components at EnvMart.
