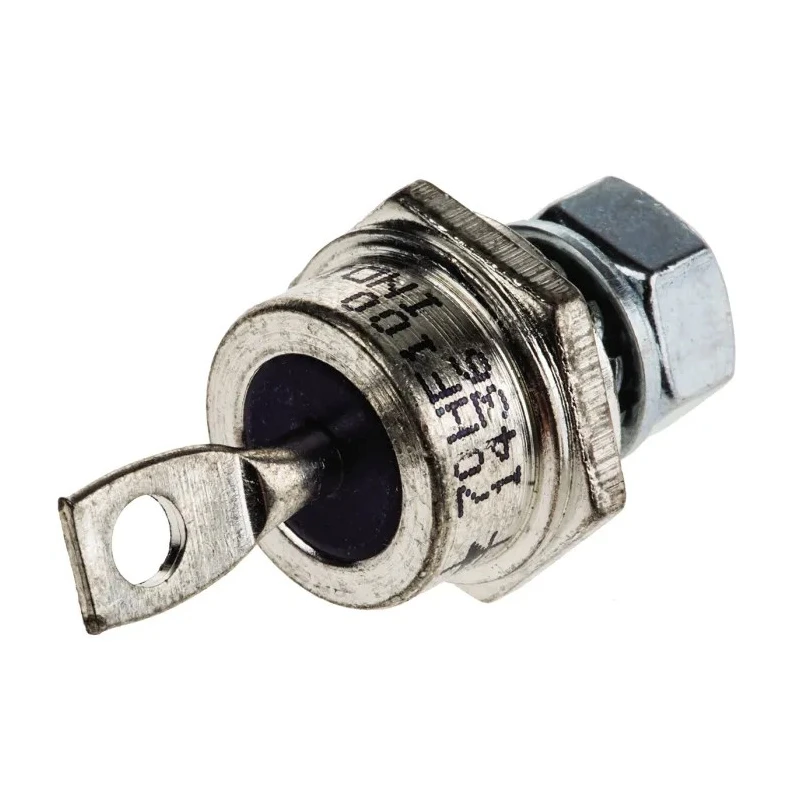

Vishay Standard Recovery Switching Diode 1 kV 70 A 2-Pin DO-203AB VS-70HF100
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.4mm |
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.08mm |
| Model | VS-70HF100 |
| Width | 17.4mm |
| Mount Type | Screw |
| Series | VS-70HF |
| Maximum Operating Temperature | 180°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 70A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 9mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.3kA |
| Maximum Forward Voltage Vf | 1.35V |
| Vishay 800 V 70 A Diode Switching 2-Pin DO-203ABBrand | Vishay |
Key Features
- This diode supports a maximum continuous forward current of 70 A.
- It features a peak reverse repetitive voltage rating of 1 kV to ensure reliable operation in switching environments.
- The diode has a stud cathode configuration and comes in an industry-standard DO-203AB package.
- Maximum forward voltage drop is 1.35 V, optimizing power loss during conduction.
- Peak reverse current is low at 9 mA, improving efficiency.
- Designed to operate across a wide temperature range from -65°C to 180°C.
- Its robust construction supports a peak non-repetitive forward surge current of 1.3 kA.
- The diode complies with standard recovery rectifier requirements for diverse industrial applications.
Product Description
Vishay VS-70HF100 is a high-performance Standard Recovery Switching Diode designed for power rectification and switching applications. Rated for a maximum continuous forward current of 70 A and a peak reverse repetitive voltage of 1 kV, it ensures reliable operation in demanding industrial electronic systems.
Constructed in a rugged DO-203AB package with a stud cathode configuration, this diode minimizes forward voltage drop to 1.35 V and maintains peak reverse current at just 9 mA, contributing to high efficiency and thermal stability.
Operating temperature ranges from -65°C to 180°C allow the diode to perform reliably under harsh environmental conditions. It supports peak non-repetitive forward surge currents up to 1.3 kA, accommodating transient loads in power circuits.
This diode features dimensions of 22.9 mm height, 20.08 mm length, and 17.4 mm width and diameter, fitting standard industrial design requirements.
The VS-70HF100 diode is suitable for industrial, power management, electronic manufacturing, and high-voltage switching systems where durable and efficient rectification is critical.
Maximum continuous forward current of 70 A ensures robust current handling capacity. Peak reverse repetitive voltage of 1 kV enables high voltage blocking capability. Low forward voltage reduces power dissipation in circuits.
Wide operating temperature range supports various industrial environments. Compact DO-203AB package facilitates integration in standard assemblies. For reliable semiconductor switching diode solutions, explore the Vishay series on EnvMart, your source for industrial-grade electronics components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the VS-70HF100 diode is 70 A.
This model has a peak reverse repetitive voltage rating of 1 kV.
The diode has a height of 22.9 mm, a length of 20.08 mm, and a width of 17.4 mm.
The maximum forward voltage drop is 1.35 V.
It supports a peak non-repetitive forward surge current of 1.3 kA.
The diode operates within a temperature range of -65°C to 180°C.
This model comes in a DO-203AB package type.
The diode features a stud cathode configuration.
The peak reverse current is 9 mA.
The diode uses a screw mount type.
This diode belongs to the VS-70HF series.
It is suitable for industrial, power management, electronic manufacturing, and high-voltage switching systems.
