Chauvin Arnoux CA 5005 Handheld Multimeter 600V DC Analog Multimeter with MN89 Mini Clamp P01196523E

Free Delivery in India | Lowest Global Shipping Charges

Chauvin Arnoux CA 5005 Handheld Multimeter 600V DC Analog Multimeter with MN89 Mini Clamp P01196523E

Name: Chauvin Arnoux CA 5005 Handheld Multimeter 600V DC Analog Multimeter with MN89 Mini Clamp P01196523E
Brand: Chauvin Arnoux
SKU: 182797
Price: 756.78 USD
Availability: InStock



Category Multimeter Brand Chauvin Arnoux Condition New

Specifications

Country of Origin	France
Brand	Chauvin Arnoux
Height	56mm
Length	160mm
Model	P01196523E
Gross Weight	500g
Width	105mm
AC Current	5 ranges : 3 A / … / 240 A with MN89 current clamp
Resistance	1 MΩ
DC Current	6 ranges : 50 μA / … / 10 A
DC Current Accuracy	±2.5 %
AC Voltage	5 ranges : 10 V / … / 600 V
DC Voltage	8 ranges : 100 mV / … / 600 V
Standards/Approvals	IEC 61010-1/IEC 61326-1
Multimeter Type	Handheld
Functions Measured	AC Current, AC Voltage, DC Current, DC Voltage, Resistance
Maximum Resistance Measurement	1mΩ
Maximum DC Voltage Measurement	600V dc
AA alkaline batteries (stock no.	591-225) also available separately from the catalogue
dB scale	0 to 22 dB

Key Features

Includes MN89 mini clamp for direct AC current measurements up to 240 A.
Measures AC current, AC voltage, DC current, DC voltage, and resistance.
Offers 8 DC voltage ranges up to 600 V and 5 AC voltage ranges up to 600 V.
Provides accuracy of ±1.5 % for DC voltage and ±2.5 % for AC voltage and current measurements.
Equipped with anti-parallax mirror for precise analog readings.
Supplied with silicone leads, safety test probes, and a 9 V battery.
Complies with IEC 61010-1 and IEC 61326-1 safety standards.
Ideal for industrial, laboratory, construction, and HVAC electrical measurements.

Product Description

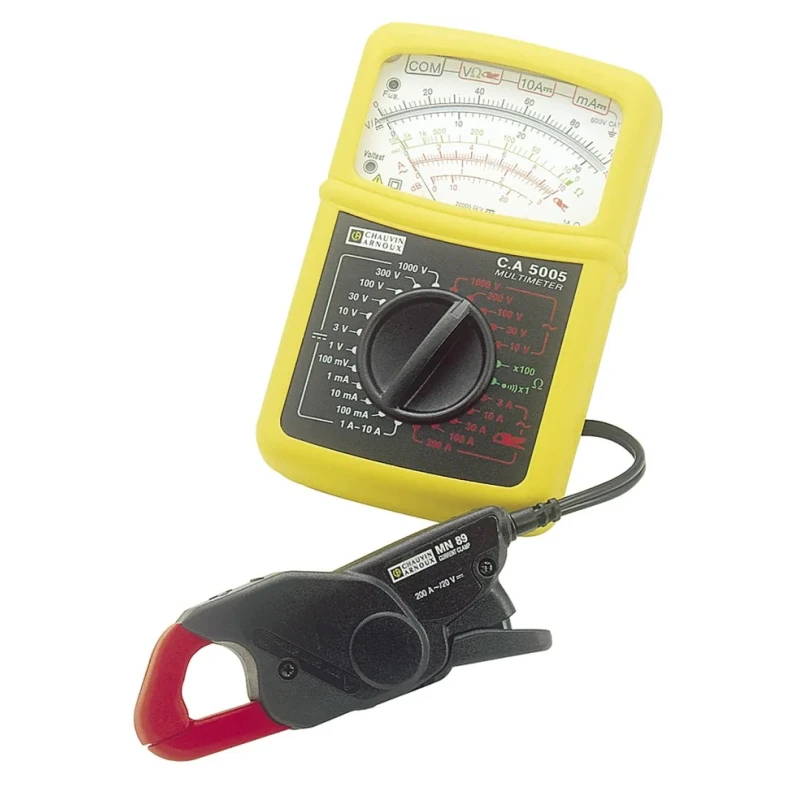

Chauvin Arnoux P01196523E CA 5005 is a handheld analog multimeter designed for comprehensive electrical measurements up to 600 V DC. It features an MN89 mini clamp for direct AC current reading up to 240 A, making it suitable for electricians and technicians in various fields.

The multimeter supports measurements of AC current, AC voltage, DC current, DC voltage, resistance, and includes a dB scale from 0 to 22 dB. It offers 8 DC voltage ranges (100 mV to 600 V) and 5 AC voltage ranges (10 V to 600 V), with excellent accuracy tolerances (±1.5 % DC voltage, ±2.5 % AC voltage and current).

The instrument includes an anti-parallax mirror on its analog display to ensure precise readings and is housed in a shockproof case with a multi-use fold-away stand called Multistand for ease of use in the field or laboratory.

The multimeter is supplied complete with MN89 AC clamp, silicone leads (straight and angled banana plugs), safety test probes, and a 9 V battery, enabling immediate operation. Its dimensions are 160 mm length, 105 mm width, and 56 mm height, with a gross weight of 500 g, contributing to its portability and convenience.

It adheres to international safety standards IEC 61010-1 and IEC 61326-1 and is rated for category III installations up to 600 V, ensuring user protection during electrical measurements.

Includes MN89 mini clamp for AC current measurement up to 240 A. Measures AC/DC voltage and current and resistance with high accuracy. Equipped with anti-parallax mirror for accurate analog scale readings. Shockproof case with Multistand for versatile usage.

Complete kit includes silicone leads, safety probes, and a 9 V battery. Compact and portable with lightweight design. Certified to IEC 61010-1 and IEC 61326-1 safety standards. Suitable for industrial, laboratory, construction, and HVAC applications.
