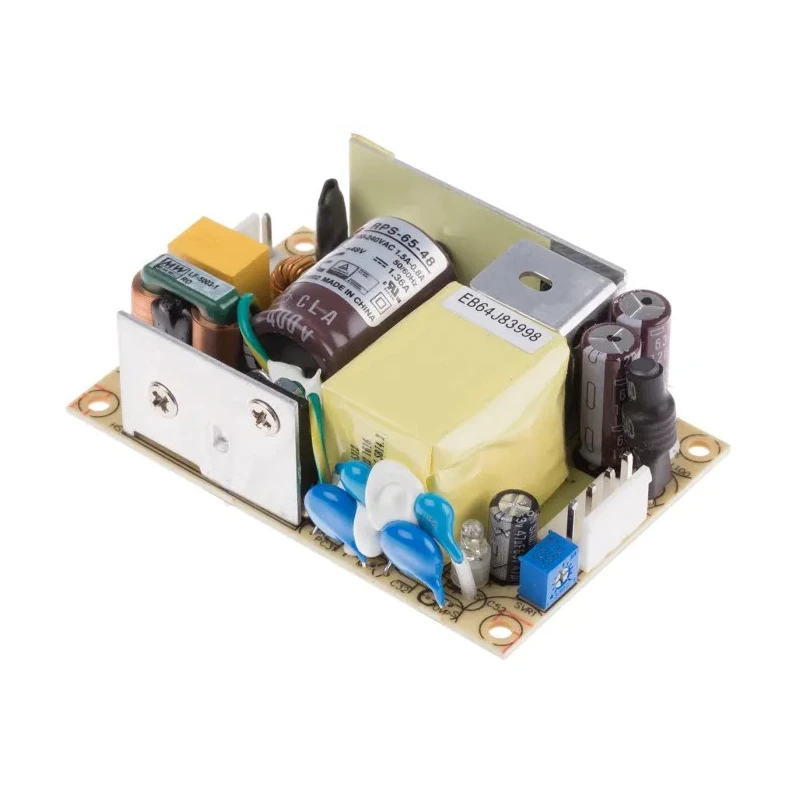

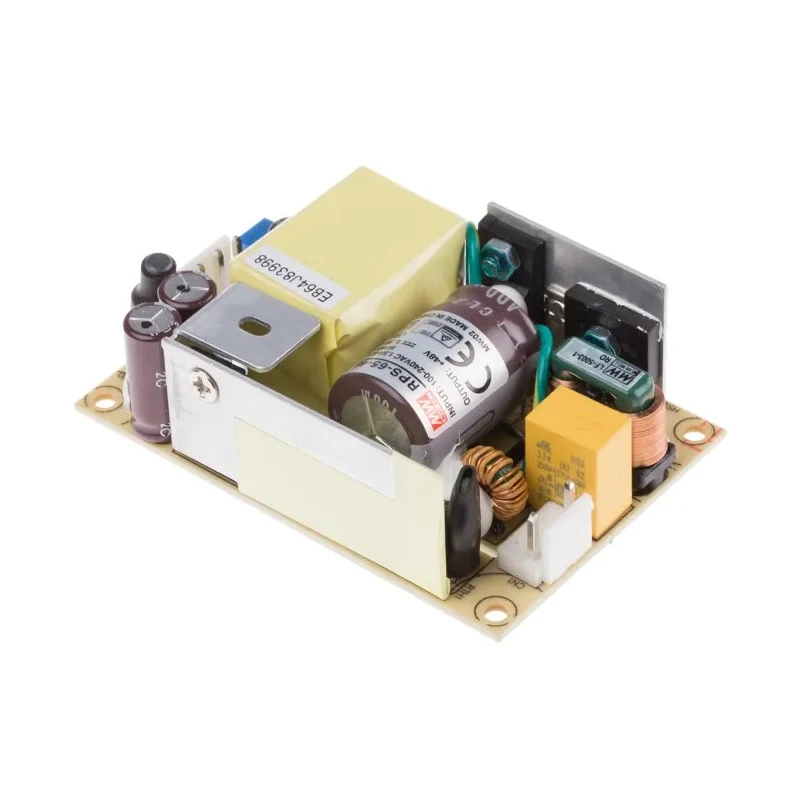

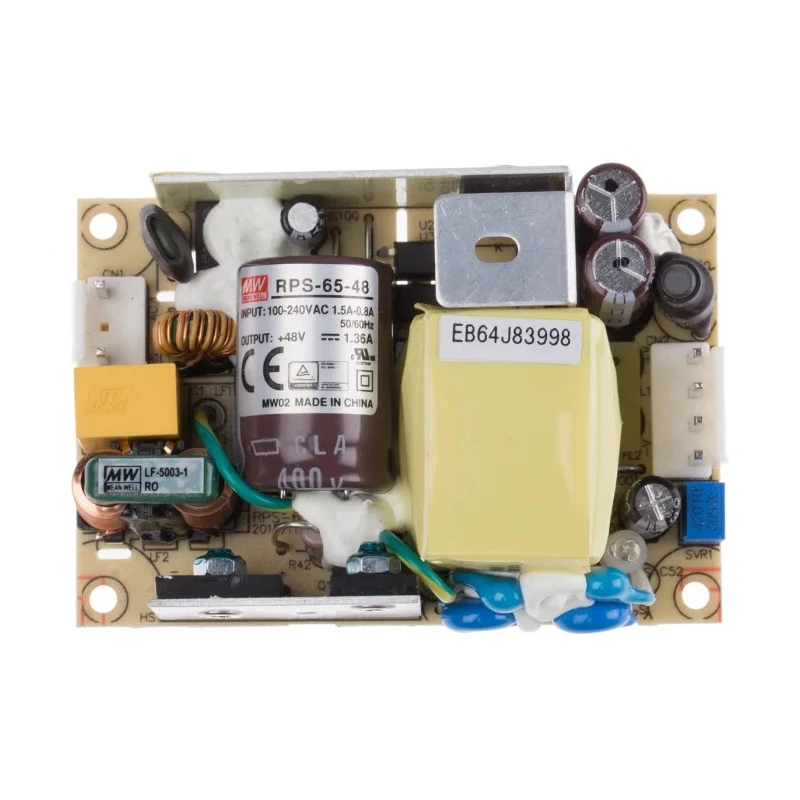

MEAN WELL RPS-65-48 Switching Power Supply 48V DC 65W 80-264V AC Input PCB Mount RPS-65-48

MEAN WELL RPS-65-48 is a reliable switching power supply providing 48V DC output at 65W power rating with a wide input voltage range of 80 to 264V AC. This single output PCB mount power supply features a miniature 3-inch by 2-inch form factor, ideal for compact industrial and medical applications requiring efficient power conversion.

The device operates efficiently at 91%, minimizing energy loss and heat. It is designed for free air convection cooling without the need for fans, ensuring silent operation and increased reliability. LED indication provides clear status of power activity.

Designed to meet stringent medical safety requirements, the RPS-65-48 offers reinforced insulation with 2x MOPP certification, making it suitable for sensitive medical equipment such as oral irrigators, sleep apnea monitors, hemodialysis machines, and medical monitors.

Its compliance with international standards including AS/NZS62368.1, CSA C22.2 No. 62368-1, CCCGB4943.1, IS 13252(Part1)/IEC 60950-1, EAC TP TC 00, TUV BS EN/EN 62368-1, and UL 62368-1 assures safe and stable operation in demanding industrial environments.

The power supply accepts input voltages from 80 to 264V AC, supporting global operation. It delivers a maximum output current of 1.36A with stable voltage regulation, suitable for use in 1U rack applications and various industrial and laboratory environments.

Single output power supply designed for PCB mounting. Compact miniature size of 76.2mm x 24mm x 24mm for space-saving applications. Wide operating temperature range from -30°C to 70°C. High efficiency at 91% ensures energy savings and low heat generation.

Medical safety approved with 2x MOPP isolation between primary and secondary sides. Free air convection cooling with LED power status indication. Suitable for 1U rack applications and medical devices such as oral irrigators and hemodialysis machines.

Compliance with international safety and EMC standards including UL 62368-1 and TUV BS EN 62368-1. Maximum output current of 1.36A with stable regulated output.

This MEAN WELL RPS-65-48 Switching Power Supply is an excellent choice for industrial, medical, laboratory, and HVAC applications requiring compact, safe, and dependable power conversion solutions. Explore more switching power supplies to find the perfect fit for your needs at EnvMart.
