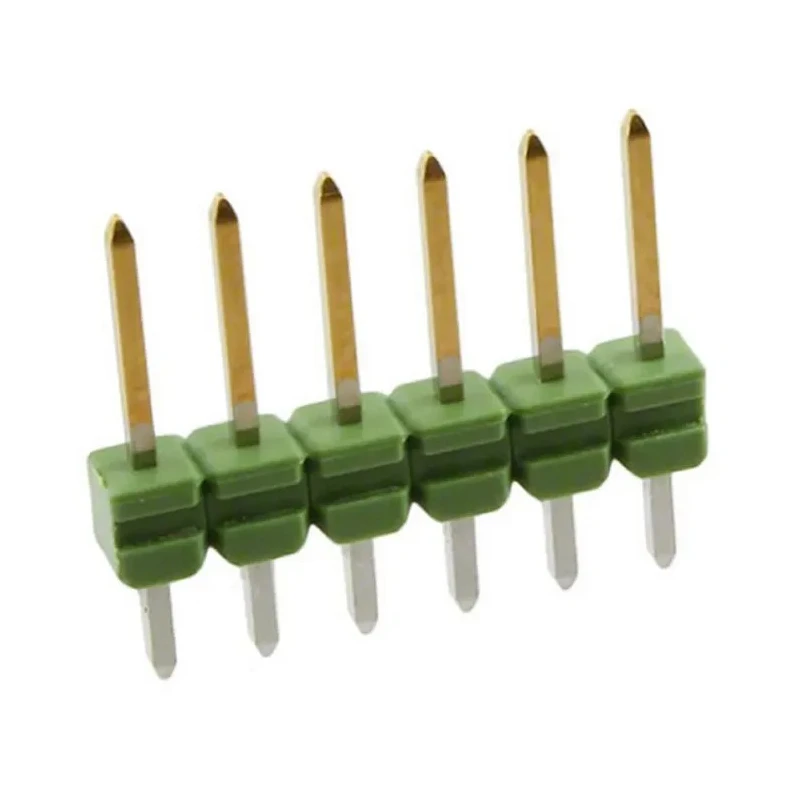

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 825433-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 825433-6 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Compatible with board-to-board and wire-to-board connector systems.
- Features 1 row of unshrouded male pins suitable for through-hole mounting.
- Constructed with brass contacts and gold plating for reliable conductivity.
- Housing made from durable polybutylene terephthalate for high stability.
- Designed for operation within temperature ranges from -65°C to 105°C.
- Rated for 3A current and withstands voltage up to 750V.
- Tail pin length measures 3.2mm and mating pin length is 6.7mm.
- Provides versatile breakaway design allowing size customization.
Product Description
TE Connectivity 825433-6 AMPMODU MOD II Series Straight Through Hole Pin Header offers a reliable and economical connection solution in industrial and electronic applications. Featuring 6 contacts arranged in a single row with a 2.54 mm pitch, this unshrouded header supports through-hole mounting for robust mechanical and electrical connections.
The pin header contacts are brass with gold plating, ensuring excellent conductivity and corrosion resistance, while the housing is engineered from polybutylene terephthalate to withstand mechanical stress and temperature extremes from -65°C to 105°C. Rated at 3A current and 750V voltage, it suits demanding environments.
This product’s breakaway design allows users to easily customize the header length by breaking it down to the required size, thereby saving installation time and labor costs. Its 3.2 mm tail pin length and 6.7 mm mating pin length optimize soldering and mating interfaces.
Widely utilized in automotive control systems, industrial and test equipment, computer and telecommunications hardware, as well as medical devices and storage equipment, this AMPMODU Mod II pin header meets the needs of diverse industrial and commercial electrical assemblies.
The 2.54 mm AMPMODU interconnect system is a recognized signal standard for automation and control, offering compact design and versatility across board-to-board and wire-to-board configurations.
Compatible with board-to-board and wire-to-board connector systems. Features 1 row of unshrouded male pins suitable for through-hole mounting. Constructed with brass contacts and gold plating for reliable conductivity. Housing made from durable polybutylene terephthalate for high stability.
Designed for operation within temperature ranges from -65°C to 105°C. Rated for 3A current and withstands voltage up to 750V. Tail pin length measures 3.2mm and mating pin length is 6.7mm. Provides versatile breakaway design allowing size customization.
Ideal for applications in automotive, industrial equipment, telecommunications, and medical instruments. Explore more engineered electronic components and connectors available at EnvMart for your industrial and manufacturing needs.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 6 contacts arranged in a single row with a 2.54 mm pitch, suitable for through-hole mounting.
It is rated for a maximum voltage of 750V, making it suitable for various high-voltage applications.
This unit has a current rating of 3A, which is appropriate for many electronic applications.
The contacts are made from brass and are gold plated for reliable conductivity, while the housing is constructed from polybutylene terephthalate.
It is designed for operation in temperature ranges from -65°C to 105°C, allowing for use in extreme environments.
The tail pin length measures 3.2 mm, optimizing soldering and mating interfaces.
The mating pin length is 6.7 mm, which aids in secure connections.
Yes, it is compatible with both board-to-board and wire-to-board connector systems, providing versatility in various applications.
It uses a solder termination type, which is common for ensuring reliable electrical connections.
The breakaway design allows users to customize the header length easily, saving installation time and labor costs.
The contacts are oriented straight, which is typical for through-hole mounting applications.
This product is manufactured in India, ensuring a specific origin for quality control.
