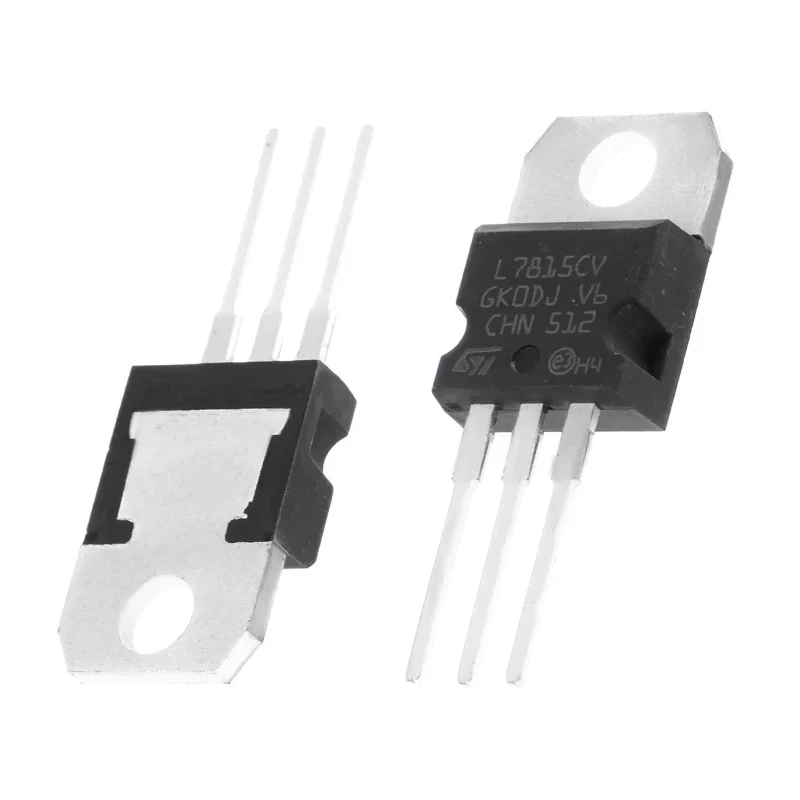

STMicroelectronics Fixed Output Voltage Regulator TO-220 3-Pin 35V Input 1.5A L7815CV-DG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics L7815CV-DG, Voltage Regulator 35V TO-220 3-Pin RS |
| Brand | STMicroelectronics |
| Height | 15.75mm |
| Length | 10.4mm |
| Model | L7815CV-DG |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | L78xx |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 6mA |
| Pin Count | 3 |
Key Features
- Delivers up to 1.5 A output current with fixed regulated voltage of 15 V.
- Features thermal overload and safe operating area protection to ensure reliable operation.
- Compact TO-220 3-pin through-hole mount package for easy PCB integration.
- Maximum input voltage rating of 35 V supports a variety of power supply configurations.
- Quiescent current is low at 6 mA, improving efficiency in power management circuits.
- Operating temperature range extends up to 125°C for harsh industrial environments.
- Widely used in power management circuits requiring stable and clean voltage regulation.
Product Description
STMicroelectronics L7815CV-DG is a fixed voltage linear regulator specifically designed to provide 15 V output at currents up to 1.5 A. Housed in a TO-220 3-pin through-hole mount package, it ensures efficient power regulation with protection features including thermal shutdown and output current limiting.
This device supports a maximum input voltage of 35 V and maintains operation in industrial temperature ranges up to 125°C. Its positive polarity regulation and low quiescent current of 6 mA make it suitable for embedded systems, power management modules, and electronic component applications needing reliable power supply control.
Designed as part of the L78xx series, the L7815CV-DG provides local regulation on PCBs to solve single-point regulation issues by delivering stable voltage outputs within a compact footprint.
Up to 1.5 A output current capability ensures support for various load requirements. Thermal overload protection prevents damage under high-temperature conditions. Safe operating area (SOA) protection enhances device longevity and system reliability.
Through-hole TO-220 package simplifies assembly and replacement in maintenance scenarios. Low quiescent current improves energy efficiency in battery-powered or low power devices. Operational temperature up to 125°C supports use in demanding industrial environments.
Fixed 15 V output suitable for a wide range of power regulation applications.
This voltage regulator is ideal for power management in industrial, manufacturing, electronics production, and laboratory environments where precise and stable voltage control is critical.
Explore more Voltage Regulators and power management ICs available in the Electronics & Electricals category at EnvMart to suit diverse industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The L7815CV-DG provides a fixed output voltage of 15 V.
This voltage regulator supports a maximum input voltage of 35 V.
It can deliver up to 1.5 A of output current.
The quiescent current is low at 6 mA, which helps improve efficiency in power management circuits.
It operates effectively in environments with temperatures up to 125°C.
This model is housed in a TO-220 3-pin through-hole mount package.
It includes thermal overload protection and safe operating area (SOA) protection to ensure reliable operation.
The height of this voltage regulator is 15.75 mm.
It is widely used in power management circuits requiring stable and clean voltage regulation, including industrial and laboratory environments.
The width is 4.6 mm and the length is 10.4 mm.
This voltage regulator is part of the L78xx series.
Its low quiescent current of 6 mA contributes to improved energy efficiency, making it suitable for battery-powered devices.
