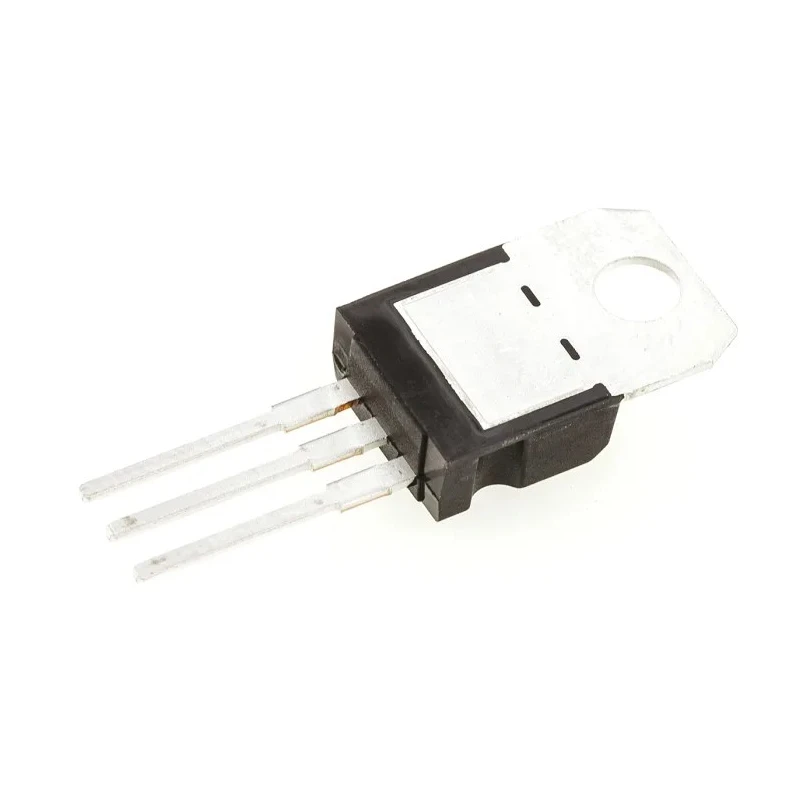

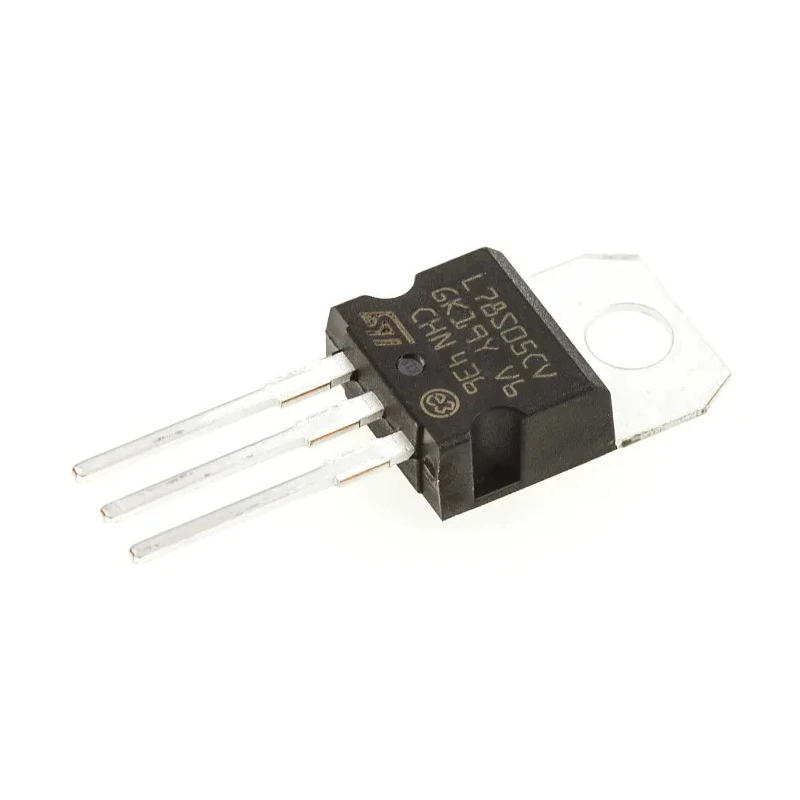

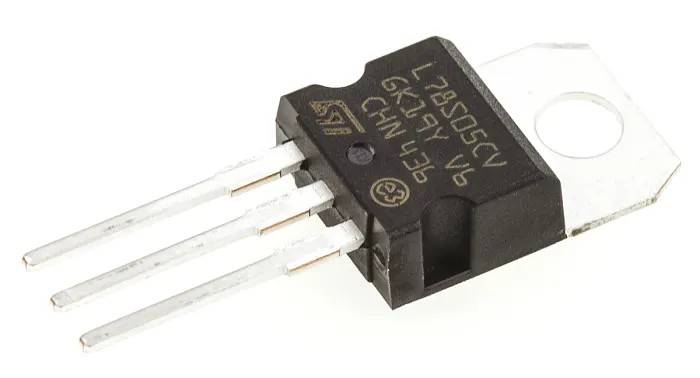

STMicroelectronics 1-Channel Linear Voltage Regulator 2A 5V TO-220 3-Pin L78S05CV
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | L78S05CV |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | L78Sxx |
| Output Current | 2A |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Load Regulation | 100 mV |
| Minimum Operating Temperature | 0°C |
| Polarity | Positive |
| Regulator Type | Linear Voltage |
| Number of outputs | 1 |
| Maximum Input Voltage | 35V |
| Output Voltage | 5V |
| Quiescent Current | 8mA |
| Line Regulation | 100 mV |
| Minimum Input Voltage | 8V |
| Pin Count | 3 |
Key Features
- Provides stable 5V output voltage with 2 amp constant current capacity.
- Features linear regulation with internal current limiting and thermal shutdown.
- Compact TO-220 through-hole package with 3 pins for easy PCB mounting.
- Operates within input voltage range of 8V to 35V efficiently.
- Designed for positive polarity power regulation applications.
- Line and load regulation of 100 mV each ensures voltage stability under varying conditions.
- Quiescent current is low at 8mA for reduced power loss.
- Wide operating temperature from 0°C to 150°C suitable for various environments.
Product Description
STMicroelectronics L78S05CV is a 1-channel linear voltage regulator providing fixed 5V output with 2A maximum output current, designed to offer reliable voltage regulation in electronic applications.
Housed in a TO-220 3-pin through-hole package measuring 10.4mm in length, 4.6mm in width, and 9.15mm in height, it facilitates easy integration on PCBs requiring positive voltage regulation.
This linear regulator features internal current limiting, thermal shutdown, and safe operating area protection to enhance device robustness and reliability under load and temperature stresses.
The device supports an input voltage range from 8V to 35V, line regulation and load regulation are maintained at 100 mV, delivering stable output voltage for sensitive electronics.
With a low quiescent current of 8mA, it minimizes power consumption in standby or low load conditions. Operating temperatures range from 0°C to 150°C, allowing use in various industrial, laboratory, and commercial electronics sectors.
Applications include power management in circuits requiring fixed 5V regulated supply, embedded systems, and on-card local regulation to mitigate distribution issues from single-point regulation.
Provides stable 5V output voltage with up to 2A output current. Includes thermal overload, short circuit, and safe operating area protection. Compact TO-220 3-pin package ideal for through-hole mounting. Operates over a wide temperature and input voltage range ensuring durability.
Low quiescent current for efficient power usage. This STMicroelectronics voltage regulator is a trusted choice for engineers designing power supply stages requiring fixed output voltage with high reliability and ease of use.
