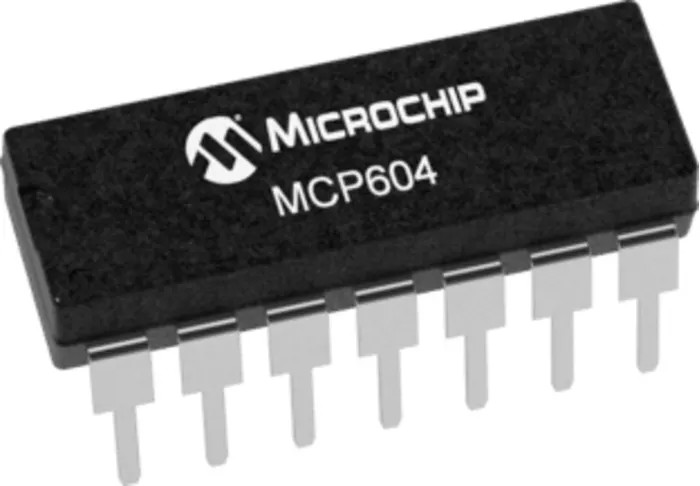

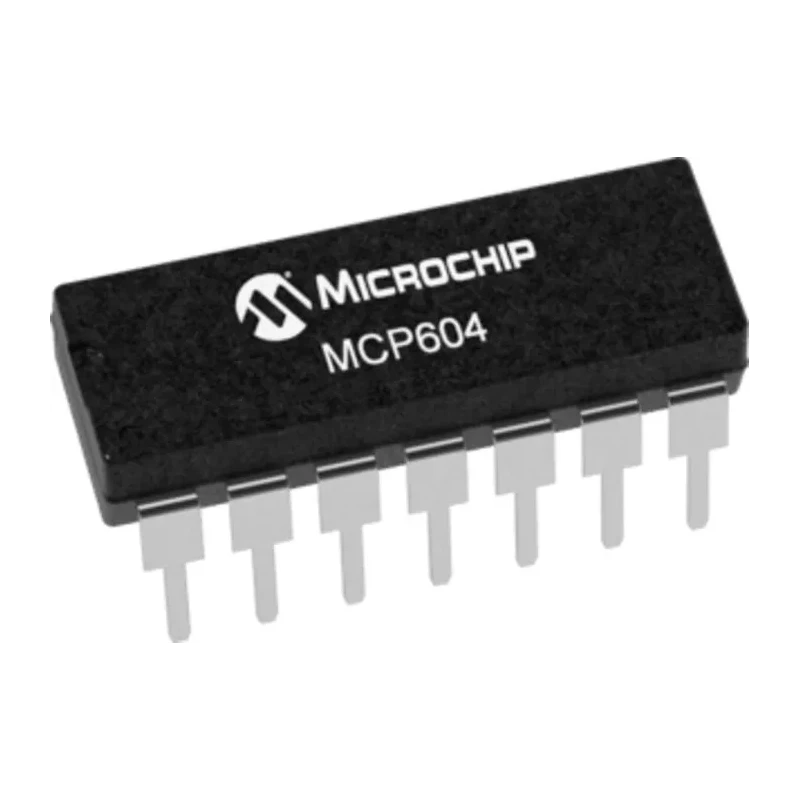

Microchip Operational Amplifier 2.8 MHz 14-Pin PDIP 5V MCP604-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.3mm |
| Length | 19.05mm |
| Model | MCP604-I/P |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | MCP604 |
| Output Current | 30mA |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 2.8MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 2 mV |
| Slew Rate | 2.3V/μs |
Key Features
- This amplifier features four channels in a single package for versatile use.
- Operating voltage range extends from 3V to 5V, suitable for low voltage applications.
- Provides a maximum output current of 30mA enhancing drive capability.
- Maintains an input bias current as low as 1 pA for precision signal amplification.
- The device operates reliably within temperature ranges from -40°C to 85°C.
- Input offset voltage is low at 2 mV, ensuring accuracy in signal processing.
- Slew rate of 2.3 V/µs supports rapid signal changes for high-frequency performance.
- The compact PDIP 14-pin package ensures easy mounting with through-hole technology.
Product Description
Microchip MCP604-I/P is a precision operational amplifier featuring a 2.8 MHz gain bandwidth product and packaged in a 14-pin PDIP format designed for 5V supply voltage. This four-channel amplifier provides excellent signal conditioning and amplification capabilities suitable for numerous industrial and electronic applications.
It operates over a wide voltage range from 3V minimum to 5V maximum, making it versatile for various low voltage systems. The low input bias current of 1 pA and input offset voltage of 2 mV contribute to high accuracy and minimal signal distortion.
The amplifier supports a maximum output current of 30mA, accommodating driving loads effectively, while a slew rate of 2.3 V/µs ensures it can handle fast signal transitions critical in high-frequency circuits.
Designed for through-hole mounting, the compact PDIP package (14 pins) measures 19.05 mm in length, 6.35 mm in width, and 3.3 mm in height, making it suitable for PCB assembly where space is constrained.
Operating temperature range spans from -40°C to 85°C, ensuring robust performance under thermal stresses common in industrial and commercial environments. The device complies with RoHS standards, confirming adherence to environmental and safety regulations.
This product is ideal for industrial automation, signal processing, instrumentation, telecommunications, and control systems. Typical applications include audio equipment, filters, integrators, and sensor interfaces. The MCP604 series is well-regarded for precision, low power consumption, and wide bandwidth.
Integrate the Microchip MCP604-I/P Operational Amplifier for enhanced precision and reliability in your electronic designs. Explore more high-quality semiconductor components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP604-I/P features a gain bandwidth product of 2.8 MHz, making it suitable for various signal amplification tasks.
This operational amplifier has a low input bias current of 1 pA, which helps ensure high accuracy in signal amplification.
The maximum output current of the MCP604-I/P is 30 mA, allowing it to drive loads effectively in various applications.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for use in diverse environments.
The dimensions of this operational amplifier are 19.05 mm in length, 6.35 mm in width, and 3.3 mm in height.
The input offset voltage for the MCP604-I/P is low at 2 mV, which contributes to its accuracy in signal processing.
It is packaged in a 14-pin PDIP format, designed for through-hole mounting, which facilitates easy integration into PCB assemblies.
The MCP604-I/P operates within a supply voltage range of 3V to 5V, making it suitable for low voltage applications.
The slew rate of the MCP604-I/P is 2.3 V/µs, supporting rapid signal changes for high-frequency performance.
The MCP604-I/P complies with RoHS standards, confirming its adherence to environmental and safety regulations.
This operational amplifier features four channels within a single package, providing versatility for various applications.
It is ideal for use in industrial automation, signal processing, instrumentation, telecommunications, and control systems.
