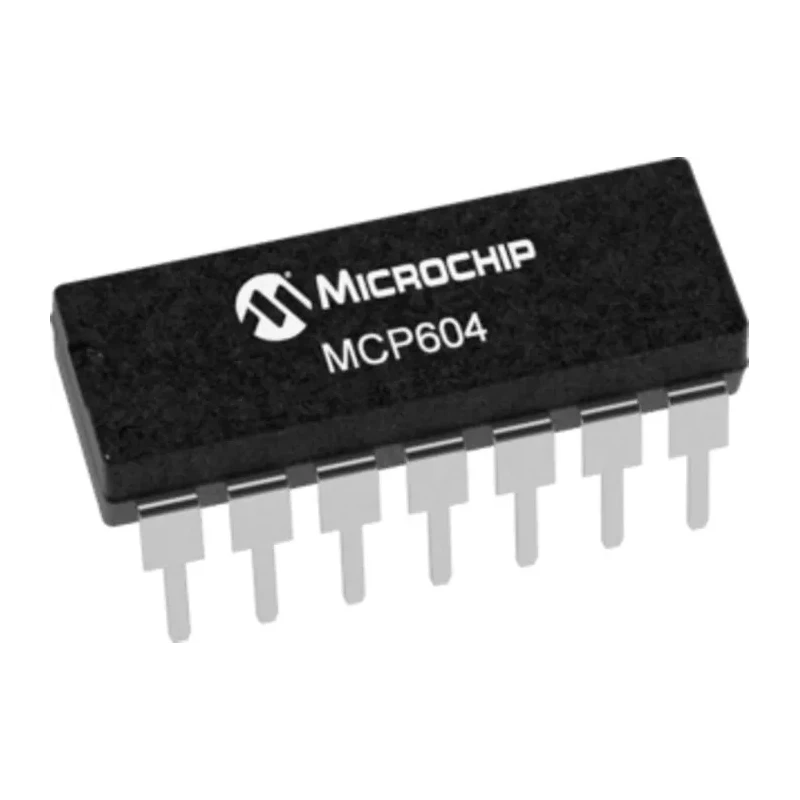

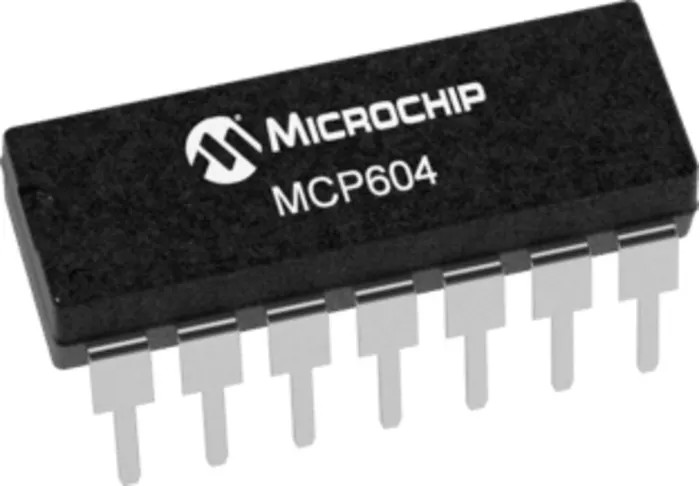

Microchip Operational Amplifier, 2.8 MHz Gain Bandwidth, 14-Pin PDIP, 5V MCP604-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.3mm |
| Length | 19.05mm |
| Model | MCP604-I/P |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | MCP604 |
| Output Current | 30mA |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 2.8MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 2 mV |
| Slew Rate | 2.3V/μs |
Key Features
- The device features four independent channels in a single package.
- Gain bandwidth product rated at 2.8 MHz supports moderate frequency applications.
- Wide supply voltage range from 3V to 5V enables flexible power configurations.
- Low input bias current of 1 pA and input offset voltage of 2 mV provide stable and precise signal amplification.
- Slew rate of 2.3 V/μs allows accurate signal tracking.
- Operating temperature range from -40°C to 85°C suits various industrial environments.
- Output current capability up to 30 mA supports driving moderate loads.
- RoHS compliant for environmentally friendly manufacturing.
Product Description
Microchip MCP604-I/P is a quad channel operational amplifier packaged in a 14-pin PDIP suitable for through-hole mounting. It operates with supply voltages from 3V to 5V and offers a gain bandwidth product of 2.8 MHz, making it ideal for moderate frequency analog signal processing.
Designed with a low input bias current of 1 pA and an input offset voltage of 2 mV, this amplifier ensures high accuracy for sensitive measurement and control applications. Its slew rate of 2.3 V/μs enables precise tracking of input signal changes.
The device can operate across a wide temperature range from -40°C to 85°C, making it reliable for industrial and commercial use in varying environmental conditions. The output current capability of 30 mA allows the device to drive moderate loads efficiently.
Four independent amplification channels provided in one package. Through hole mount type allows for easy PCB integration and prototyping. Meets RoHS standards for lead-free and environmentally safe usage. Compact dimensions: 19.05 mm length, 6.35 mm width, and 3.3 mm height.
Typical applications include sensor signal conditioning, industrial instrumentation, data acquisition, and general purpose analog circuitry.
This operational amplifier is suitable for electronics, semiconductor, industrial automation, instrumentation, and laboratory applications. Its balanced combination of performance, size, and industry compliance makes it a versatile choice for a wide range of analog circuit designs.
Browse EnvMart for more Microchip semiconductor components and Operational Amplifiers for your electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP604-I/P has a gain bandwidth product rated at 2.8 MHz, suitable for moderate frequency applications.
This operational amplifier can provide an output current capability of up to 30 mA, allowing it to drive moderate loads efficiently.
It operates with a supply voltage range from 3V to 5V, providing flexibility for different power configurations.
The input bias current for this model is 1 pA, which helps ensure stable and precise signal amplification.
The MCP604-I/P has an input offset voltage of 2 mV, contributing to its high accuracy in sensitive applications.
This operational amplifier operates within a temperature range of -40°C to 85°C, making it suitable for various industrial environments.
The slew rate of the MCP604-I/P is 2.3 V/μs, enabling accurate tracking of input signal changes.
This model features four independent channels within a single package, allowing for multiple signal processing tasks.
The dimensions of this operational amplifier are 19.05 mm in length, 6.35 mm in width, and 3.3 mm in height.
The MCP604-I/P is designed for through-hole mounting, facilitating easy integration into PCB designs.
Yes, this operational amplifier is RoHS compliant, ensuring environmentally friendly manufacturing practices.
Typical applications include sensor signal conditioning, industrial instrumentation, data acquisition, and general purpose analog circuitry.
