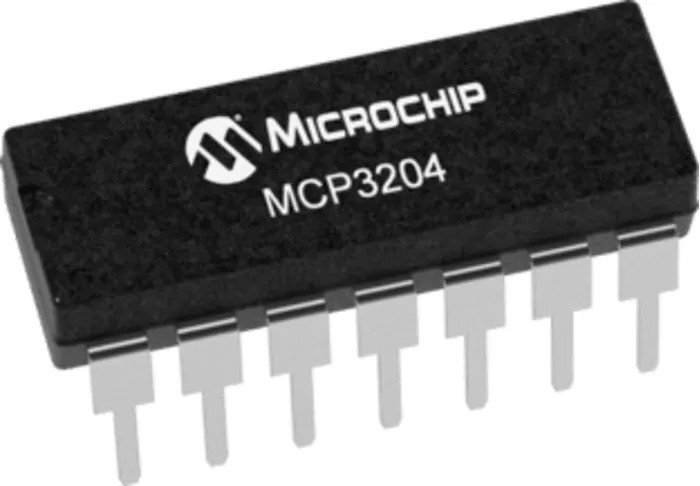

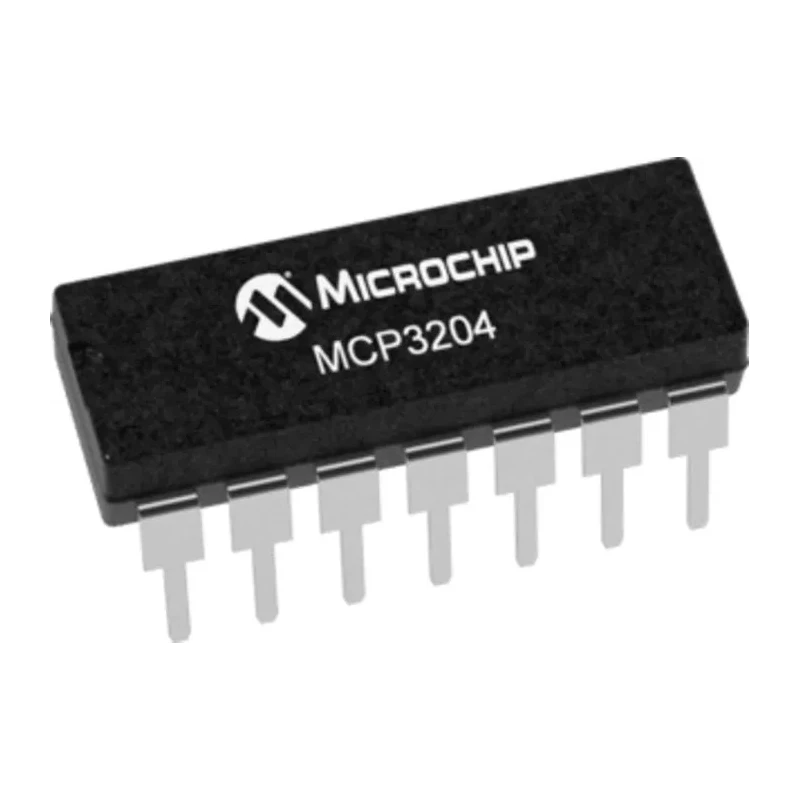

Microchip 4-Channel 12-Bit Successive Approximation Register Analog to Digital Converter 100ksps, 14-Pin PDIP MCP3204-CI/P
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 5.89mm |
| Length | 19.69mm |
| Model | MCP3204-CI/P |
| Mount Type | Through Hole |
| Sampling rate | 100ksps |
| Series | MCP3204 |
| Input Type | Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 4 |
Key Features
- Features four analog-to-digital converters supporting simultaneous sampling.
- Offers a 12-bit resolution ensuring high accuracy for voltage measurements.
- Operates at a sampling rate of 100,000 samples per second.
- Utilizes SPI interface type for efficient serial data communication.
- Supports through-hole mounting suitable for PCB insertion.
- Rated for a wide temperature range from -40°C to 125°C.
- Operates at a minimum supply voltage of 5V with a maximum of 5.25V.
- Encased in a 14-pin PDIP package measuring 19.69mm in length and 5.89mm in height.
Product Description
Microchip MCP3204-CI/P is a precision 4-channel analog to digital converter (ADC) designed with successive approximation register (SAR) architecture that provides 12-bit resolution. Its 100ksps sampling rate ensures fast and accurate conversion suitable for a variety of industrial and embedded applications.
This ADC supports SPI interface, facilitating straightforward integration with microcontrollers and digital systems. Its through-hole mounting in a 14-pin PDIP package simplifies PCB assembly and prototyping.
The device operates reliably within a temperature range of -40°C to 125°C, making it suitable for harsh environments including automotive systems as it complies with the AEC-Q100 automotive standard. Its electrical specifications allow operation at a supply voltage between 5V and 5.25V.
The MCP3204 series is widely used in applications requiring precise voltage measurement such as industrial control systems, data acquisition systems, signal processing, test equipment, and instrumentation.
Four channels enabling multiple analog inputs. 12-bit resolution for high measurement precision. High-speed 100ksps sampling rate. SPI interface for efficient communication. Through-hole PDIP package for ease of use. Wide operating temperature range for industrial applications.
Compliant with AEC-Q100 automotive quality standards.
This product supports circuit designers seeking high-performance ADCs for embedded, industrial, and automotive applications. It is distributed in a tube packaging format ready for insertion into machinery to improve production efficiency.
Explore the Electronics & Electricals category at EnvMart to find more semiconductor components including ADCs from Microchip and other leading brands.
Explore more products in our Analogue to Digital Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers a resolution of 12 bits, ensuring high accuracy for voltage measurements.
The MCP3204-CI/P operates at a maximum sampling rate of 100,000 samples per second.
This unit supports four channels, allowing for simultaneous sampling of multiple analog inputs.
It utilizes an SPI interface for efficient serial data communication with microcontrollers and digital systems.
The MCP3204-CI/P operates reliably within a temperature range of -40°C to 125°C, making it suitable for harsh environments.
This model operates at a minimum supply voltage of 5V and a maximum of 5.25V.
It comes in a 14-pin PDIP package, which is suitable for through-hole mounting on PCBs.
Yes, it complies with the AEC-Q100 automotive quality standards, making it suitable for automotive applications.
The height of this model is 5.89mm.
This unit measures 19.69mm in length.
It is designed with a successive approximation register (SAR) architecture for precise analog to digital conversion.
This model supports voltage as its input type, allowing for accurate voltage measurements.
