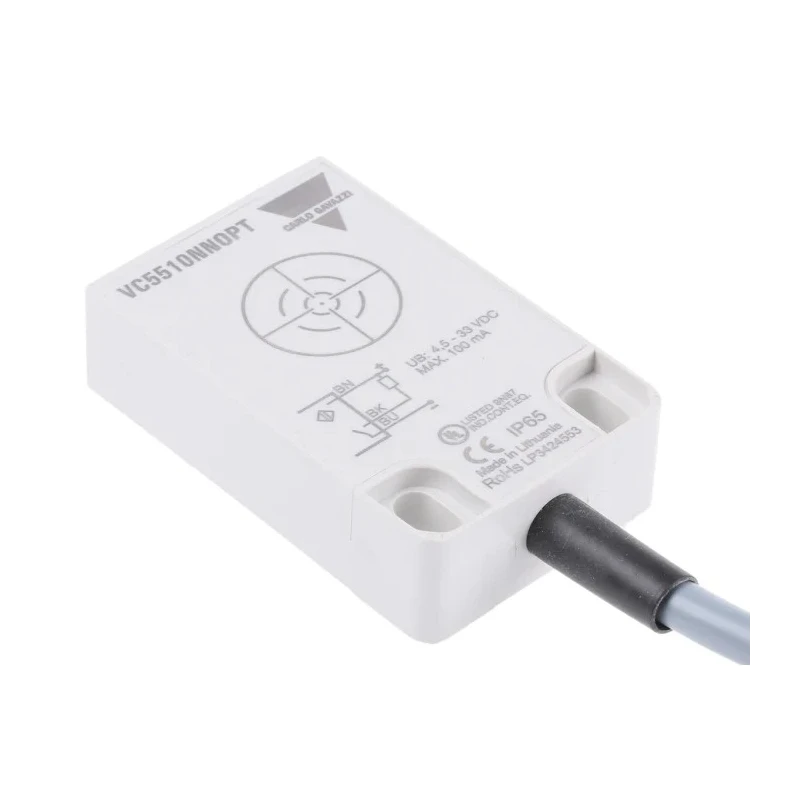

Carlo Gavazzi CLP Series Capacitance Level Sensor Chassis Mount Polycarbonate ABS Housing VC5510NNOPT

Free Delivery in India | Lowest Global Shipping Charges

Carlo Gavazzi CLP Series Capacitance Level Sensor Chassis Mount Polycarbonate ABS Housing VC5510NNOPT

Name: Carlo Gavazzi CLP Series Capacitance Level Sensor Chassis Mount Polycarbonate ABS Housing VC5510NNOPT
Brand: Carlo Gavazzi
SKU: 181884
Price: 114.08 USD
Availability: InStock



Category Level Sensors Brand Carlo Gavazzi Condition New

Specifications

Country of Origin	Lithuania
Output	DC 100mA transistor
Brand	Carlo Gavazzi
Model	VC5510NNOPT
Cable Length	1.5m
Mount Type	Chassis
Housing Material	Polycarbonate, ABS
Series	CLP
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Maximum Current	100mA
Device Type	Capacitance
Maximum dc Voltage	30V dc
Standards/Approvals	UL

Key Features

Adjustable sensing range from 2 to 10 mm using a single-turn potentiometer.
Equipped with LED indication for activation status.
Output via DC 100mA transistor suitable for varied industrial applications.
Suitable supply voltage range from 5 to 30 Vdc with low no-load current.
Operating temperature range between 0°C and 50°C ensures reliable performance.
Robust grey ABS and polycarbonate housing provides ingress protection of IP65.
Includes a 1.5 m, 3 x 0.3 mm² PVC cable for easy installation.
UL approved with no hazardous area certification.

Product Description

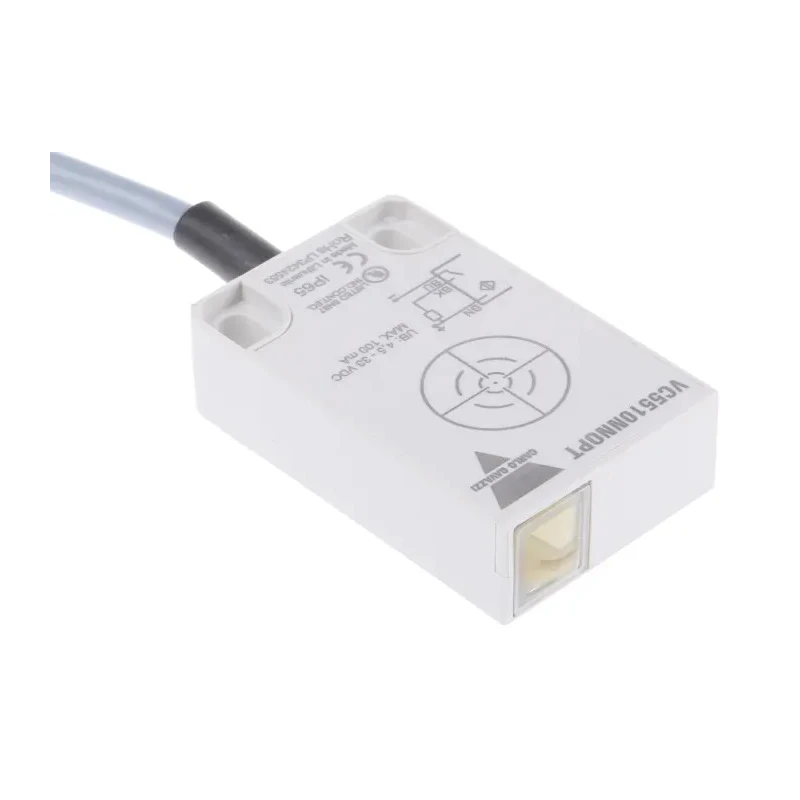

Carlo Gavazzi VC5510NNOPT is a capacitance level sensor from the CLP series featuring a chassis mount design and housing made of polycarbonate and ABS materials. This sensor operates with a voltage supply range of 5 to 30 Vdc and is ideal for detecting levels with a sensing range adjustable from 2 to 10 mm using a single-turn potentiometer.

The device is equipped with LED indication to signal when the sensor is activated, and it provides an output current through a DC 100mA transistor, enabling integration into various industrial control systems. It has a low no-load current of ≤10mA, which enhances energy efficiency during operation.

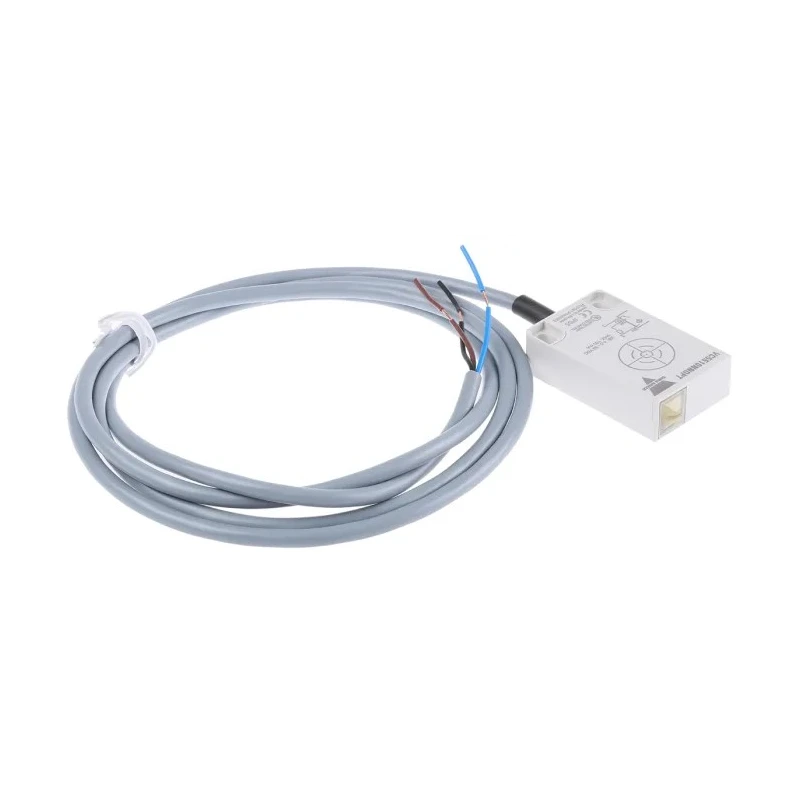

Designed for robust industrial environments, the housing features grey ABS and polycarbonate construction with ingress protection rating IP65, protecting it against dust and water jets. The sensor includes a 1.5 m PVC cable (3 x 0.3 mm²) for straightforward installation and wiring.

The operating temperature range from 0°C to 50°C suits applications requiring stable performance under normal ambient conditions. Power ON delay options provide flexibility with either a maximum 40 ms delay or a maximum 5-second ON/OFF delay version to match different control requirements.

This CLP series sensor complies with UL standards and is CE marked for European directives, ensuring safety and reliability. It is manufactured in Lithuania, reflecting high manufacturing standards.

Adjustable sensing range 2 to 10 mm via single-turn potentiometer. LED activation indication. Output: DC 100mA transistor. Power supply 5-30 Vdc with low current consumption. Operating temperature 0 to 50°C. Housing material: grey ABS and polycarbonate.

Ingress protection IP65. Includes 1.5 m PVC cable (3 x 0.3 mm²). UL approved, CE marked. Manufactured in Lithuania.

Ideal for industrial automation, electrical control, and level detection in liquids and solids. Browse more about Level Sensors and Carlo Gavazzi products on EnvMart for comprehensive industrial sensor solutions.
