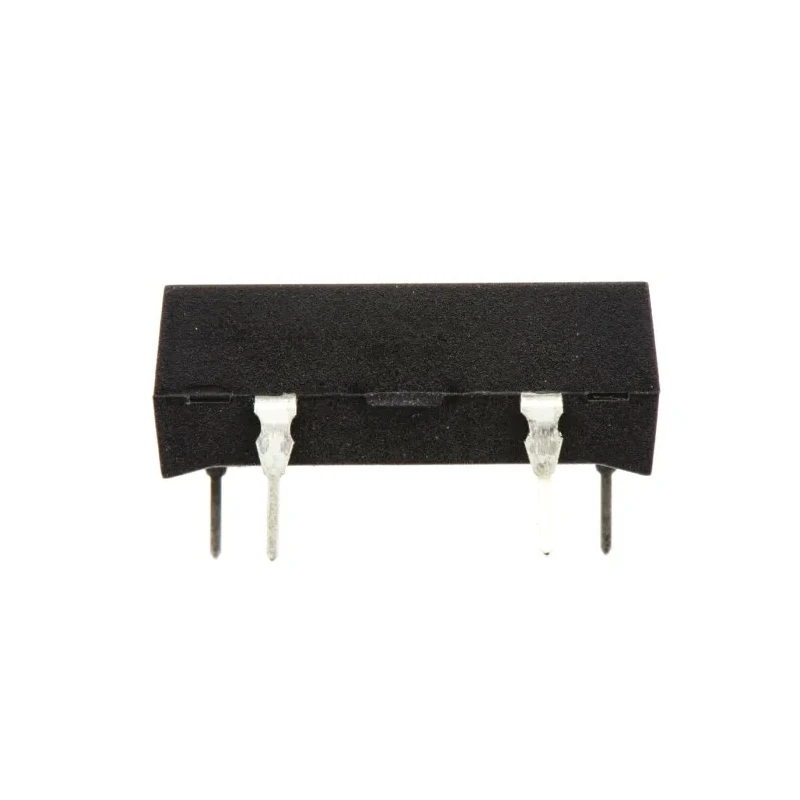

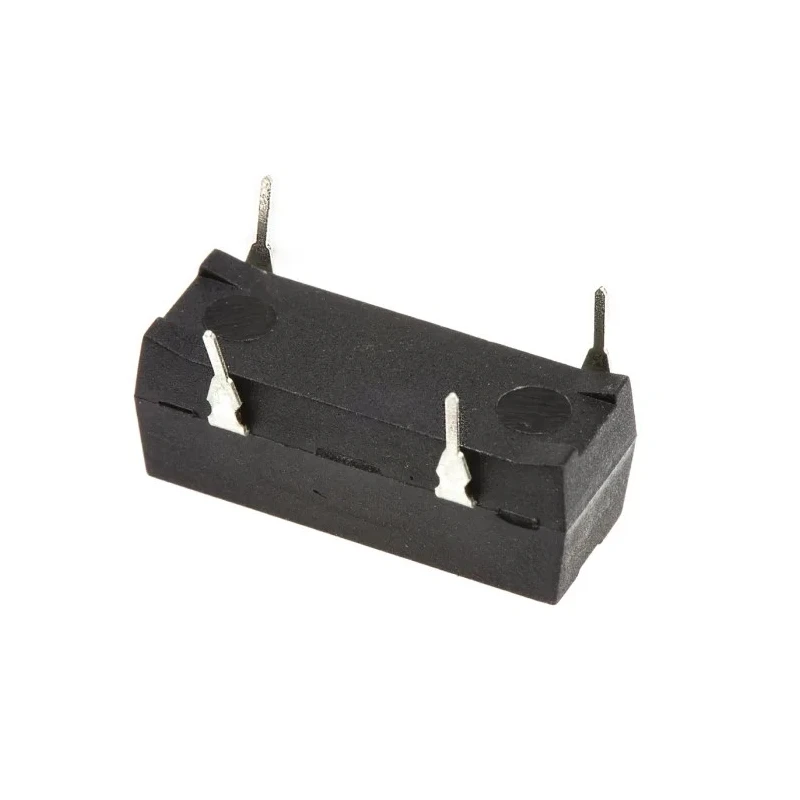

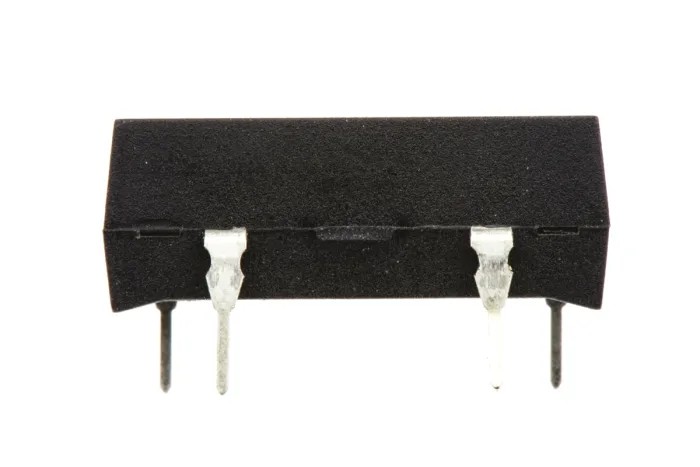

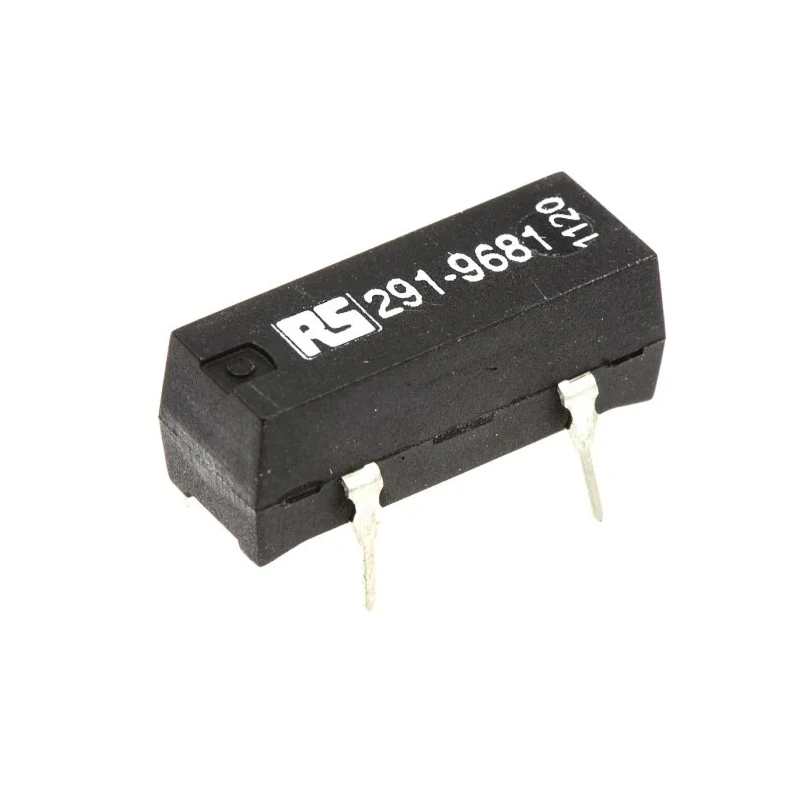

RS PRO PCB Reed Relay, 12V DC Coil, SPST, 300V DC Max, 0.5A Max, 1000 Ω 291-9681

RS PRO 291-9681 PCB Reed Relay is a high-quality single pole single throw (SPST) device designed for reliable electronic switching in automation and electrical circuits. It features a 12V DC coil with a coil power rating of 145 mW and coil resistance of 1000 Ω, providing efficient and low power consumption operation.

The relay supports a maximum switching voltage of 300 V DC and a maximum switching current of 0.5 A for both AC and DC applications. Its fast operating time of 0.5 ms, including bounce time, ensures quick response suitable for sensitive circuit control.

The mounting type is designed for PCB installation with solder terminals, allowing for straightforward and secure circuit assembly. The relay's compact dimensions of Length 19.3 mm, Height 7.5 mm, and Depth 7 mm suit dense electronic assemblies.

RS PRO's PCB Reed Relay offers robust dielectric isolation of 2.5 kV DC between coil and contacts, ensuring safe operation under high voltage conditions. Contact resistance remains low at 200 mΩ thanks to tin-plated copper alloy contacts, affording durable electrical performance with minimal losses.

Its operating temperature range from -20°C to +70°C makes it suitable for various industrial, laboratory, and automation environments. The relay complies with RoHS directives, reducing hazardous substances and supporting eco-friendly practices. Manufactured in Germany, it represents high engineering standards and quality assurance.

This relay is commonly utilized in applications such as mains Triac trigger devices, control circuits, signal conditioning, and other precision switching tasks in industrial and commercial electronic assemblies.

This reed relay operates with a coil power of 145 mW and coil resistance of 1000 Ω. It has a maximum switching voltage of 300 V DC and current rating of 0.5 A AC/DC. The device features fast 0.5 ms operating time (including bounce time).

PCB mounting type with through-hole solder terminals for easy installation. Isolation rating of 2.5 kV DC between coil and contacts. Contact resistance of 200 mΩ with tin-plated copper alloy contacts. Compact dimensions: Length 19.3 mm, Height 7.5 mm, Depth 7 mm.

Operating temperature range from -20°C to +70°C for reliable performance. RoHS compliant meeting environmental standards. High-quality manufacturing origin: Germany. Explore our range of RS PRO products and other Reed Relays for high-performance and reliable solutions at EnvMart.
