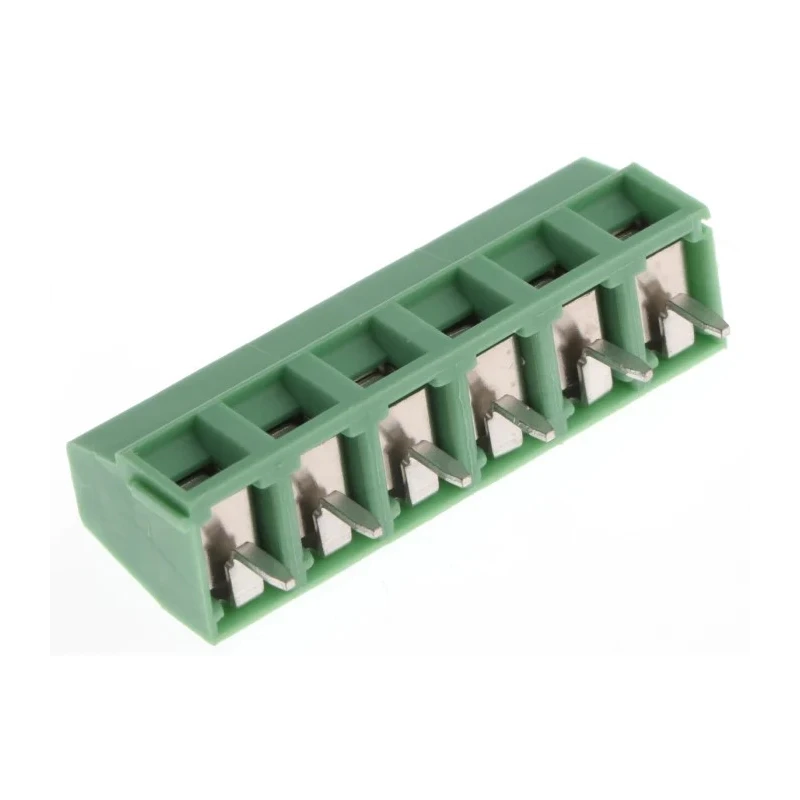

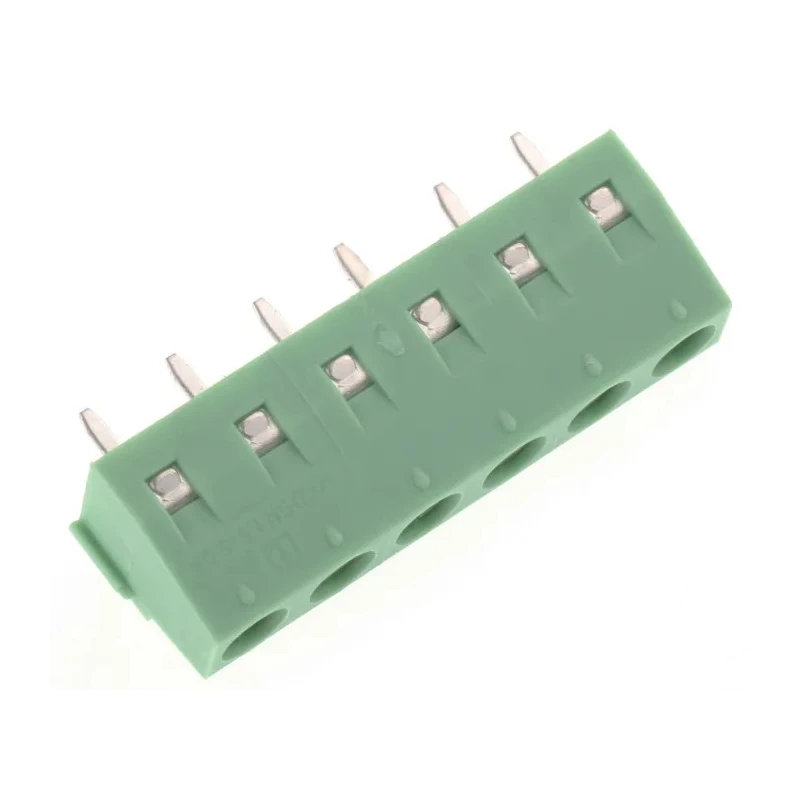

Phoenix Contact MKDSN 1.5/6-5.08 Series Straight PCB Terminal Block, 6 Contacts, 5.08 mm Pitch, 400V, 8A, 1 Row 1729160

Phoenix Contact 1729160 MKDSN 1.5/6-5.08 Series Straight PCB Terminal Block provides a reliable and compact solution for electrical circuit connections on printed circuit boards. Designed with 6 contacts spaced at a standard 5.08 mm pitch, this terminal block supports maximum current ratings up to 8A and voltage ratings of 400V, making it suitable for industrial and commercial electronics applications.

Manufactured with high-quality polyamide housing, it ensures excellent mechanical strength and electrical insulation. The terminal block accommodates conductor cross sections ranging from 0.14 mm² to 1.5 mm², allowing for both solid and flexible conductors. The straight orientation and single-row design simplify PCB assembly and optimize space efficiency.

This terminal block features screw-type connections that provide secure and dependable terminations with recommended tightening torque between 0.5 Nm and 0.6 Nm, ensuring optimal electrical contact and reliability. The product is rated for a surge voltage protection of 4 kV, safeguarding connected systems against transient voltage spikes.

Typical use cases include automation equipment wiring, control cabinet installations in the electrical industry, mechanical assemblies requiring dependable wiring solutions, and various electronic device interconnections where compact, high-quality PCB Terminal Blocks are essential.

Durable polyamide housing provides mechanical robustness and electrical insulation. Supports 6 contact points for electrical connections with 5.08 mm pitch spacing. Current rating of 8A and voltage rating of 400V for versatile industrial applications.

Single-row, straight orientation simplifies PCB layout and assemblies. Suitable for conductor cross sections from 0.14 mm² to 1.5 mm² with secure screw connections. Rated surge voltage of 4 kV enhances electrical safety and system reliability.

Green color coding for easy panel identification and wiring organization.

Originating from Germany, this component ensures compliance with stringent manufacturing standards. Suitable for use in industrial machines, electrical cabinets, laboratory equipment, and manufacturing controls, it offers a reliable interface for electronic circuits.
