KM-2805 MK1 5 KV Digital Insulation Resistance Tester With PI & DAR
Specifications
| Display | Digita 999 Counts Analog bar graph with LCD backlight |
|---|---|
| Relative Humidity | 0.85 |
| Operating Temperature | -10~40 Degree C |
| Dimensions | 202 x 155 x 94 mm |
| Storage Temperature | -20 to 60 Degree C |
| Model | KM-2805 |
| Weight | 2 KG |
| Current consumption | Maximu round 1.0AAverag round 20mA |
| Battery Indicator Type | Displays Battery Condition |
| Display Backlight | Bright backlight for clear readings in poorly lighted areas |
| Computer Connection | Via USB interface |
| Data Logging and Recall | 18 points |
Key Features
- Auto ranging
- Displays Battery Condition
- Equips with function and battery indicator icons
- Bright backlight for clear readings in poorly lighted areas
Product Description

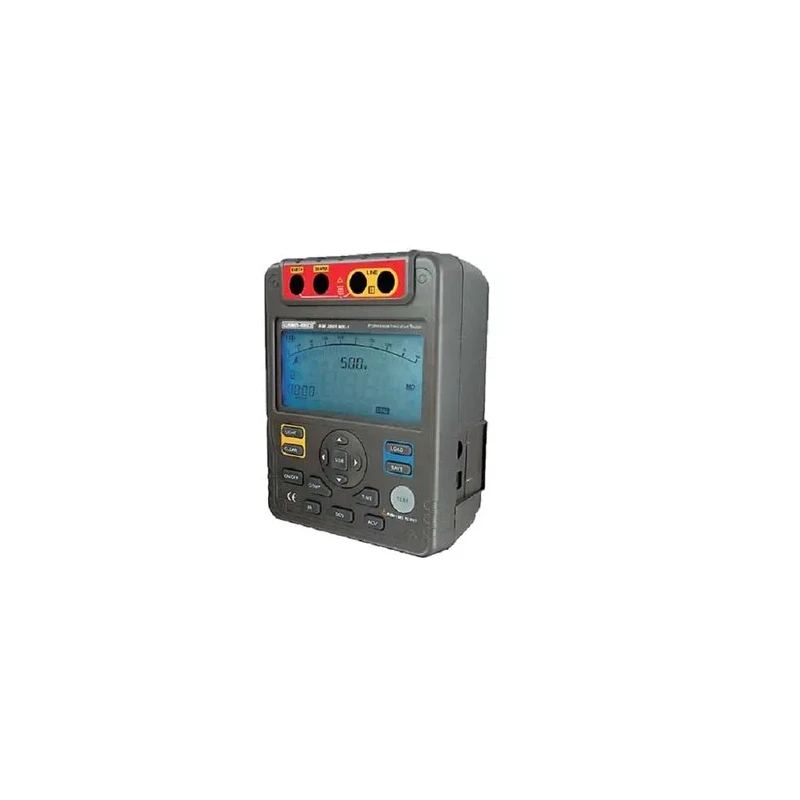

KM-2805 MK1 5 KV Digital Insulation Resistance Tester With PI & DAR, is a handheld device used in resistance and insulation resistance measurement industries. It is provided with a built-in battery source, and a display backlight is present for clear visual reading. The display is an LCD panel with an analog bar graph. This Digital Insulation Resistance Tester can be connected to a computer via a USB interface.It offers good protection against environmental factors like operating temperature and relative humidity. Measurement can be done by setting a specified time within 15 Minutes. Any problem in measurement can be alarmed by the warning symbol. Two sets of alligator clips are provided in this Insulation Resistance Tester - One set of alligator clips is for plug test lead, and another set is for the battery
- Use the compare function to set a pass/fail compare level for the insulation measurements
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KM-2805 MK1 Digital Insulation Resistance Tester measures insulation resistance with a maximum voltage of 5 kV.
It operates within a temperature range of -10 to 40 degrees Celsius and a relative humidity of up to 85%.
The device features a digital display with 999 counts and an analog bar graph, along with a bright backlight for visibility in low light conditions.
This model weighs 2 kg and has dimensions of 202 x 155 x 94 mm.
It can log and recall up to 18 data points for insulation measurements.
It includes a battery indicator that displays the battery condition, ensuring users are aware of the battery status during operation.
Yes, it can be connected to a computer via a USB interface for data transfer and analysis.
The tester has a warning symbol that alerts users to any problems encountered during measurement.
The maximum current consumption is approximately 1.0 A, with an average round of 20 mA.
It comes with two sets of alligator clips: one for the plug test lead and another set for the battery.
The storage temperature range is from -20 to 60 degrees Celsius.
The tester features a compare function that allows users to set a pass/fail level for insulation measurements.
