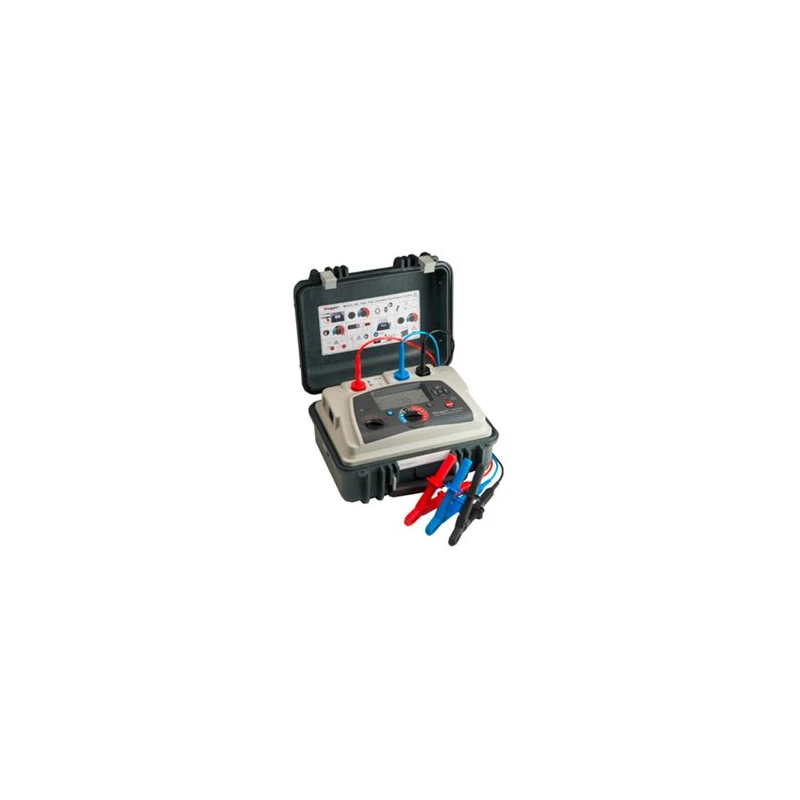

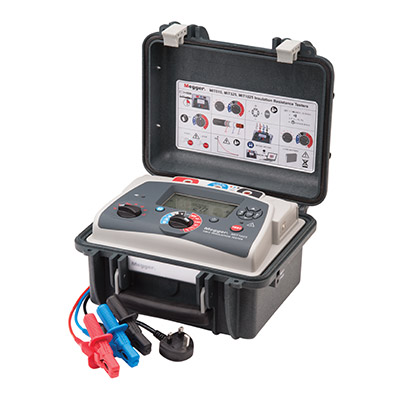

Megger MIT1525 Insulation Tester
Specifications
| Display Type | LCD |
|---|---|
| Power Source | Battery Mains |
| Battery Life | 4.5 hours (typical) continuoustesting at 15 kV with a 100 MO load |
| Battery type | Lithium-Ion |
| Height | 181mm |
| Length | 315mm Dimensions315 x 285 x 181mm |
| Model | MIT1525 |
| Width | 285mm |
| Weight | 4.5kg |
| Maximum Operating Temperature | +50 Degree C |
| Tester Type | Insulation Tester |
| Minimum Operating Temperature | -20 Degree C |
| Test Voltage (V) | 1000 V 2500 V 5000 V 10000 V 15000 V VL |
| Test Current | 6mA |
| Plug Type | Type C |
| Safety Category | CAT IV 600V |
| Maximum Test Voltage (V) | 5000V |
| Minimum Test Voltage (V) | 250V |
| a.c. voltage (auto-ranging) | 90-264 V rms 47- 63 Hz 200 VA |
Key Features
- Ideal for testing and maintenance of high voltage electrical equipment
- Performs insulation resistance tests up to 5 kV with 10 teraohms maximum resistance
- Dedicated voltmeter function measures AC/DC voltages from 30 V to 660 V
- Dual case design with tough outer case and fire-retardant inner case
- High current with 3 mA short circuit current
Product Description
Megger MIT1525 Insulation Tester, is a compact, light 15 kV insulation resistance tester for the diagnostic testing and maintenance of high voltage electrical equipment. It is both smaller and lighter than its predecessor.As well as measuring insulation resistance to 30 too, the MIT1525 also offers various diagnostic tests such as polarisation index, dielectric absorption ratio, step voltage, dielectric discharge, and ramp testing.equipped with lithium-ion fast rechargeable batteries, the instrument has a large, clear, easy-to-read display, making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for separate timer
- Advanced memory, on screen recall and real time clock for date / time stamped results
- Download of on-board results via USB interface
- Recorded temperature (measured by independent instruments) can be saved with test result
- safety rated at CAT IV 600 V (maintained to 3000 m altitude)
