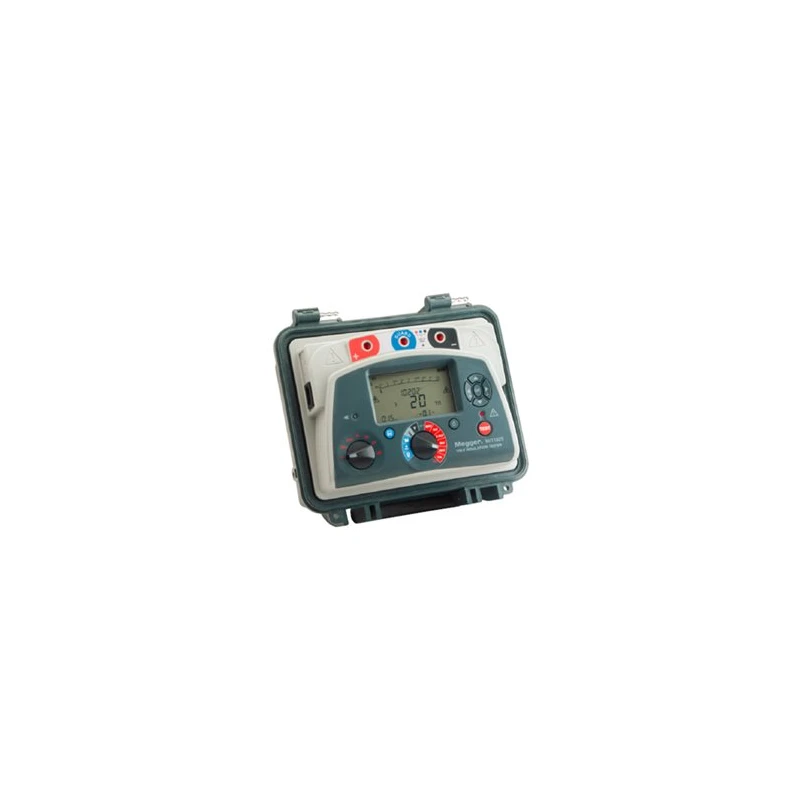

Megger MIT1025 Insulation Tester
Specifications
| Display Type | LCD |
|---|---|
| Power Source | Battery Mains |
| Battery Life | 4.5 hours (typical) continuous testing at 10 kV with a 100 MO load |
| Battery type | Lithium-Ion |
| Height | 181mm |
| Length | 315mm Dimensions 315 x 285 x 181mm |
| Model | MIT1025 |
| Width | 285mm |
| Weight | 4.5kg |
| Maximum Operating Temperature | +50 Degree C |
| Tester Type | Insulation Tester |
| Minimum Operating Temperature | -20 Degree C |
| Test Voltage (V) | 500 V 1000 V 2500 V 5000 V 10000 V VL |
| Test Current | 6mA |
| Plug Type | Type C |
| Safety Category | CAT IV 600V |
| Maximum Test Voltage (V) | 5000V |
| Minimum Test Voltage (V) | 250V |
| a.c. voltage (auto-ranging) | 90-264 V rms 47- 63 Hz 100 VA |
Key Features
- Ideal for testing and maintenance of high voltage electrical equipment
- Performs insulation resistance tests up to 5 kV with 10 teraohms maximum resistance
- Dedicated voltmeter function measures AC/DC voltages from 30 V to 660 V
- Dual case design with tough outer case and fire-retardant inner case
- High current with 3 mA short circuit current
Product Description
Megger MIT1025 Insulation Tester, is a compact, light 10 kV insulation resistance tester for the diagnostic testing and maintenance of high voltage electrical equipment. It is both smaller and lighter than its predecessor.As well as measuring insulation resistance to 20 too, the MIT1025 also offers various diagnostic tests such as polarisation index, dielectric absorption ratio, step voltage, dielectric discharge, and ramp testing. Equipped with lithium-ion fast rechargeable batteries, the instrument has a large, clear, easy-to-read display, making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status, and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for a separate timer.
- Advanced memory, on screen recall and real time clock for date / time stamped results
- Download of on-board results via USB interface
- Recorded temperature (measured by independent instruments) can be saved with test result
- Safety rated at CAT IV 600 V (maintained to 3000 m altitude)
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Megger MIT1025 can measure insulation resistance up to 10 teraohms.
This model offers test voltages of 250 V, 500 V, 1000 V, 2500 V, and 5000 V.
The maximum test current for the MIT1025 is 6 mA.
The operating temperature range for the Megger MIT1025 is from -20°C to +50°C.
The battery life is typically 4.5 hours for continuous testing at 10 kV with a 100 MΩ load.
It features an LCD display for clear visibility of test results.
The dimensions of the MIT1025 are 315mm in length, 285mm in width, and 181mm in height, with a weight of 4.5 kg.
It is safety rated at CAT IV 600 V.
Yes, it can measure AC/DC voltages from 30 V to 660 V.
This model can be powered by a lithium-ion battery or mains power.
It can perform various diagnostic tests including polarisation index, dielectric absorption ratio, step voltage, dielectric discharge, and ramp testing.
Test results can be downloaded via a USB interface.
