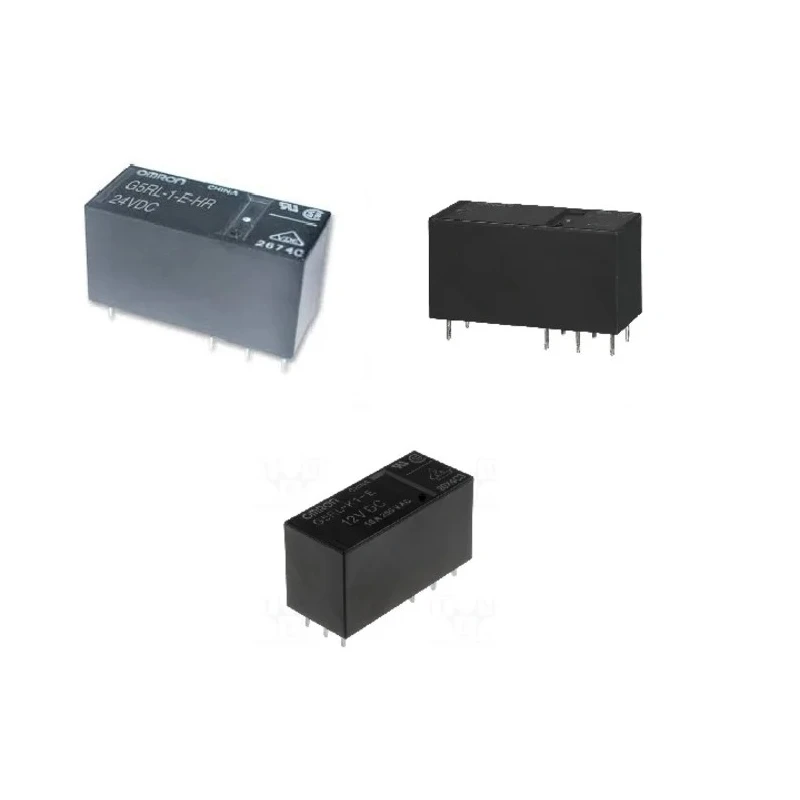

Omron Power Relay PCB Mount 24V DC Coil, 16A Switching Current, SPDT G5RL-1-E-HR DC24

Omron G5RL-1-E-HR DC24 power relay is a low-profile PCB mount relay designed for industrial and automation applications requiring reliable switching of electrical loads. It uses a 24V DC coil and features a single pole double throw (SPDT) contact configuration capable of switching currents up to 16A. The compact form factor, with dimensions 29mm length, 12.7mm width, and 15.7mm height, makes it suitable for integration into a wide range of electronic assemblies.

The relay’s contacts are coated with silver alloy, enhancing electrical conductivity and ensuring long service life. It is designed to operate safely across an ambient temperature range of -40°C to 85°C, making it suitable for harsh operating environments. The coil resistance is 1.4 kΩ with a coil power consumption of 750 mW, allowing efficient electromagnetic actuation.

This relay supports switching voltages of 24V DC and 24V AC, providing flexibility for various control circuit requirements. With a contact resistance of just 100 mΩ, the relay offers low loss switching performance. It is RoHS compliant, aligning with modern environmental regulations.

Applications include use in industrial control systems, automation equipment, instrumentation, telecommunications, and power management systems. The relay’s solder terminal type facilitates easy PCB assembly in mass production.

Country of origin for this product is China, and it is supplied new, ensuring optimal performance and reliability. The Omron G5RL series is trusted for its high quality and durability in demanding electrical and electronic applications.

The coil voltage is 24 volts DC, ensuring efficient operation. It supports a switching current of 16 amperes for robust electrical load handling. Compact dimensions with a length of 29mm, width of 12.7mm, and height of 15.7mm suit PCB installations.

The relay includes silver alloy contacts for enhanced conductivity and durability. Designed for a wide temperature range from -40°C to 85°C for versatile industrial use. Features coil resistance of 1.4 kiloohms and coil power consumption of 750 milliwatts.

Switching voltages support 24V DC and 24V AC for flexible circuit designs. The relay complies with RoHS standards, ensuring environmental safety. Contact resistance is rated at 100 milliohms for minimal signal loss. Explore more Power Relays and related electronic components in the Electronics & Electricals category at EnvMart for diverse industrial, laboratory, and commercial applications.
