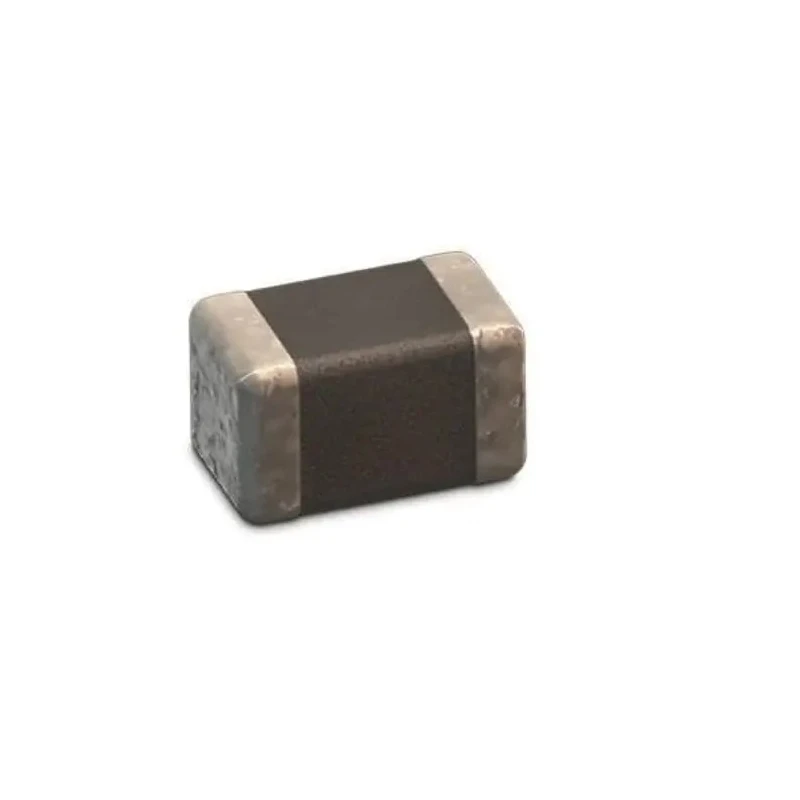

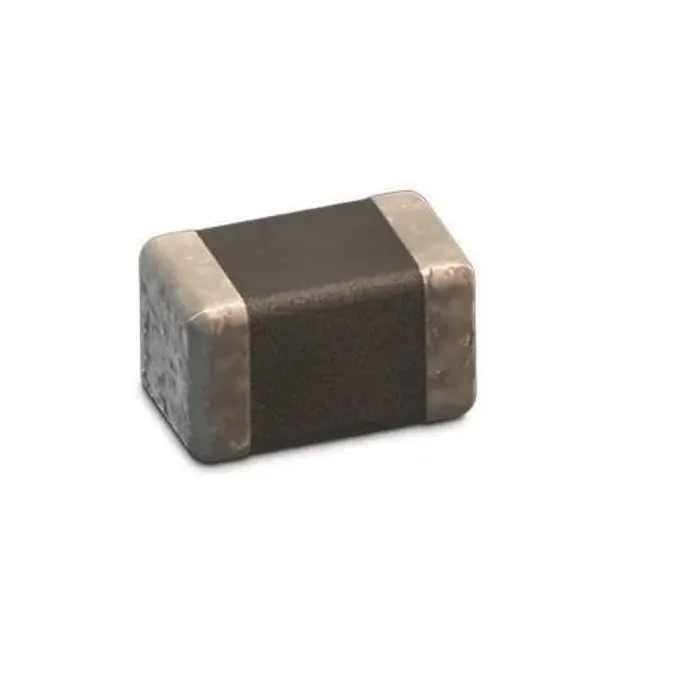

Wurth Elektronik 10 pF Multilayer Ceramic Capacitor, 3kV dc Voltage, ±5 % Tolerance, Surface Mount 885342010001

Wurth Elektronik 885342010001 is a 10 pF multilayer ceramic capacitor designed for surface mount applications with a high voltage rating of 3 kV DC and a tolerance of ±5 %.

This component uses a C0G dielectric material known for its excellent stability and low losses, making it suitable for precise electronic applications including EFT and surge protection circuits.

The capacitor is constructed with a stacked multilayer design packaged in the industry-standard 1808 case size, measuring 4.5 mm in length, 2.03 mm in width, and 1.25 mm in height, facilitating integration into compact PCBs.

It supports various soldering methods including both wave and reflow soldering processes due to its solder termination type, providing manufacturing flexibility. The component's operating temperature range from -55°C to 120°C ensures reliable performance in harsh industrial, electronic, and automotive environments.

Certified to meet RoHS and REACH standards, this capacitor supports environmentally friendly manufacturing requirements. Typical applications include ports protection against electrical fast transients (EFT), surge and voltage blocking, high voltage coupling, and snubber circuits.

This multilayer ceramic capacitor offers 10 pF capacitance with a 3 kV DC voltage rating. The C0G dielectric provides exceptional thermal and frequency stability. Packaged in tape and reel format for automated assembly efficiency.

Compliance with REACH and RoHS regulations. Dimensions of 4.5 mm x 2.03 mm x 1.25 mm facilitate compact PCB designs. Wide operating temperature range of -55°C to 120°C. Suppression Class II component, series CSGP, suitable for surge suppression circuits.

Manufactured in Taiwan, Province Of China, ensuring high quality production. Explore the Wurth Elektronik range and other Multilayer Ceramic Capacitors available at EnvMart for your electronic component needs.
