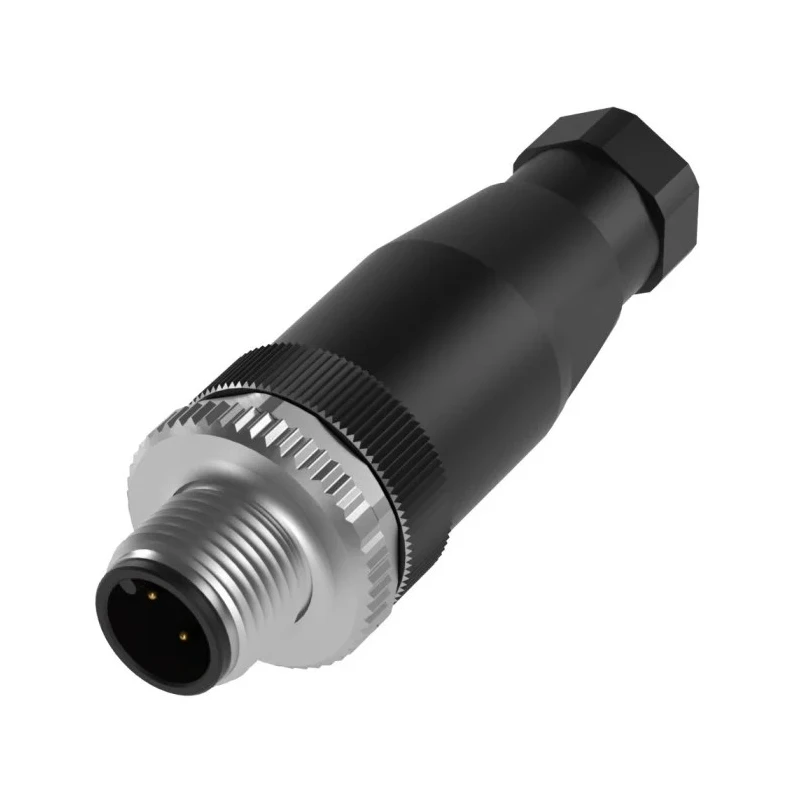

BALLUFF Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Plug, IP67, 4A Current, Voltage 125V BCC06YA

Free Delivery in India | Lowest Global Shipping Charges

BALLUFF Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Plug, IP67, 4A Current, Voltage 125V BCC06YA

Name: BALLUFF Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Plug, IP67, 4A Current, Voltage 125V BCC06YA
Brand: BALLUFF
SKU: 178291
Price: 15.68 USD
Availability: InStock



Category Circular Connector Brand BALLUFF Condition New

Specifications

Country of Origin	Germany
Voltage	125, 125V ac
Brand	BALLUFF
Orientation	Straight
Current	4A
Model	BCC06YA
IP Rating	IP67
Mount Type	Cable
Housing Material	Die Cast Zinc, Polyamide
Contact Material	Brass
Series	BCC M435-0000-2A-000-41X575-000
Termination Type	Screw
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Standards/Approvals	CE cURus EAC WEEE
Number of Contacts	5
Mating Type	Threaded
Connector Size	M12
Plug/Socket	Plug
Coding	A

Key Features

Features 5 connectable contacts for secure signal and power transmission.
Designed with a straight, threaded M12 male plug configuration.
Supports operating voltage up to 125V AC/DC ensuring industrial compatibility.
Housing made from die cast zinc and polyamide for durable performance.
IP67 rated for high protection against dust and water ingress.
Suitable for operating temperatures from -40°C to 85°C.
Termination via screw terminals accepting 0.14 to 0.75 mm² wire cross-section.
Contact material is brass for reliable conductivity and corrosion resistance.

Product Description

BALLUFF BCC06YA Circular Connector is an industrial-grade 5-contact cable mount plug designed for secure transmission of signals, data, and power in harsh environments. Its M12x1 male, straight, 5-pin A-coded interface supports currents up to 4A at temperatures up to 40°C. The connector features a robust die cast zinc and polyamide housing, providing excellent mechanical strength and environmental protection with an IP67 rating.

The screw terminal termination accommodates wire cross-sections from 0.14 to 0.75 mm², suitable for cable diameters of 4 to 6 mm. This cable mount plug operates reliably over a wide temperature range, from -40°C to 85°C, and is designed for threaded mating to ensure a secure connection. Contacts are made of brass to maintain high conductivity and resist corrosion.

This connector is ideal for industrial automation, manufacturing, robotics, machine tooling, and electrical equipment applications where dependable and durable connections are essential. Its certification under CE, cURus, EAC, and WEEE ensures compliance with international safety and environmental standards.

Provides 5 contacts for versatile connection needs in industrial systems. Robust M12 straight male plug with A-coding for standardization. Rated for 4A current at 125 V AC/DC operation ensuring versatility. Durable housing materials offer resistance against mechanical stress and environmental factors.

IP67 protection rating suitable for demanding industrial environments. Wide operating temperature from -40°C to 85°C guarantees reliability in extreme environments. Screw terminal termination allows easy and secure wiring.

Brass contacts enhance electrical performance and longevity. Compliant with multiple international standards for quality and safety. Manufactured in Germany with strict quality controls. Explore more industrial Circular Connectors and related power connectors on EnvMart for your automation and power transmission needs.
