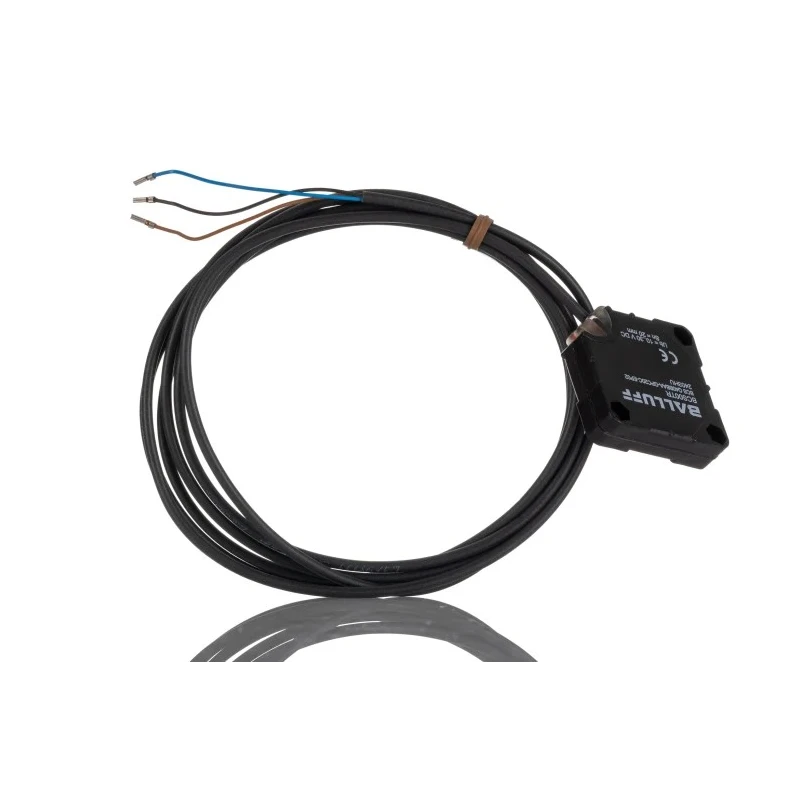

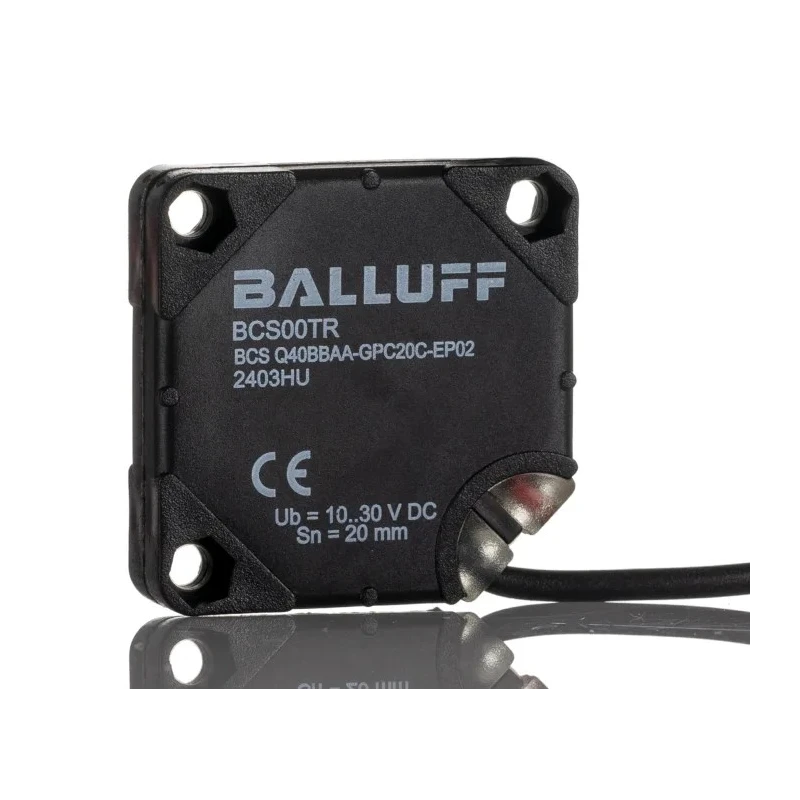

BALLUFF Block Capacitive Proximity Sensor Q40 20 mm PNP/NPN 100mA 30V DC BCS Q40BBAA-GPC20C-EP02

Free Delivery in India | Lowest Global Shipping Charges

BALLUFF Block Capacitive Proximity Sensor Q40 20 mm PNP/NPN 100mA 30V DC BCS Q40BBAA-GPC20C-EP02

Name: BALLUFF Block Capacitive Proximity Sensor Q40 20 mm PNP/NPN 100mA 30V DC BCS Q40BBAA-GPC20C-EP02
Brand: BALLUFF
SKU: 136027
Price: 102.33 USD
Availability: InStock



Category Capacitive Proximity Sensor Brand BALLUFF Condition New

Specifications

Country of Origin	Hungary
Brand	BALLUFF
Length	40mm
Model	BCS Q40BBAA-GPC20C-EP02
Depth	10mm
IP Rating	IP67
Width	40mm
Mount Type	Flush
Housing Material	Polybutylene Terephthalate
Output type	PNP/NPN
Series	Q40
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-5°C
Switching Current	100mA
Terminal type	Pre-Cabled
Body Style	Block
Maximum dc Voltage	30V dc
Shielding	Shielded
Maximum Switching Frequency	100Hz
Standards/Approvals	CE, cULus Listed
Maximum Supply Voltage	30V
Maximum Detection	20mm

Key Features

Block style sensor with a compact 40 mm length and 40 mm width.
Flush mounting with IP67 protection ensures reliable operation in harsh environments.
Dual output type with PNP/NPN configuration supports up to 100 mA switching current.
Operates at a maximum supply voltage of 30 V DC and frequency up to 100 Hz.
Constructed with durable polybutylene terephthalate housing, providing chemical and temperature resistance.

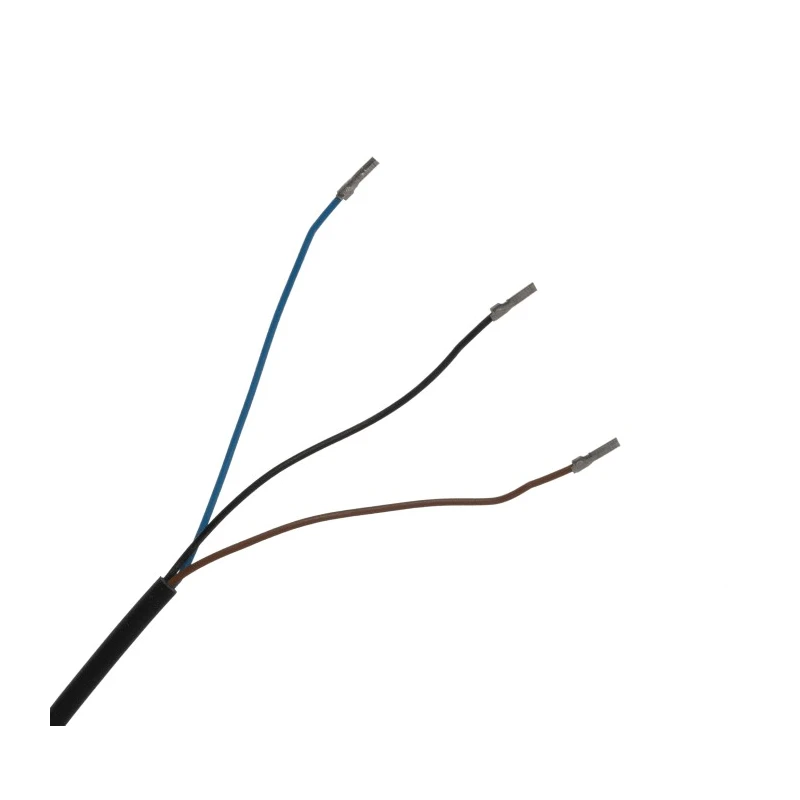

Pre-cabled terminal type for simplified installation.
Wide operating temperature range from -5°C to 85°C.
Short circuit and polarity reversal protected for enhanced safety.

Product Description

BALLUFF BCS Q40BBAA-GPC20C-EP02 block capacitive proximity sensor features a 40 mm length and 40 mm width with a 10 mm depth body style. It is constructed with a robust polybutylene terephthalate housing and provides flush mounting capability with IP67 ingress protection rating, suitable for industrial and harsh environment applications.

This sensor operates with a maximum DC voltage of 30 V and can detect objects or material levels within a 20 mm range. It supports PNP/NPN output types with a switching current up to 100 mA and a maximum switching frequency of 100 Hz, offering versatile switching options for automation control systems.

Designed for monitoring stack heights, levels, and presence detection in materials such as glass, plastic, and paper packages, this sensor provides reliable, shielded detection unaffected by dust or surface reflections. Its pre-cabled terminal type simplifies wiring and installation.

The sensor is short circuit-protected and polarity-reversal protected, offering improved reliability and safety during operation. Operating temperature ranges from -5°C to 85°C accommodate a wide variety of industrial environments.

Certified with CE and cULus listings, this sensor complies with relevant standards for industrial automation components. Country of origin is Hungary. Block style with 40 x 40 x 10 mm dimensions and flush mount design. Polybutylene terephthalate housing for durability and chemical resistance.

Detects objects up to 20 mm distance with shielded sensing technology. PNP/NPN output type enabling flexible connectivity options. Operating voltage up to 30 V DC with switching frequency of 100 Hz. IP67 protection rating suitable for dust and water ingress protection.

Short circuit and polarity reversal protection ensure operational safety. Recommended for industrial, automation, manufacturing, and packaging applications. Explore more Capacitive Proximity Sensors on EnvMart for precise detection needs in industrial and automation environments.
