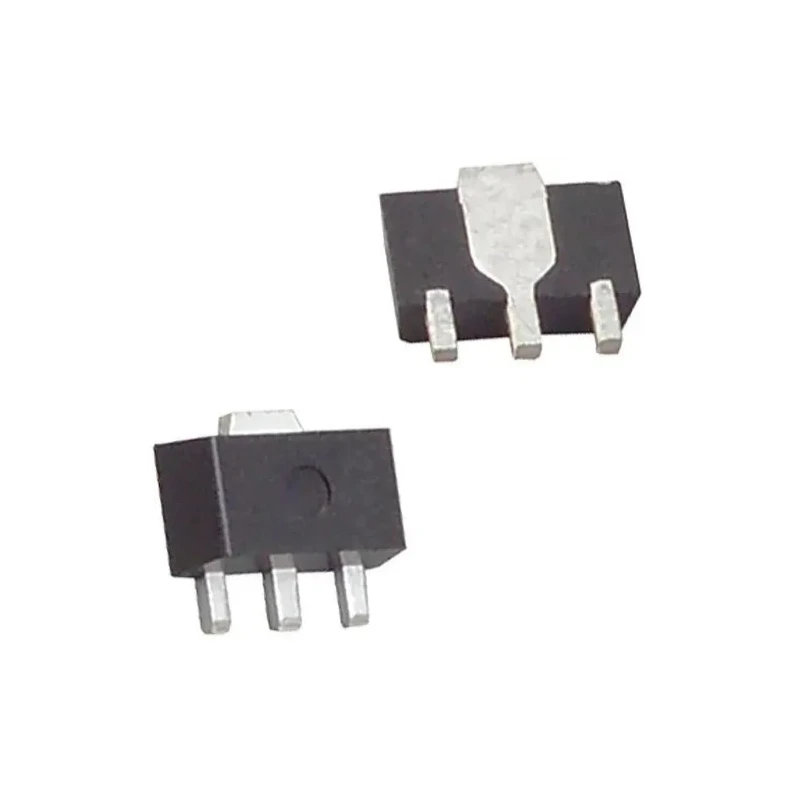

Nisshinbo Micro Devices 1-Channel Linear Voltage Regulator, 100mA, 3V, 3-Pin NJM78L03UA-TE1

Nisshinbo Micro Devices NJM78L03UA-TE1 is a high-performance, single-channel linear voltage regulator designed to provide a stable 3V output at an output current of 100mA. It is implemented using the advanced JRC Planar epitaxial process which enhances durability and performance by enabling internal current limiting and thermal shutdown features, making the device highly reliable and essentially indestructible.

This voltage regulator supports surface mount technology with a 3-pin configuration, enabling easy integration into compact electronic circuit designs. It efficiently maintains line regulation of 125 mV and load regulation of 50 mV across input voltages ranging from 4V to 40V, making it versatile for multiple power management scenarios.

The device operates safely within a temperature range of -40°C to 125°C, making it suitable for use in a wide range of industrial, electronic, and power management applications where thermal stability is critical. Featuring a low quiescent current of 6 mA, it ensures minimal power loss in idle states, thus contributing to energy efficiency.

Equipped with RoHS compliance, the NJM78L03UA-TE1 supports environmental safety standards required in modern electronic manufacturing. Its internal thermal overload protection and excellent ripple rejection capabilities further enhance system reliability by protecting against thermal and electrical instabilities.

This linear voltage regulator supports surface mount mounting type. It provides excellent line regulation at 125 mV and load regulation at 50 mV. The device operates within a wide input voltage range between 4V and 40V. It offers a quiescent current of 6 mA ensuring low power consumption.

It has a 3-pin configuration suitable for compact designs. The regulator supports a maximum operating temperature up to 125°C and minimum operating temperature down to -40°C. Constructed using JRC Planar epitaxial process with internal current limiting and thermal shutdown functions.

Complies with RoHS standards to support environmental safety. Designed for reliability with internal thermal overload protection and excellent ripple rejection. Ideal for power management in various electronic and industrial applications.

This component is engineered for power management in industrial automation, consumer electronics, communication devices, instrumentation, and other electronics requiring precise voltage regulation. Incorporating the NJM78L03UA-TE1 into your product design will ensure stable voltage output with protection against thermal and current overload conditions.
