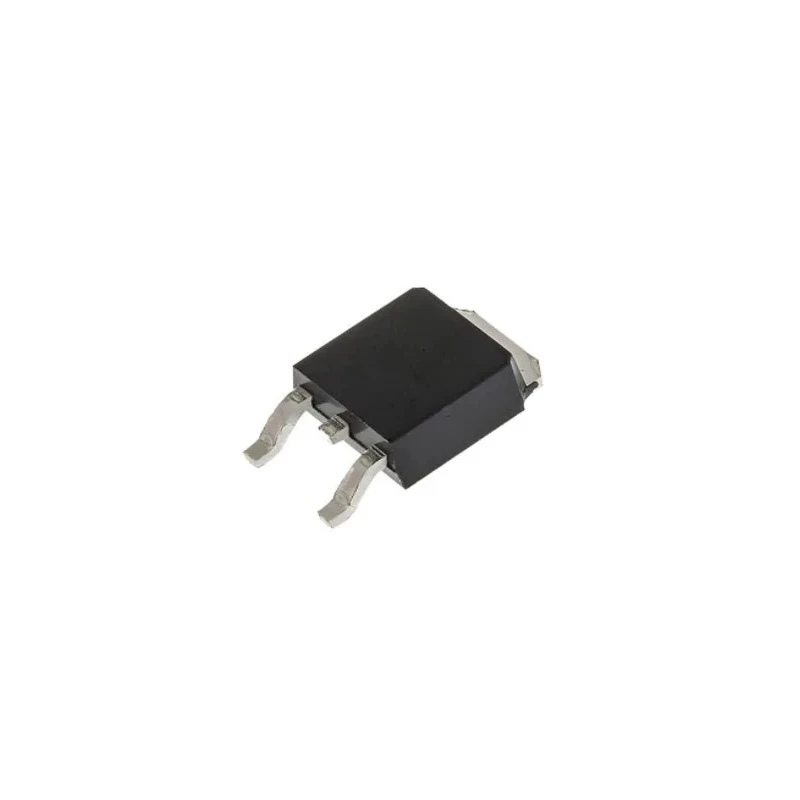

Nisshinbo Micro Devices 1-Channel Linear Voltage Regulator 9V 1.5A SOT-89-3 NJM7809DL1A-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM7809DL1A-TE1 |
| Mount Type | Surface |
| Series | NJM7800 |
| Output Current | 1.5A |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-89-3 |
| Load Regulation | 180 mV |
| Minimum Operating Temperature | -40°C |
| Regulator Type | Linear Voltage |
| Number of outputs | 1 |
| Maximum Input Voltage | 35V |
| Output Voltage | 9V |
| Quiescent Current | 6mA |
| Line Regulation | 180 mV |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4V |
| Pin Count | 3 |
Key Features
- Constructed using JRC planar epitaxial process for enhanced performance and reliability.
- Features internal current limiting and thermal shutdown for robust protection.
- Provides excellent ripple rejection for stable voltage output.
- Surface mount type suitable for compact electronic designs.
- Operates over a wide temperature range from -40°C to 125°C.
- Complies with RoHS standards ensuring environmental safety.
- Designed for industrial and electronic component applications.
- Suitable for power management ICs in various electronic devices.
Product Description
Nisshinbo Micro Devices NJM7809DL1A-TE1 is a 1-channel linear voltage regulator designed to deliver a stable 9V output voltage with an output current of 1.5A. The device is packaged in a compact SOT-89-3 3-pin surface mount package, making it ideal for integration in space-constrained electronic circuits.
This linear voltage regulator is constructed using the latest JRC planar epitaxial process, offering high reliability with built-in internal current limiting and thermal shutdown protection features. These protections ensure the device can endure fault conditions, making it virtually indestructible in operating environments.
The NJM7809DL1A-TE1 provides excellent ripple rejection which leads to stable and noise-free voltage output, critical for sensitive electronic components. It functions efficiently within a wide operating temperature range from -40°C to 125°C, making it suitable for diverse industrial, laboratory, and consumer electronic applications.
Its surface mount design facilitates modern PCB assembly processes, allowing efficient production and miniaturization of electronic devices. This regulator complies with RoHS standards, ensuring it meets environmental and safety regulations.
Applications for this product include use in power management for electronic components, industrial control circuits, consumer electronics, and other circuits requiring a precise regulated voltage supply.
Constructed using JRC planar epitaxial process for enhanced performance and reliability. Featuring internal current limiting and thermal shutdown for safe operation. Delivers 9V output voltage at 1.5A output current capacity.
Compact SOT-89-3 surface mount package with 3 pins for easy installation. Wide operating temperature range of -40°C to 125°C. Complies with RoHS environmental standards. Excellent ripple rejection ensures stable voltage supply.
Ideal for industrial, laboratory, and consumer electronics power management. Explore more power management solutions and Voltage Regulators on EnvMart for efficient and reliable electronic component designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 9V with a maximum output current of 1.5A.
The maximum input voltage for the NJM7809DL1A-TE1 is 35V.
It operates efficiently over a wide temperature range from -40°C to 125°C.
This unit is packaged in a compact SOT-89-3 surface mount package with 3 pins.
Yes, it includes internal current limiting and thermal shutdown for robust protection.
The load regulation is 180 mV, and the line regulation is also 180 mV.
Yes, it complies with RoHS standards, ensuring environmental safety.
The quiescent current for the NJM7809DL1A-TE1 is 6mA.
It is designed for power management in industrial control circuits, consumer electronics, and other circuits requiring a precise regulated voltage supply.
This model belongs to the NJM7800 series of linear voltage regulators.
It supports surface mounting, making it suitable for compact electronic designs.
The country of origin for this product is India.
