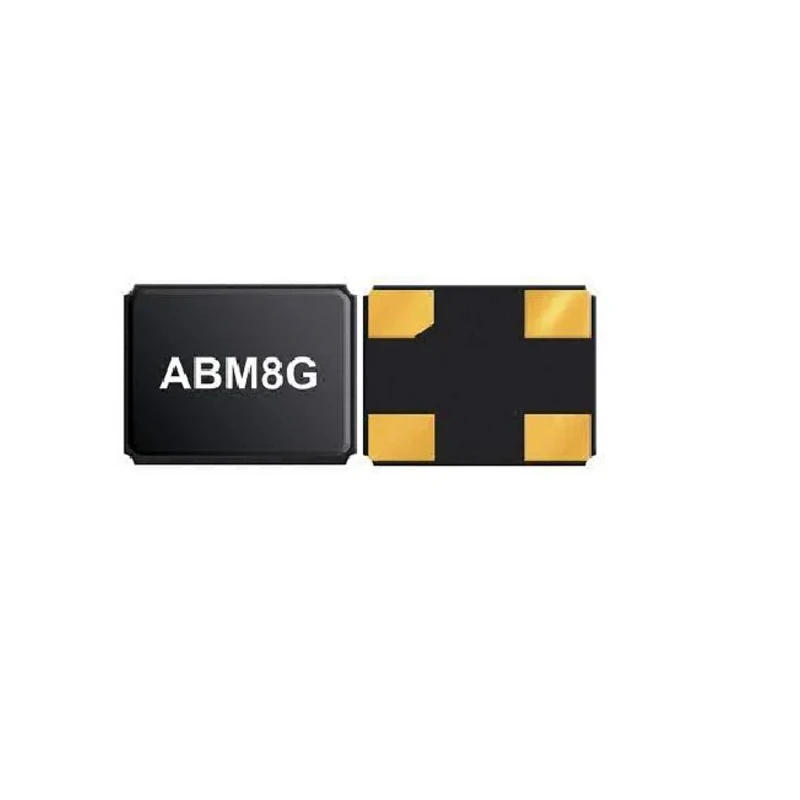

Abracon 26 MHz Crystal ±50 ppm Surface Mount 4-Pin 1 mm Height 3.2 mm Length 2.5 mm Width ABM8G-26.000MHZ-B4Y-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 26 MHz Crystal ±50 ppm Surface Mount 4-Pin 1 mm Height 3.2 mm Length 2.5 mm Width ABM8G-26.000MHZ-B4Y-T

Name: Abracon 26 MHz Crystal ±50 ppm Surface Mount 4-Pin 1 mm Height 3.2 mm Length 2.5 mm Width ABM8G-26.000MHZ-B4Y-T
Brand: Abracon
SKU: 177281
Price: 0.56 USD
Availability: InStock



Category Electronic Components Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	1mm
Length	3.2mm
Model	ABM8G-26.000MHZ-B4Y-T
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	ABM8G
Maximum Operating Temperature	60°C
Package Type	Surface Mount
Minimum Operating Temperature	-10°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	26MHz
Load Capacitance	10pF
Series Resistance	60Ω

Key Features

Operates at a standard frequency of 26 MHz for accurate timing.
Packaged in tape and reel format for automated assembly.
Low profile with 1 mm height suits thin equipment designs.
Glass sealed ceramic package ensures high reliability and temperature performance.
Supports operating temperature from -10°C to +60°C for varied environments.
Load capacitance is specified at 10 pF compatible with many oscillator circuits.
Series resistance of 60 Ohms contributes to stable oscillation.
IR reflow compatible enabling SMT soldering processes.

Product Description

The Abracon ABM8G-26.000MHZ-B4Y-T crystal unit operates at a precise 26 MHz frequency with a tolerance of ±50 ppm and frequency stability within ±30 ppm, making it ideal for timing and oscillator circuits in electronic devices.

This ultra-miniature surface mount device features a compact 4-pin ceramic glass sealed package measuring 3.2 mm length, 2.5 mm width, and 1 mm height, optimized for high-density PCB layouts and thin profile equipment.

The crystal is designed to withstand operating temperatures from -10°C to 60°C, suitable for reliable operation across a wide range of industrial and commercial environments. Boasting a 10 pF load capacitance and 60Ω series resistance, it ensures consistent stable oscillation performance and is compatible with standard oscillator circuit requirements.

Its glass sealed package assures high reliability and durability, emphasizing resistance to environmental and mechanical stresses, making it appropriate for telecommunications, modems, wireless devices, test and measurement equipment, and PCMCIA applications.

The device is RoHS compliant, supporting environmentally sound manufacturing practices, and it comes packaged in tape and reel format allowing automated assembly and soldering via IR reflow methods.

With these features, the ABM8G series is an effective low-cost solution to ABM8 crystal applications requiring tight frequency tolerances and stability in compact form factors. Operates at 26 MHz frequency with ±50 ppm tolerance.

Compact 4-pin surface mount package sized 3.2 x 2.5 x 1 mm. Load capacitance of 10 pF ensures oscillator compatibility. Glass sealed ceramic construction enhances durability. Operating temperature range from -10°C to 60°C.

Series resistance of 60 Ω for stable performance. RoHS compliant packaging supports environmental standards. Suitable for modems, wireless, communication, and test equipment.
