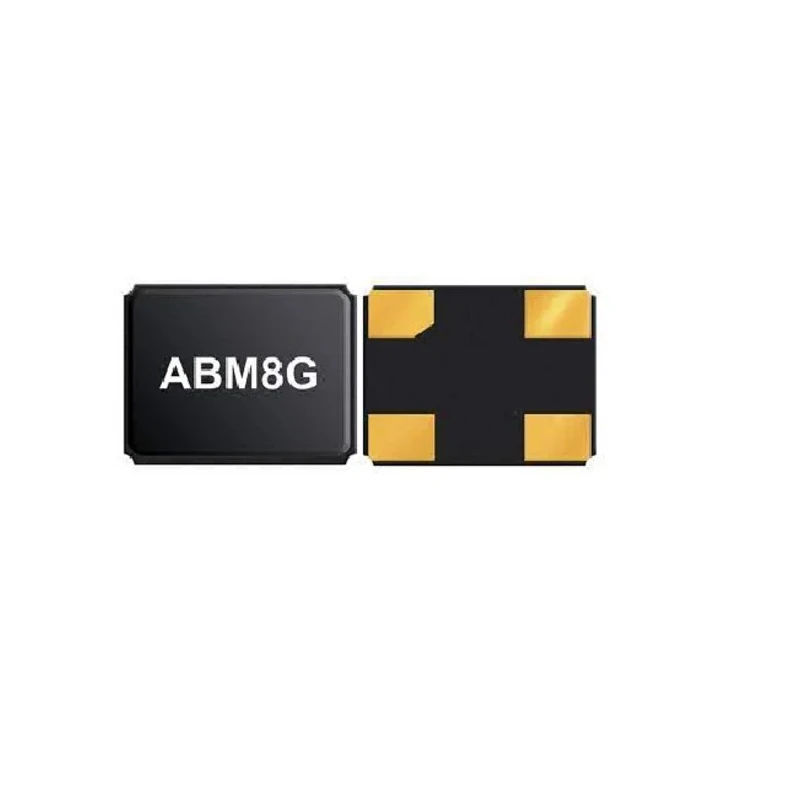

Abracon 27 MHz Crystal ±50 ppm Surface Mount 4-Pin 1 mm Height 3.2 mm Length 2.5 mm Width ABM8G-27.000MHZ-18-D2Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1mm |
| Length | 3.2mm |
| Model | ABM8G-27.000MHZ-18-D2Y-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8G |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 27MHz |
| Load Capacitance | 18pF |
| Series Resistance | 60Ω |
Key Features
- Standard frequency of 27 MHz ensures consistent oscillation signals.
- ±50 ppm frequency tolerance with ±30 ppm stability for accurate performance.
- Surface mount package with a compact 3.2 mm length, 2.5 mm width, and 1 mm height.
- Low series resistance of 60Ω reduces signal loss.
- Temperature range from -10°C to 60°C suitable for various industrial environments.
- RoHS compliant with glass-sealed ceramic package for high reliability.
- Ideal for modems, communication equipment, test devices, and wireless applications.
- Tape and reel packaging facilitates automated insertion and production efficiency.
Product Description
Abracon ABM8G-27.000MHZ-18-D2Y-T is a 27 MHz crystal oscillator featuring a ±50 ppm frequency tolerance and ±30 ppm stability, optimized for surface mount applications. This ultra-miniature ceramic glass sealed SMD crystal provides a glass-sealed package ensuring high reliability and supports high temperature operation up to 60°C.
The compact dimensions of 3.2 mm length, 2.5 mm width, and 1 mm height make it suitable for use in high density and thin electronic equipment. Low series resistance of 60Ω offers enhanced signal quality, making it a preferred choice for modems, communication devices, test equipment, PCMCIA, and wireless applications.
The ABM8G series supports IR reflow soldering processes and comes in tape and reel packaging, supporting efficient manufacturing workflows. Standard frequency: 27 MHz. Frequency tolerance: ±50 ppm. Frequency stability: ±30 ppm.
Operating temperature range: -10°C to 60°C. Package type: surface mount glass sealed ceramic. Number of pins: 4. Series resistance: 60Ω max. Packaging: tape and reel. This crystal oscillator is suited for industrial, communication, and electronic manufacturing applications requiring precise frequency control.
Explore more Electronic Components and Crystal Units at EnvMart for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this oscillator is 27 MHz, ensuring consistent oscillation signals.
This model has compact dimensions of 3.2 mm in length, 2.5 mm in width, and 1 mm in height.
It features a frequency tolerance of ±50 ppm and frequency stability of ±30 ppm for accurate performance.
The maximum operating temperature for this crystal oscillator is 60°C.
It is packaged in tape and reel format, which facilitates automated insertion and production efficiency.
The series resistance of this model is 60Ω, which helps reduce signal loss.
The operating temperature range for this unit is from -10°C to 60°C, making it suitable for various industrial environments.
This model has a pin count of 4.
Yes, this crystal oscillator is RoHS compliant, ensuring it meets environmental standards.
It is ideal for use in modems, communication equipment, test devices, and wireless applications.
This model uses a surface mount type, suitable for high-density electronic equipment.
The load capacitance for this crystal is 18 pF.
