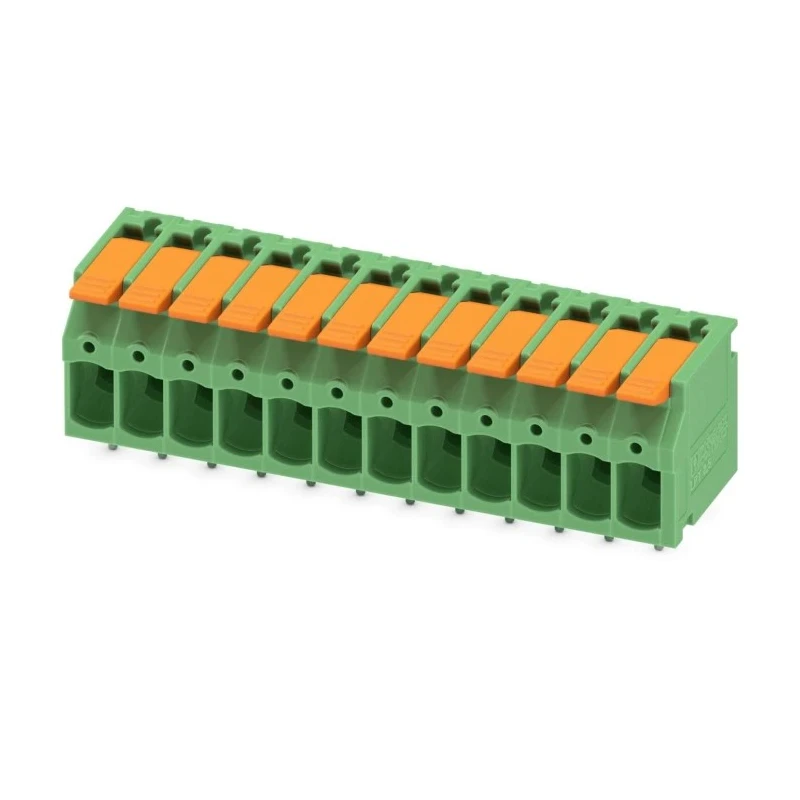

Phoenix Contact LPT Series PCB Terminal Block 12-Contact 5 mm Pitch 1 Row 400V 24A 1190310

Phoenix Contact 1190310 PCB Terminal Block is a reliable and robust connector designed for use in electronic components and power connector assemblies. It features 12 contacts arranged in a single row with a precise 5 mm pitch, supporting efficient printed circuit board (PCB) layouts.

The terminal block employs a push-in connection method, which significantly reduces wiring time by eliminating the need for tools, while ensuring a secure and stable wire connection. Its green polyamide housing offers durability and high-quality electrical insulation suitable for demanding industrial environments.

Designed for straight orientation, this component supports wire cross-sectional areas ranging from 0.2 mm² to 4 mm² and accommodates American Wire Gauge sizes from 24 AWG to 12 AWG. It is rated for a maximum current of 24 amperes and a voltage of 400 volts, complying with IEC standards to guarantee safety and performance in various applications.

The compact form factor measures 17.8 mm in length, 61.5 mm in width, and 20.24 mm in depth, enabling versatile usage in tight space PCB designs. The Phoenix Contact LPT Series ensures defined contact force for reliable electrical connections that maintain stability over long-term operation.

The terminal block supports a maximum current of 24 amperes for high-performance applications. Efficient push-in wire connection reduces installation time and enhances productivity. Durable polyamide housing provides electrical insulation and mechanical robustness.

Supports wire sizes from 0.2 mm² to 4 mm² and AWG sizes 24 to 12 for compatibility. Compact size suitable for modern PCB designs requiring reliable terminal connections. Complies with IEC standards ensuring industry-grade quality and safety.

Green coloration aids in identification and conformity with electrical wiring standards.

This PCB terminal block is ideal for industrial, electronics manufacturing, electrical power distribution, and control system applications where secure and efficient PCB wiring is essential. It is manufactured in Poland and is part of the trusted Phoenix Contact LPT series.
