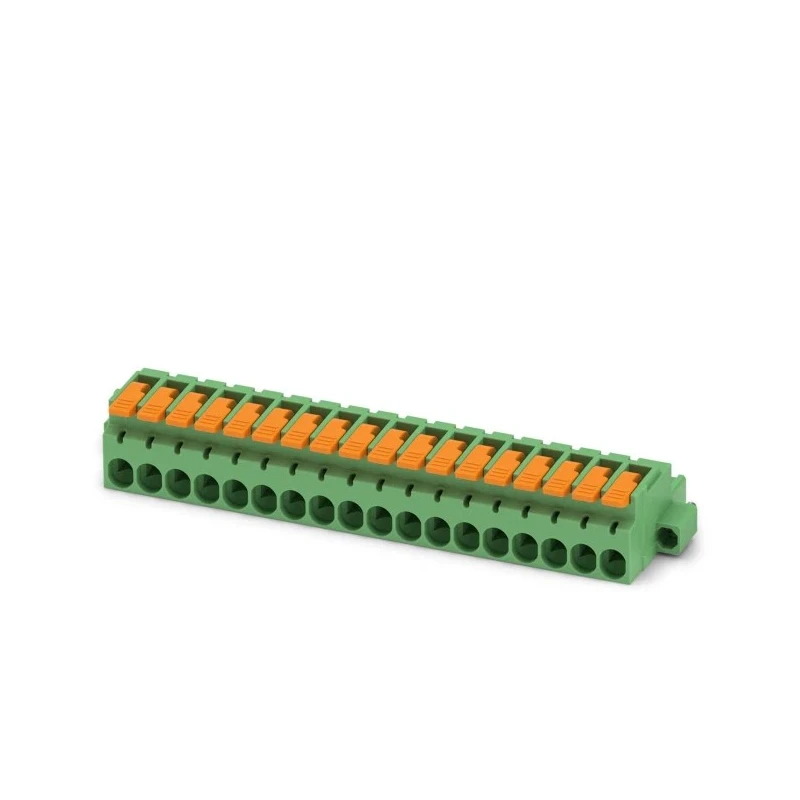

Phoenix Contact Pluggable Terminal Block, 18-Contact, 5.08 mm Pitch, 1 Row, 16 A Current, 320 V, Polyamide Housing 1110647

The Phoenix Contact 1110647 pluggable terminal block is an industrial-grade connector designed for efficient and reliable electrical wiring in various applications including electronics, industrial automation, and power distribution.

Featuring 18 contacts in a single row with a 5.08 mm pitch, this female connector accommodates wire sizes from 0.2 mm² up to 2.5 mm², supporting either small or moderate gauge wires. Its push-in connection mechanism allows for quick and secure wiring without the need for tools, while integrated levers provide visual feedback for secure clamping. The terminal block supports a nominal current of 16 A and voltage up to 320 V, suitable for medium-power applications.

The housing is made of tough polyamide material, providing excellent insulation, chemical resistance, and mechanical strength. The green color aids in easy wire identification and system organization. Furthermore, the connector’s compact design with a width of 101.62 mm, a length of 27.37 mm, and a depth of 15.39 mm enables efficient PCB mounting and space-saving layout.

Engineered to withstand harsh conditions, it operates reliably in ambient temperatures ranging from -40 °C to 105 °C. This product conforms to international safety and quality standards including UL Recognised, cULus Recognised, and VDE certifications, guaranteeing safe use in industrial and commercial environments.

This terminal block features 18 contacts arranged in a single row with a pitch of 5.08 mm. It supports a nominal current rating of 16 A and a voltage rating of 320 V. Constructed with durable polyamide housing ensuring insulation and mechanical stability.

Uses a time-saving push-in wire connection with integrated lever for simple clamping and testing. Supports wire sizes from 0.2 mm² to 2.5 mm² (AWG 26 to AWG 12). Operating temperature range from -40 °C to 105 °C for harsh environmental conditions.

Compact dimensions suitable for PCB mounting: 101.62 mm width, 27.37 mm length, 15.39 mm depth. Certified to international standards UL Recognised, cULus Recognised, and VDE.

This Pluggable Terminal Block is ideal for industrial machinery, automation systems, laboratory equipment, and commercial electronics where dependable and quick wiring connections are critical.
