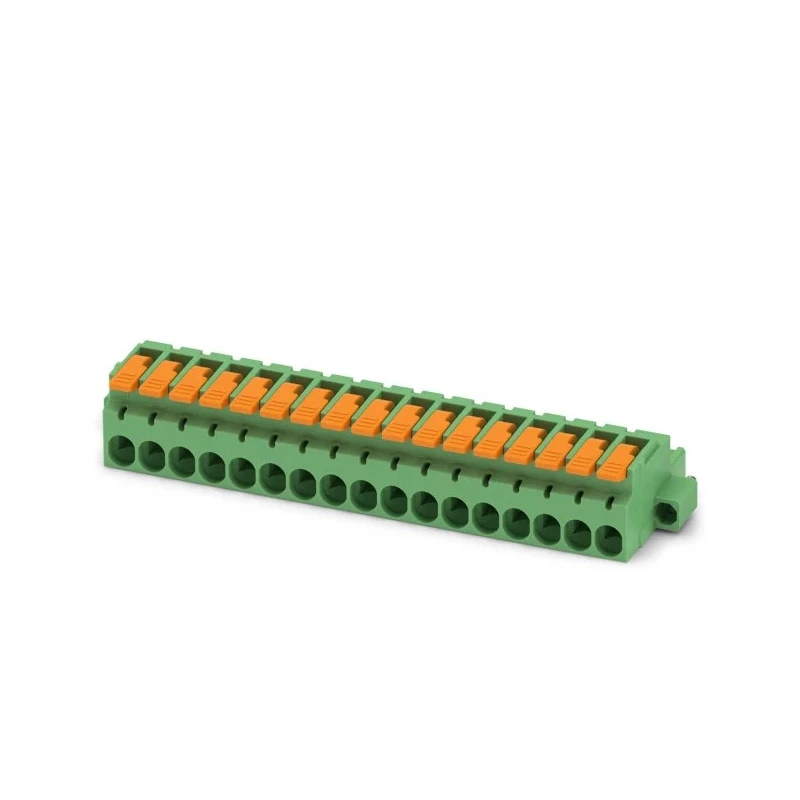

Phoenix Contact Pluggable Terminal Block, 17-Contact, 5.08 mm Pitch, 1 Row, 16 A Current, 320 V, Polyamide Housing 1110646

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Pluggable Terminal Block, 17-Contact, 5.08 mm Pitch, 1 Row, 16 A Current, 320 V, Polyamide Housing 1110646

Name: Phoenix Contact Pluggable Terminal Block, 17-Contact, 5.08 mm Pitch, 1 Row, 16 A Current, 320 V, Polyamide Housing 1110646
Brand: PHOENIX CONTACT
SKU: 177192
Price: 24.31 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Poland
Voltage	320V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	16A
Length	27.37mm
Model	1110646
Depth	15.39mm
Width	96.54mm
Housing Material	Polyamide
Number of Rows	1
Pitch	5.08mm
Standards/Approvals	cULus Recognised, UL Recognised, VDE
Number of Contacts	17
Connector Gender	Female
Minimum Wire Size mm²	2mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Push-in

Key Features

The terminal block supports a maximum current of 16 A.
Designed with polyamide housing ensuring durability and resistance.
Features a push-in wire connection method for fast assembly.
Supports wire sizes from 26 AWG to 12 AWG (2 mm² to 2.5 mm²).
Compact design with length 27.37 mm, width 96.54 mm, and depth 15.39 mm.
The terminal block operates at voltage rating of 320 V.
Equipped with a female connector orientation, straight type.
Color coded green housing for easy identification.

Product Description

Phoenix Contact 1110646 is a high-quality Pluggable Terminal Block designed for reliable electrical connections in industrial and electronic applications. It features 17 contacts arranged in a single row with a pitch of 5.08 mm, supporting a nominal current of 16 A and voltage rating of 320 V.

The housing is made of robust polyamide material, offering excellent durability and insulation properties. The terminal block uses a push-in connection spring technology that allows for quick and secure wire insertion when the lever is closed, enhancing installation efficiency.

Wiring compatibility includes wire sizes from 26 AWG (2 mm²) up to 12 AWG (2.5 mm²), with a straight female connector orientation. The compact dimensions - 27.37 mm length, 96.54 mm width, and 15.39 mm depth - make it suitable for tight circuit board layouts.

Additional features include integrated test options for quick and convenient testing of connections and clear lever positions that provide reliable feedback on opened or closed clamping spaces. The product operates reliably within ambient temperatures from -40 °C to 105 °C.

Supports 17 contacts for multiple wire connections. Push-in connection method saves installation time and effort. Durable polyamide housing in green color for easy identification. Complies with major safety approvals including cULus, UL, and VDE standards.

Compact form factor suitable for various electronic and industrial uses. Operates with a maximum current of 16 A at 320 V voltage rating. Compatible with wire sizes from 26 AWG to 12 AWG.

Common applications include industrial automation, control cabinet wiring, power distribution systems, and electronics manufacturing. This terminal block offers high reliability and ease of use for engineers and technicians across multiple industrial sectors.
