| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C10-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 200nA |
| Nominal Zener Voltage Vz | 10V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 150Ω |
| Typical Voltage Temperature Coefficient | 4.5mV/K |

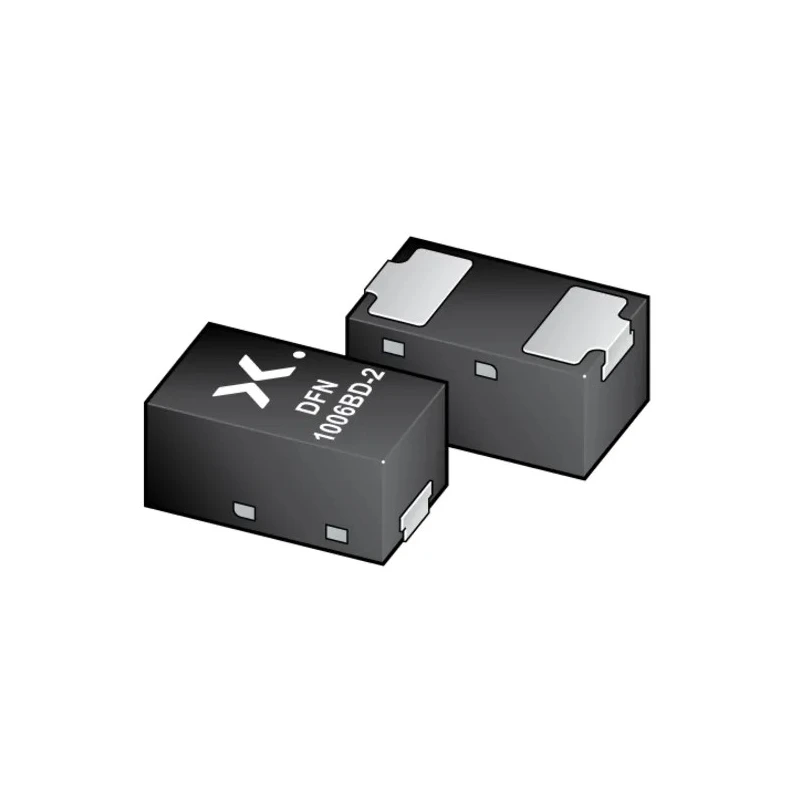

Nexperia BZX884S-C10-QYL is a high-quality general purpose Zener diode designed for surface mounting in compact electronic circuits. It features a nominal Zener voltage of 10 V and power dissipation rating of 365 mW within an ultra-small DFN1006BD-2 2-pin package measuring only 1 mm in length and 0.47 mm in height. This configuration ensures efficient voltage regulation in tight spaces.
The diode exhibits a 2% voltage tolerance and low leakage current making it ideal for precise voltage stabilization. Certified to meet automotive standard AEC-Q101 and RoHS compliance, it supports use in automotive and industrial applications requiring reliability under harsh environmental conditions. The temperature rating ranges from -55°C to 150°C, ensuring stability in extreme operating environments.
With a typical voltage temperature coefficient of 4.5 mV/K and a maximum Zener impedance of 150 Ω at a test current of 5 mA, this diode provides dependable performance for power supply and voltage reference circuits. Its leadless surface-mount design features side-wettable flanks enhancing solder joint integrity for automated PCB assembly.
This Zener Diode is suitable for integration in power management modules, voltage clamping circuits, and general electronic applications including industrial, automotive, and consumer devices. It helps protect sensitive components by maintaining stable voltage levels in fluctuating electrical environments.
Single diode configuration designed for general purpose use. Features a 2% tolerance on the nominal Zener voltage. Maximum power dissipation of 365 mW ensures reliable performance. Compact DFN1006BD-2 surface mount package with low height of 0.47 mm and length of 1 mm.
Meets RoHS compliance and automotive standard AEC-Q101 for quality assurance. Operates within a temperature range of -55°C to 150°C. Maximum reverse leakage current is 200 nA, ensuring low leakage losses. Maximum Zener impedance of 150 Ω at test current of 5 mA.
Typical voltage temperature coefficient of 4.5 mV/K for stable operation. Automotive grade diode suitable for demanding electronic applications. Discover more quality semiconductor components and related products in the Nexperia brand range at EnvMart for your industrial and automotive design projects.
