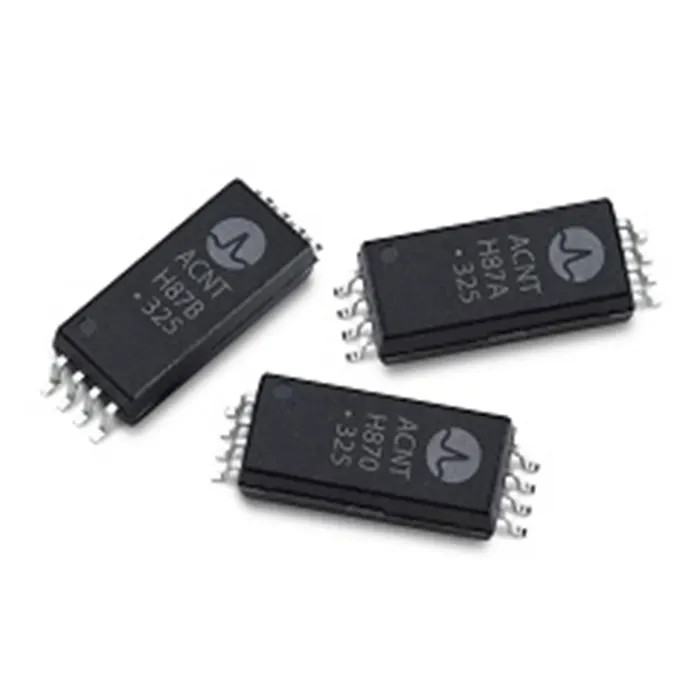

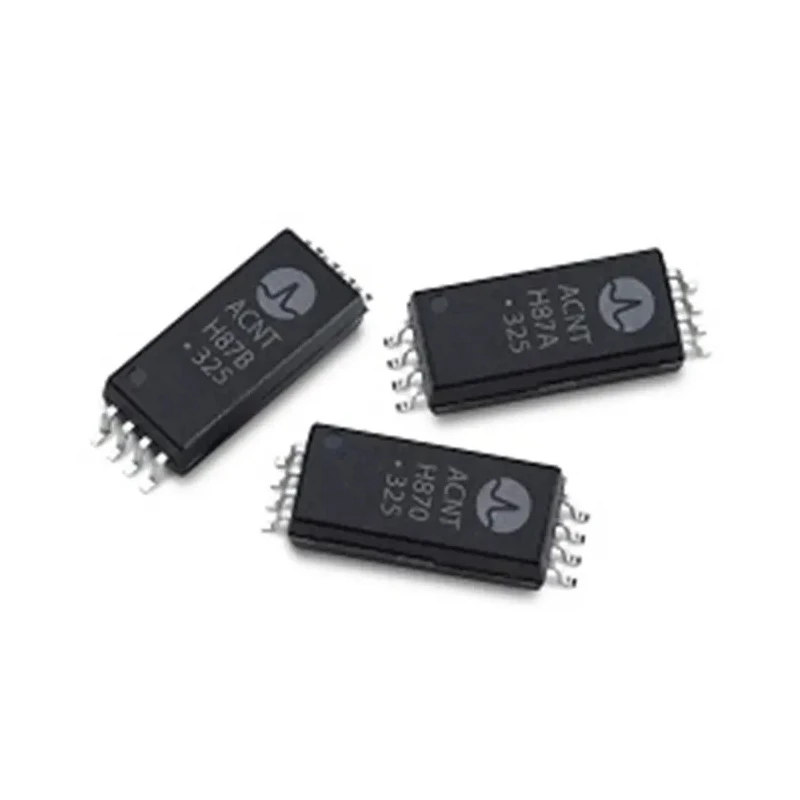

Broadcom ACNT-H870-500E Optocoupler Surface Mount 8-Pin 1 Channel RoHS Compliant ACNT-H870-500E
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Broadcom |
| Model | ACNT-H870-500E |
| Mount Type | Surface |
| Series | ACNT-H870 |
| Maximum Operating Temperature | 110°C |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 230mA |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Number of Pins | 8 |
| Typical Rise Time | 2.7μs |
Key Features
- Features advanced sigma-delta modulation technology for accurate voltage sensing.
- 1 channel with 1 GΩ input impedance suitable for high precision measurement.
- Wide operating temperature range from -40°C to 110°C ensures reliable performance.
- Offers typical rise and fall times of 2.7 microseconds for fast response.
- Wide supply voltage range from 3V to 55V on the output side for versatile use.
- Compact 15-mm Stretched SO-8 package allows for easy PCB mounting.
- Designed for industrial, motor drive, and renewable energy applications.
- Meets RoHS compliance standards for environmental safety.
Product Description
Broadcom ACNT-H870-500E is a high-performance optocoupler designed for isolated voltage sensing requirements in electronic power converter applications such as motor drives and renewable energy systems. It features a single channel and surface mount assembly with 8 pins housed in a compact 15-mm Stretched SO-8 package.
This device utilizes advanced sigma-delta modulation technology, delivering a unity gain of 1V/V with ±0.5% high gain accuracy (ACNT-H87B variant). It provides a nominal input voltage range of 0 to 2V and an exceptionally high input impedance of 1 GΩ, making it suitable for sensitive and precise voltage sensing.
With a fast response time featuring typical rise and fall times of 2.7 microseconds, this optocoupler supports dynamic signal changes efficiently. It operates reliably over a broad temperature range from -40°C to +110°C and withstands up to 15 kV/μs common-mode transient immunity, ensuring robustness in harsh industrial environments.
The output side supports a wide supply voltage range of 3V to 55V and includes an active-high shutdown pin for added control flexibility. The device's compact package and surface mount design facilitate seamless integration into modern electronic systems.
Broadcom ACNT-H870-500E complies with RoHS environmental standards, promoting eco-friendly manufacturing. It is an ideal solution in industrial, laboratory, construction, HVAC, manufacturing, water treatment, agricultural, and commercial sectors where isolated voltage sensing is critical.
Features advanced sigma-delta modulation technology for accurate voltage sensing. Single channel with 1 GΩ input impedance for high precision. Wide operating temperature range from -40°C to 110°C. Fast typical rise and fall times of 2.7 microseconds.
Wide output-side supply voltage range from 3V to 55V. Compact 15-mm Stretched SO-8 surface mount package. Includes active-high shutdown pin for operational control. Robust common-mode transient immunity of 15 kV/μs. Compliant with RoHS standards.
Explore the full range of Optocouplers and isolation amplifiers at EnvMart for comprehensive solutions in electronics components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an exceptionally high input impedance of 1 GΩ, making it suitable for sensitive and precise voltage sensing applications.
It operates reliably over a wide temperature range from -40°C to +110°C.
The typical rise and fall times for this unit are 2.7 microseconds, allowing for fast response to dynamic signal changes.
The output side supports a wide supply voltage range of 3V to 55V, providing versatility for various applications.
This model has a single channel, designed for isolated voltage sensing requirements.
It comes in a compact 15-mm Stretched SO-8 surface mount package, facilitating easy PCB mounting.
Yes, it meets RoHS compliance standards, promoting eco-friendly manufacturing practices.
It is designed for use in industrial, motor drive, and renewable energy applications, among others that require isolated voltage sensing.
The maximum input current for the ACNT-H870-500E is 230mA.
This optocoupler utilizes advanced sigma-delta modulation technology for accurate voltage sensing.
It has a robust common-mode transient immunity of 15 kV/μs, ensuring reliable performance in harsh environments.
This model is manufactured in the Philippines.
