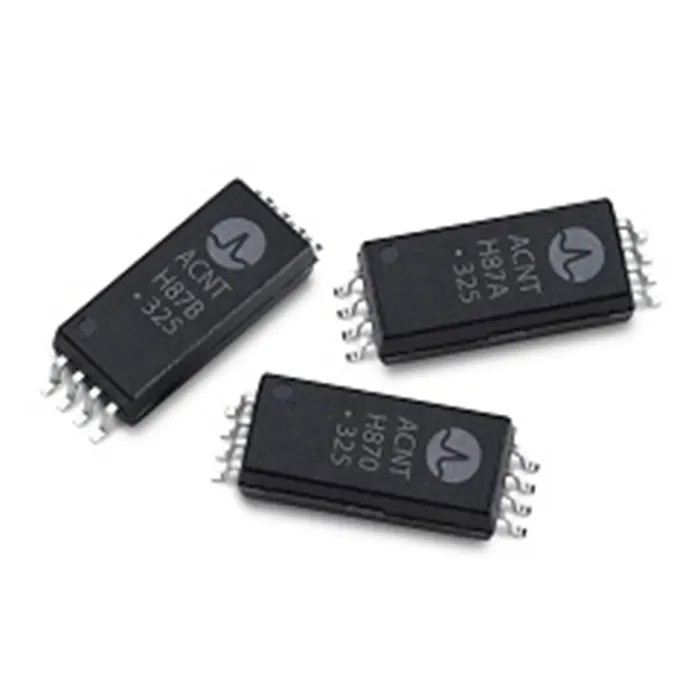

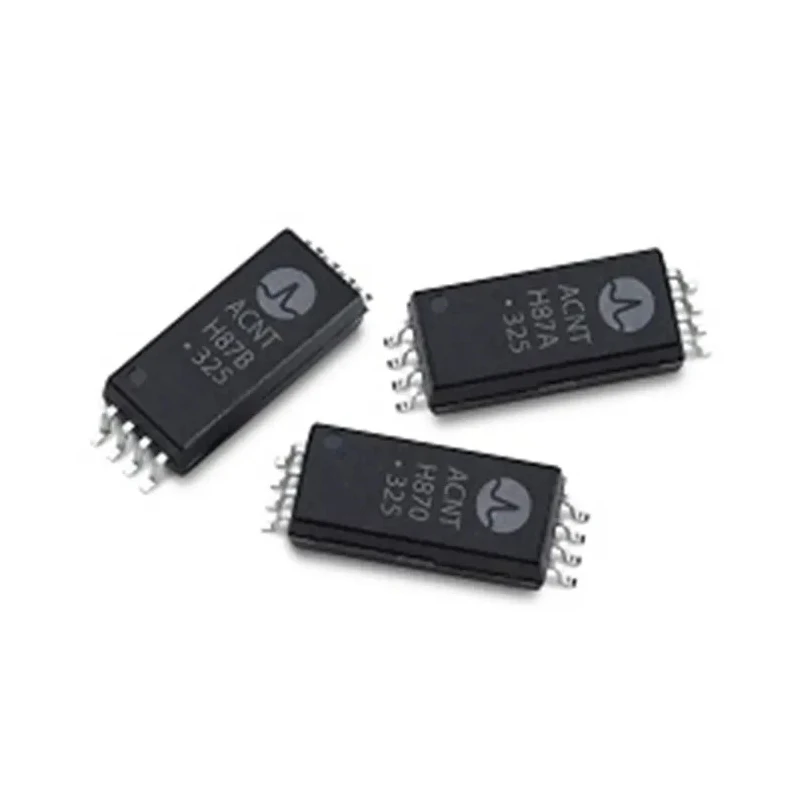

Broadcom ACNT-H870-500E Optocoupler Surface Mount 8-Pin Voltage Sensor ACNT-H870-500E
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Broadcom |
| Model | ACNT-H870-500E |
| Mount Type | Surface |
| Series | ACNT-H870 |
| Maximum Operating Temperature | 110°C |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 230mA |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Number of Pins | 8 |
| Typical Rise Time | 2.7μs |
Key Features
- Optical isolation amplifier designed for voltage sensing with 2V input range.
- High input impedance of 1 GΩ suitable for electronic power converters.
- Typical rise and fall time of 2.7 microseconds for fast response.
- Operating temperature range from -40°C to +110°C ensures reliability in harsh environments.
- Compact 15-mm stretched SO-8 package compatible with surface mount technology.
- Wide supply voltage range of 3V to 55V on the output side for flexibility.
- Active-high shutdown pin for power management.
- Common-mode transient immunity of 15 kV/μs for noise resilience.
Product Description
Broadcom ACNT-H870-500E optocoupler is a high-precision voltage sensor and optical isolation amplifier engineered for isolated voltage sensing in demanding applications such as motor drives, renewable energy systems, and electronic power converters. It features a 2V nominal input range and high 1 GΩ input impedance which ensures accurate sensing with minimal loading effect on the circuit.
The device operates within an extensive temperature range from -40°C to +110°C, maintaining performance stability. Its fast typical rise and fall times of 2.7 microseconds enable quick response to signal changes, critical for real-time monitoring and control.
This component comes in a compact, auto-insertable 15-mm stretched SO-8 surface mount package, facilitating easy integration into modern PCBs. The output side supports a wide supply voltage range from 3V to 55V, accommodating various system requirements.
Additional features include an active-high shutdown pin for efficient power control and a common-mode transient immunity of 15 kV/μs which provides resistance against electrical noise in industrial environments. The device complies with RoHS environmental directives, ensuring it meets current regulations.
Optical isolation and high input impedance for accurate voltage sensing. Fast response times with 2.7 μs typical rise and fall times. Wide temperature and supply voltage operating ranges. Compact SO-8 surface mount packaging for easy PCB integration.
Robust common-mode transient immunity and power management features.
This Optocoupler is ideal for industrial, automotive electronic systems (non-automotive rated), renewable energy monitoring setups, laboratory instruments, and manufacturing control systems that require precise voltage isolation and measurement.
Explore EnvMart's extensive range of optoelectronic components for high-quality isolation and sensing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ACNT-H870-500E has a nominal input range of 2V, making it suitable for voltage sensing applications.
This optocoupler can operate at a maximum temperature of 110°C, ensuring reliability in high-temperature environments.
The typical rise time for this model is 2.7 microseconds, allowing for fast response to signal changes.
It features a high input impedance of 1 GΩ, which helps in accurate voltage sensing with minimal loading effect.
The output side of this optocoupler supports a wide supply voltage range from 3V to 55V, providing flexibility for various applications.
This model uses a surface mount type, specifically in a compact 15-mm stretched SO-8 package, facilitating easy integration into PCBs.
The ACNT-H870-500E has a common-mode transient immunity of 15 kV/μs, which helps it resist electrical noise in industrial environments.
This optocoupler is designed with 1 channel, suitable for isolated voltage sensing applications.
The ACNT-H870-500E operates within a temperature range from -40°C to +110°C, ensuring performance stability in various conditions.
Yes, this model complies with RoHS environmental directives, ensuring it meets current regulations.
The maximum input current for this optocoupler is 230mA, making it suitable for a variety of electronic power converters.
This optocoupler is ideal for applications in motor drives, renewable energy systems, and electronic power converters that require precise voltage isolation and measurement.
