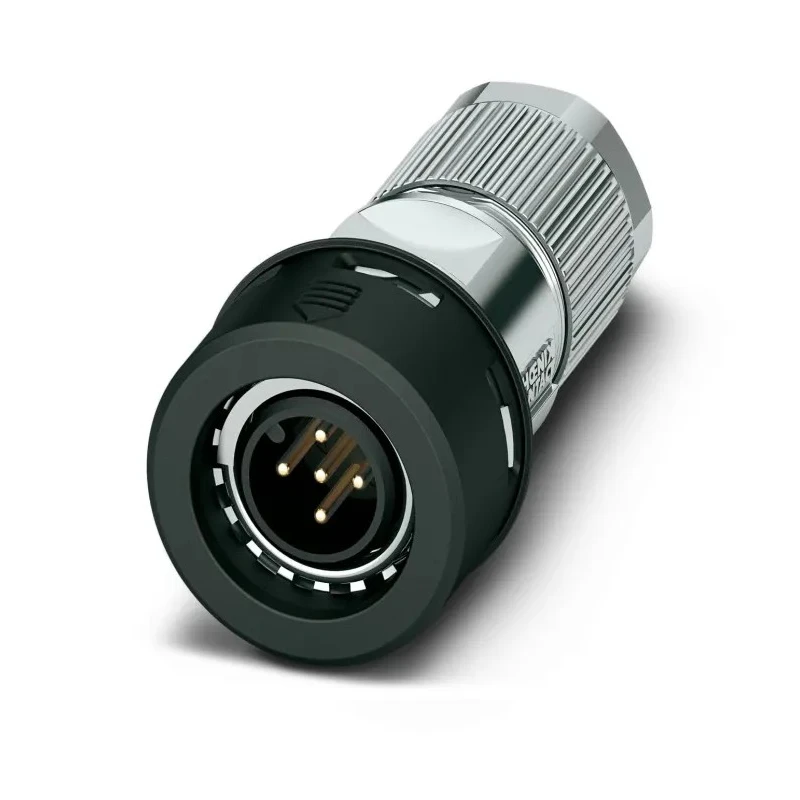

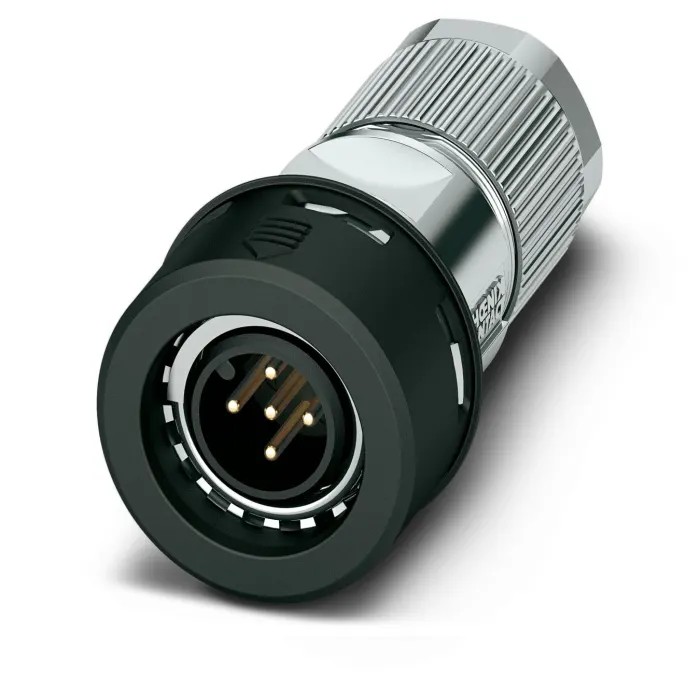

Phoenix Contact Circular Connector, 5 Contacts, Cable Mount, M12 Size, Plug, IP65 IP67 Rated, SACC Series 1021815
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 4A |
| Model | 1021815 |
| IP Rating | IP65, IP67 |
| Mount Type | Cable |
| Housing Material | Die Cast Zinc |
| Contact Material | Copper Zinc Alloy |
| Series | SACC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | EAC, EN, IEC, RoHS |
| Number of Contacts | 5 |
| Mating Type | Push Pull |
| Connector Size | M12 |
| Plug/Socket | Plug |
| Coding | A |
Key Features
- Compact and highly durable die-cast zinc housing ensures mechanical robustness.
- Rated for 4A current at 60V AC/DC voltage for reliable power transmission.
- Plug type connector with push-pull mating ensures secure and easy connection.
- Suitable for harsh conditions with operating temperature ranging from -40°C to 85°C.
- High contact density with 5-position configuration for space-saving installations.
- Coding type A guarantees correct mating and prevents cross-connection.
- Contact material made from copper zinc alloy for excellent conductivity and corrosion resistance.
- Meeting stringent standards including EAC, EN, IEC, and RoHS compliance.
Product Description
Phoenix Contact 1021815 circular connector is a high-performance cable-mount plug designed with 5 contacts and a compact M12 size suitable for demanding industrial and railway applications. It offers IP65 and IP67 ingress protection ratings, making it highly resistant to dust and water ingress, ensuring reliable operation in harsh environments.
The connector features a rugged die-cast zinc housing that provides durability and mechanical stability. The plug type with push-pull mating mechanism ensures quick and secure connections while preventing accidental disconnections. Its compact design allows high contact density, saving wiring space with a 5-position layout.
Rated for 4 amps at 60 volts (AC/DC), this connector maintains excellent electrical performance. The contacts are made from copper zinc alloy, which ensures superior conductivity and corrosion resistance. The connector complies with industry standards including EAC, EN, IEC, and RoHS, guaranteeing safety and quality compliance.
Operating temperature ranges from -40°C to 85°C, allowing the product to function reliably in cold and hot climates. The coding type A ensures correct and standardized mating. This product is especially suitable for railway applications due to its resilience against shock and vibrations, ensuring long-term stable performance.
The product is manufactured in Germany, reflecting excellent quality control and manufacturing expertise. It is part of the Phoenix Contact SACC Series, known for its compact and reliable industrial circular connectors.
Compact die-cast zinc housing for mechanical strength. 4A current rating at 60V AC/DC operation. Push-pull plug mating for safety and ease of use. IP65 and IP67 rated for dust and water protection. Operating temperature from -40°C to 85°C.
5-position contact layout for high contact density. Coding type A prevents mismating. Copper zinc alloy contacts ensure conductivity. Complies with EAC, EN, IEC, and RoHS standards. Designed for high shock and vibration resistance applications.
This Phoenix Contact circular connector is an ideal choice for industrial, railway, manufacturing, and automation operations requiring reliable and durable cable connectors. Browse more Industrial Circular Connectors at EnvMart for complementary solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 4A.
It is rated for 60V AC/DC voltage.
The connector has IP65 and IP67 ratings, providing protection against dust and water ingress.
It operates within a temperature range of -40°C to 85°C.
The housing is made from die-cast zinc, ensuring mechanical strength.
The contacts are made from copper zinc alloy, which provides excellent conductivity and corrosion resistance.
This model features a 5-position contact layout.
It utilizes a push-pull mating mechanism for secure and easy connections.
It complies with EAC, EN, IEC, and RoHS standards.
The coding type is A, which prevents mismating during connection.
This circular connector is of M12 size.
It is manufactured in Germany, reflecting high-quality control standards.
