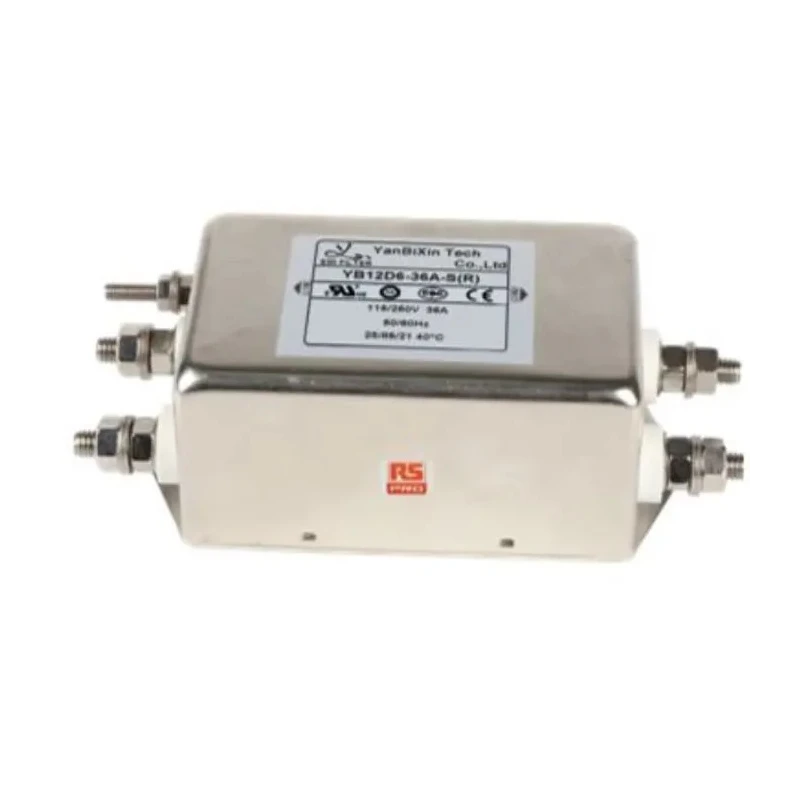

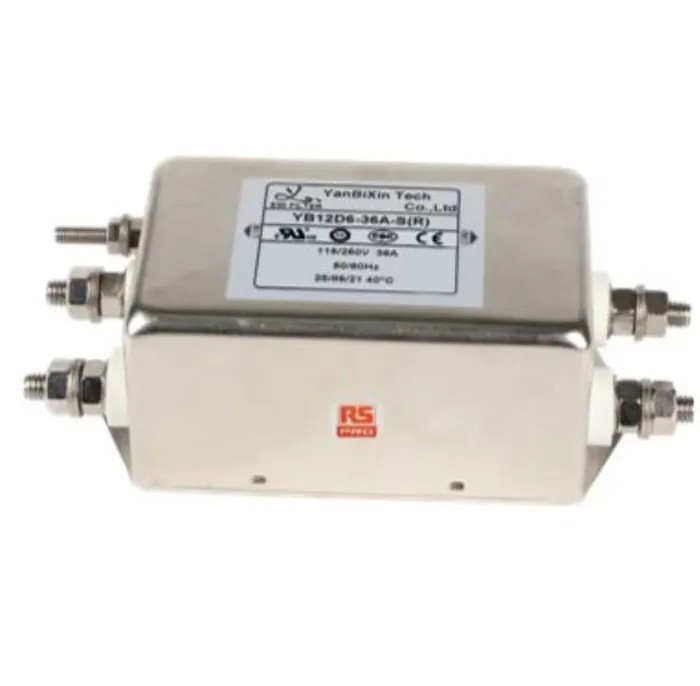

RS PRO Power Line Filter 36 A 250V AC 50Hz 60Hz Chassis Mount Screw Termination 1 Phase 237-8693

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Power Line Filter 36 A 250V AC 50Hz 60Hz Chassis Mount Screw Termination 1 Phase 237-8693

Name: RS PRO Power Line Filter 36 A 250V AC 50Hz 60Hz Chassis Mount Screw Termination 1 Phase 237-8693
Brand: RS PRO
SKU: 175798



Category Power Line Filters Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Height	44.5mm
Length	114mm
Model	237-8693
Depth	57mm
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Maximum Operating Temperature	85°C
Number Of Stages	1
Resistance	2.2mΩ
Capacitance	0.22μF
Minimum Operating Temperature	-25°C
Maximum Current	36A
Number of Phases	1
Leakage Current	1.2mA
Maximum Voltage	250V ac
Inductance	20.5mH
Termination Style	Screw

Key Features

Chassis mount design with screw termination for secure connections.
Single-phase operation with one stage for effective filtering.
Capacitance of 0.22μF and inductance of 20.5mH for robust electromagnetic interference suppression.
Operates reliably between -25°C to 85°C with low leakage current of 1.2mA.
Compact dimensions of 114mm length, 44.5mm height, and 57mm depth optimize installation space.
Complies with UL1283, IEC, GB 15287-2008, EN 60939, CSA C22.2 No.8, and CQC GB 15288 standards.
Resistant to 2.2mΩ resistance ensuring consistent electrical performance.
Suitable for use in industrial, medical, and household electrical equipment for EMI protection.

Product Description

RS PRO 237-8693 Power Line Filter provides high quality and reliable filtering solutions for electrical devices operating at 36 A and 250V AC, supporting frequencies of 50 and 60 Hz. The chassis mount construction with screw termination ensures robust and secure installation in electronic equipment.

This single-phase filter features a capacitance of 0.22μF and an inductance of 20.5mH, delivering efficient suppression of conducted radio frequency interference (RFI) that can disrupt device performance. It protects sensitive electronics from transient voltage spikes caused by power outages or lightning strikes.

The filter is designed to operate at extreme temperatures ranging from -25°C up to 85°C, maintaining stable performance with a low leakage current of only 1.2mA. Its compact dimensions make it suitable for integration into small to medium-sized machines and household appliances.

Certified by multiple rigorous international standards including UL1283, IEC, EN 60939, and CSA compliance ensures this filter meets key safety and performance criteria. The low resistance rating of 2.2mΩ contributes to its durability and efficiency in electrical circuits.

Ideal applications include industrial machinery, medical instruments, and home appliances requiring reliable EMI filtering to avoid electronic disruptions and prolong device life. This power line filter contributes to maintaining EMC compliance and enhancing system safety.

Chassis mount power line filter with screw termination for secure electrical connections. Rated for maximum current 36 A and voltage 250V AC at 50/60 Hz operating frequency. Effective EMI suppression with 0.22μF capacitance and 20.5mH inductance.

Wide operating temperature range from -25°C to 85°C for versatile application environments. Meets multiple international safety and EMC standards including UL, IEC, and CSA. Compact form factor: 114mm length, 44.5mm height, 57mm depth for easy integration.

Low leakage current of 1.2mA and resistance of 2.2mΩ ensure efficient performance. Ideal for industrial, medical, and household EMI filtration needs. Discover more Power Line Filters at EnvMart for robust electrical noise suppression and enhanced system reliability.
