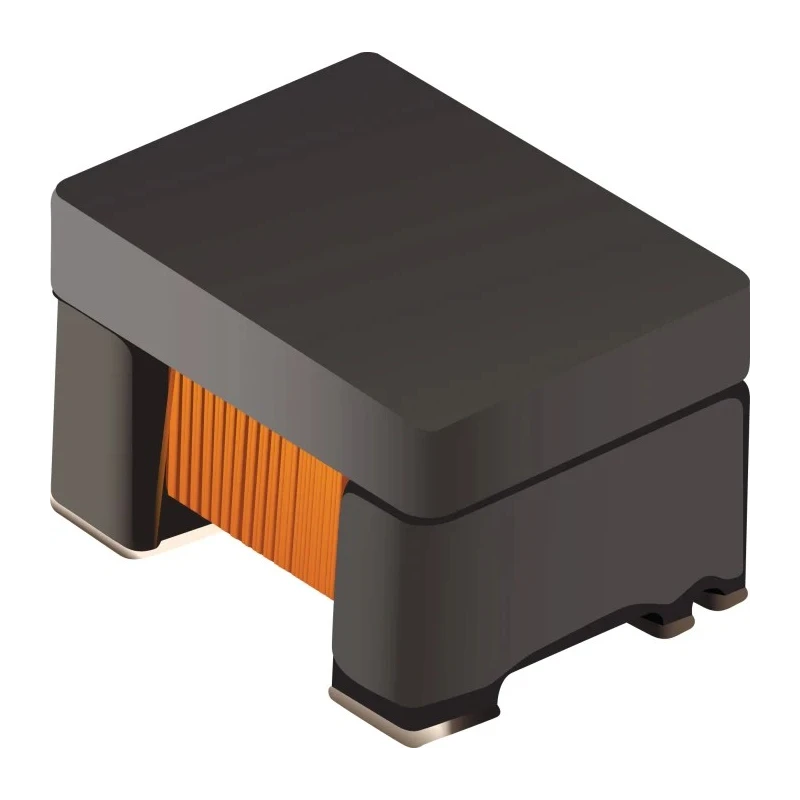

Bourns Surface LAN Ethernet Transformer, 1 Output, 230μH, 2.9mm Depth, -40°C to 85°C, IEEE 802.3 SM453230-231N7YP
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Bourns |
| Model | SM453230-231N7YP |
| Depth | 2.9mm |
| Mount Type | Surface |
| Series | SM453230-231N7YP |
| Termination Type | N7 Termination |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | Ethernet compatible |
| Number of outputs | 1 |
| Inductance | 230μH |
| Standards/Approvals | IEEE 802.3 |
| Insertion Loss | -1.5dB |
| Turns Ratio | 1:1 |
| Turns Ratio1 | 1 |
Key Features
- Compliant with IEEE 802.3 Ethernet standards.
- Surface mount type with N7 termination for easy PCB integration.
- Insertion loss of -1.5 dB ensuring minimal signal degradation.
- Compatible with 1/2.5/5 Gb Ethernet and PoE+ applications.
- Constructed with discrete chip-LAN transformer and common mode chip inductor for EMI suppression.
- Halogen-free construction suitable for environmentally conscious designs.
- Wide operating temperature range from -40°C to +85°C for robustness in diverse environments.
- Manufactured in Taiwan, Province of China, assuring quality and performance.
Product Description
Bourns SM453230-231N7YP Surface LAN Ethernet Transformer features a discrete, center-tapped component wound on a drum core with a ferrite plate that emulates the magnetic path of a toroid core transformer. It is engineered for 1/2.5/5 Gb Ethernet and PoE+ compatible applications with compliance to IEEE 802.3 standards.
The transformer’s surface mount design with N7 termination facilitates flexible printed circuit board layouts. It exhibits a low insertion loss of -1.5 dB and a turns ratio of 1:1, ensuring high signal integrity and minimal power loss during transmission.
Designed to operate reliably within a temperature range from -40°C to +85°C, this LAN transformer is halogen-free and features discrete chip inductors for effective EMI suppression for improved network performance and noise reduction.
Ideal for use in industrial, telecommunications, network infrastructure, and commercial electronic devices requiring Ethernet connectivity and power over Ethernet (PoE+). Compliant with IEEE 802.3 Ethernet standards. Surface mount with N7 termination type for PCB integration.
230 microhenry inductance suitable for signal conditioning. Insertion loss of -1.5 dB for minimized signal loss. Wide operating temperature range from -40°C to 85°C. Halogen-free construction for environmentally friendly applications.
Discrete chip-LAN transformer design with EMI suppression. Compatible with 1/2.5/5 Gb Ethernet and PoE+ applications.
Set yourself up for robust network transformer performance with Bourns components known for precision and reliability. Explore more Ethernet transformers and related products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 230μH, suitable for signal conditioning in Ethernet applications.
This transformer has an insertion loss of -1.5 dB, ensuring minimal signal degradation during transmission.
It can operate reliably within a temperature range from -40°C to +85°C, making it suitable for diverse environments.
Yes, it is compliant with IEEE 802.3 Ethernet standards, ensuring compatibility with Ethernet applications.
This transformer features an N7 termination type, designed for surface mount applications and easy PCB integration.
The maximum depth of this transformer is 2.9mm, allowing for compact PCB designs.
This model has 1 output, suitable for various Ethernet applications.
It is suitable for industrial, telecommunications, network infrastructure, and commercial electronic devices requiring Ethernet connectivity and PoE+.
The turns ratio of this unit is 1:1, which helps maintain high signal integrity during transmission.
It features a discrete chip-LAN transformer design with common mode chip inductors for EMI suppression, enhancing network performance.
This model is manufactured in Taiwan, ensuring quality and performance standards are met.
It is compatible with Ethernet interfaces, specifically designed for 1/2.5/5 Gb Ethernet and PoE+ applications.
