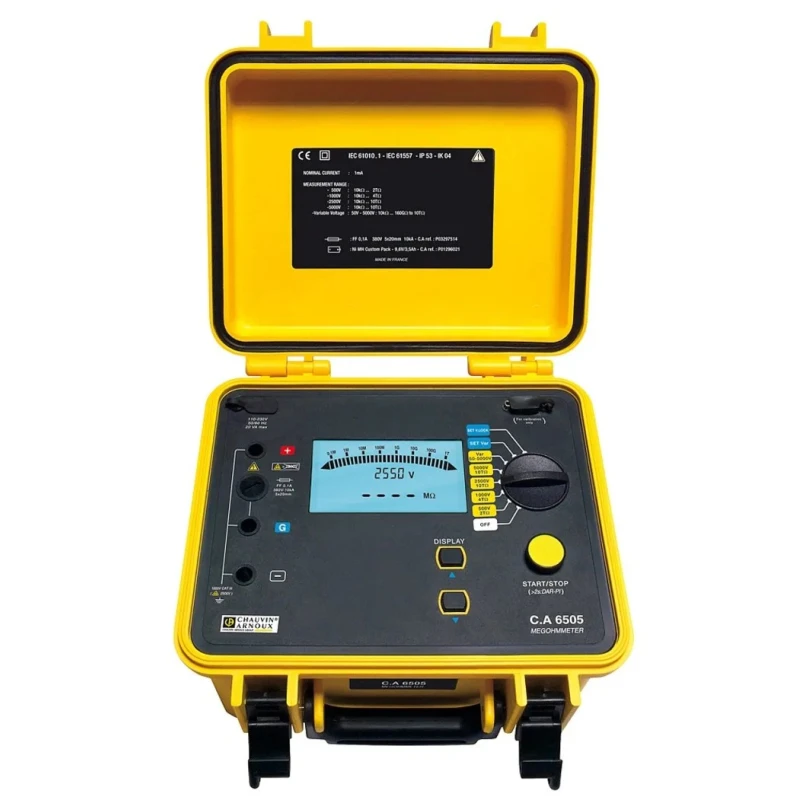

Chauvin Arnoux Insulation Tester CA 6505 40 V Min, 5100 V Max, 10 TΩ Resistance, CAT III Safety Level P01139714

Chauvin Arnoux CA 6505 Insulation Tester is a high-precision electrical measurement instrument designed for safe and reliable insulation testing in industrial, construction, laboratory, and maintenance applications. It features a wide testing voltage range from 40 V minimum to 5100 V maximum, enabling comprehensive insulation diagnostics across different equipment and installations.

The tester measures insulation resistance values up to 10 TΩ, providing qualitative and quantitative data critical for preventive maintenance and fault detection. The large backlit LCD ensures clear and easily interpretable digital and bargraph displays, enhancing usability under varying lighting conditions.

Powered by a Nickel-Metal Hydride battery with an operational life of approximately 30 days, the device offers prolonged usage without frequent charging interruptions. Safety is assured with CAT III rating at 2500 V and compliance with IEC 61557 and IEC 61010-1 standards, making it suitable for heavy industrial and commercial electrical testing environments.

Its ergonomic design with dimensions of 270mm length, 250mm width, and 80mm height ensures portability and convenient operation on-site. The CA 6505 supports fixed and programmable voltage testing, along with step voltage mode, enabling tailored insulation assessments.

Additional features include automatic calculation of dielectric absorption ratio (DAR), polarization index (PI), and dielectric discharge (DD) ratios to provide in-depth insulation quality analysis. The instrument also offers calculation of resistance at a reference temperature facilitating standard condition comparisons.

Measures insulation resistance up to 10 TΩ for accurate diagnostics. Equipped with a large backlit LCD for clear readings in all environments. Battery powered with Nickel-Metal Hydride battery lasting up to 30 days. Complies with IEC 61557 and IEC 61010-1 safety standards ensuring reliability.

Compact dimensions of 270mm x 250mm x 80mm for ease of handling. Rated for CAT III safety at 2500 V for industrial applications. Supports fixed and programmable test voltages from 40 V to 5100 V. Automatic calculation of DAR, PI, and DD quality ratios for insulation analysis.

This insulation tester is essential for professionals requiring precise, portable, and safe equipment for electrical insulation measurements in industrial, laboratory, construction, HVAC, and manufacturing sectors. Explore more Insulation Testers and electrical testing instruments at EnvMart for your testing needs.
