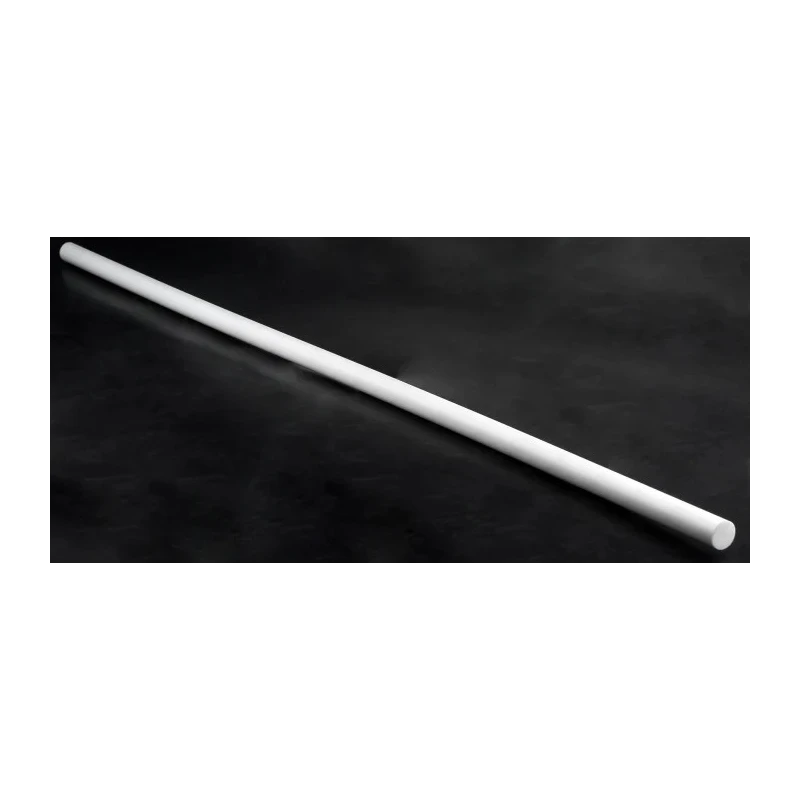

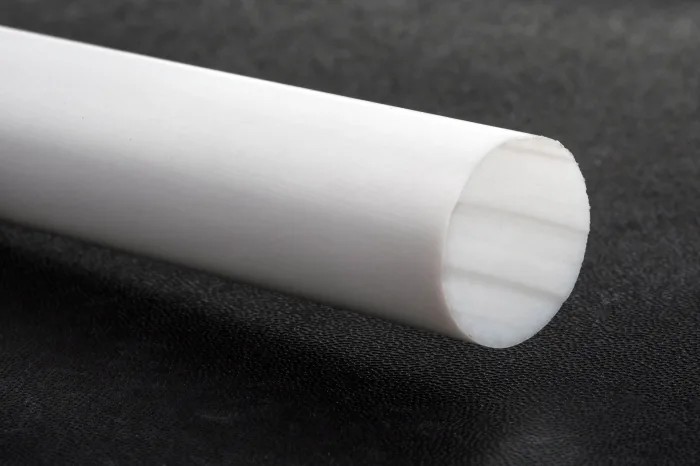

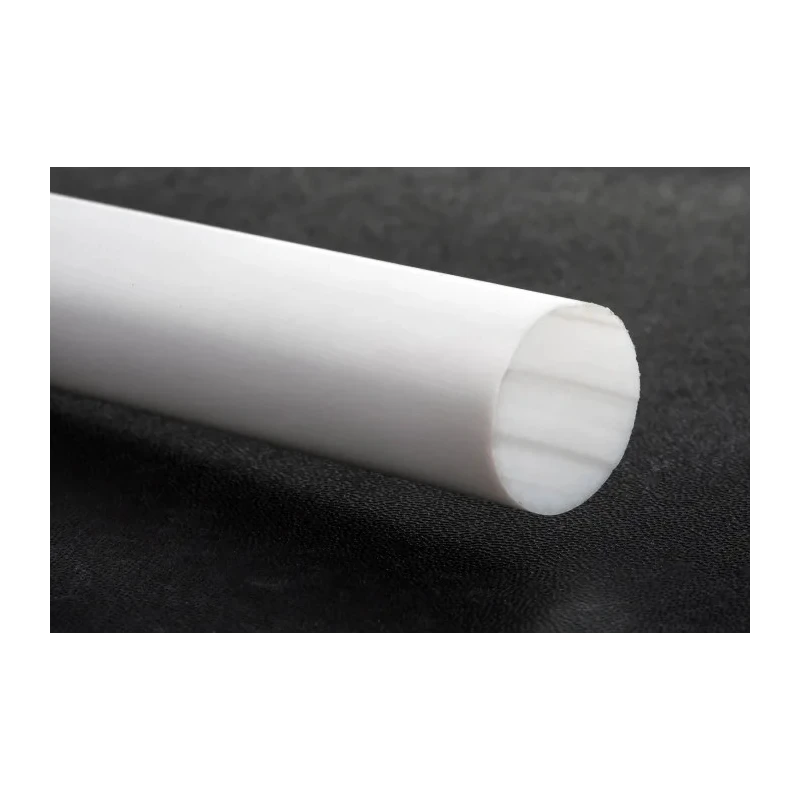

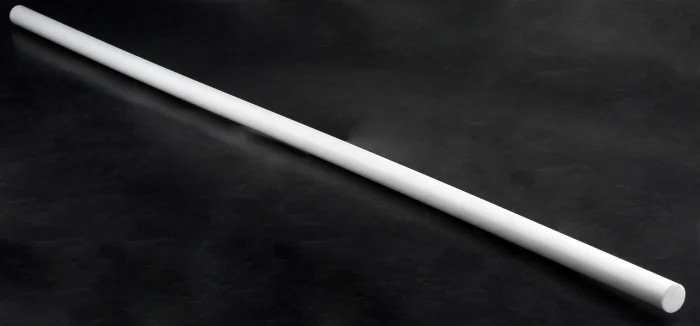

RS PRO White Nylon Rod 1m x 50mm Diameter High Chemical Resistance 170°C Max 770-046
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Material | Nylon |
| Colour | White |
| Length | 1m |
| Model | 770-046 |
| Tensile Strength | 80MPa |
| Density | 1.14g/cm³ |
| Maximum Operating Temperature | 170°C |
| Hardness | 170 Ball Indentation |
| Thermal Conductivity | 0.36W/mK |
| Elongation | 1.5% |
| Rod Diameter | 50mm |
| Standards/Approvals | RoHS, FDA, Aerospace, EU 10/2011, REACH, ISO 9001 |
| Flammability Rating | UL HB |
| Water Absorption | 8.5% |
| RS PRO White Acetal Rod, 1 m x 50 mm DiameterBrand | RS PRO |
| RS PRO Opaque Fluoroplastics PTFE Rod, 500 mm x 50 mm DiameterBrand | RS PRO |
Key Features
- Made from high quality nylon for enhanced durability and performance.
- 1 meter long rod with a diameter of 50 mm suitable for mechanical engineering applications.
- Excellent chemical and UV resistance supports industrial and outdoor use.
- Maximum continuous operating temperature up to 170°C.
- Self-lubricating surface reduces friction for moving parts such as gears, rollers, bushings and sheaves.
- Flammability rated UL HB and compliant with RoHS, FDA, Aerospace, EU 10/2011, REACH and ISO 9001 standards.
- Hardness of 170 Ball Indentation, tensile strength 80 MPa, elongation 1.5% and water absorption 8.5% provide robust physical characteristics.
- Suitable for fabrication of gears, insulators and rollers with easy machinability.
Product Description
RS PRO 770-046 White Nylon Rod is a premium engineered thermoplastic solution designed for demanding industrial, laboratory, automotive, electrical, and marine environments. With a length of 1 meter and a diameter of 50 mm, this rod is constructed from high-performance nylon 66, providing exceptional mechanical strength and resilience against heat, chemicals, and UV exposure.
The high melting point and maximum long-term operating temperature of 170°C enable this rod to withstand elevated temperatures encountered in various manufacturing processes and service conditions. Its density of 1.14g/cm³ and outstanding hardness (170 Ball Indentation) reflect its robustness and suitability for structural and load-bearing applications.
RS PRO nylon rods are recognized for their low friction, self-lubricating properties, and easy machinability, making them ideal for custom fabrication of gears, bushings, rollers, insulators, and sheaves. Its chemical and UV resistance ensures longevity and stability, even when used outdoors or in aggressive environments. Water absorption remains at 8.5%, supporting applications with moderate moisture exposure.
This rod complies with globally accepted standards including RoHS, FDA, Aerospace, EU 10/2011, REACH, and ISO 9001 certifications, confirming its safety and reliability for food-grade, medical, and aerospace projects. It is flammability-rated as UL HB for enhanced safety.
RS PRO Nylon Rods are trusted by engineers and manufacturers worldwide for their quality and versatility. Explore more technical plastic rods in the Plastic Rods category or browse RS PRO’s complete industrial accessory lineup on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this nylon rod is 170°C.
This model measures 1 meter in length and has a diameter of 50 mm.
The tensile strength of this nylon rod is 80 MPa.
It is constructed from high-performance nylon 66, providing enhanced durability and chemical resistance.
This rod complies with RoHS, FDA, Aerospace, EU 10/2011, REACH, and ISO 9001 standards.
The flammability rating of this rod is UL HB.
The density of this nylon rod is 1.14 g/cm³.
The water absorption rate of this rod is 8.5%.
The self-lubricating surface reduces friction for moving parts, making it suitable for applications like gears and rollers.
This rod is suitable for fabrication of gears, insulators, rollers, and other mechanical engineering applications.
The elongation percentage of this nylon rod is 1.5%.
The country of origin for this nylon rod is Germany.
