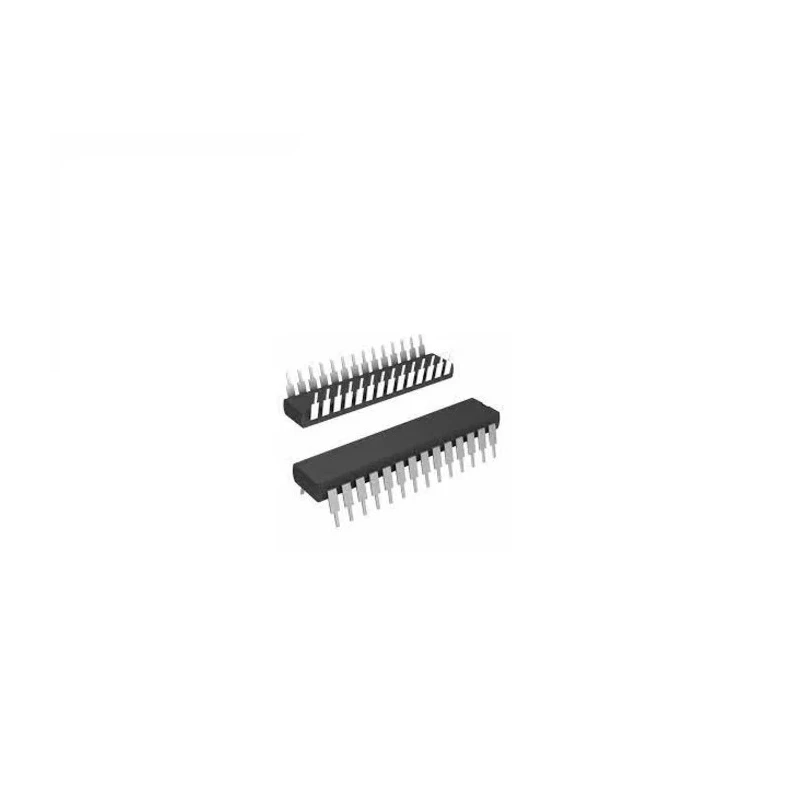

Microchip 8 bit PIC Microcontroller 32 MHz 28kB FLASH 28-Pin DIP PIC16F15356-I/SP

Microchip PIC16F15356-I/SP is an advanced 8 bit PIC microcontroller designed for general-purpose and low power applications that require efficient processing and robust peripheral integration. Operating at a maximum clock frequency of 32 MHz, this device features 28kB of FLASH program memory and 2kB of RAM. Its architecture is optimized with a RISC instruction set, enabling fast execution with a 125 ns minimum instruction cycle.

The device boasts 25 programmable input/output pins, multiple Pulse Width Modulators (PWMs), communication peripherals, and an integrated temperature sensor for precise environmental sensing. The microcontroller supports the Memory Access Partition (MAP), which facilitates data protection and secure bootloader functions, along with a Device Information Area (DIA) that stores factory calibration values to improve temperature sensor accuracy.

Designed for reliable operation in harsh environments, the PIC16F15356-I/SP supports a wide operating temperature range from -40°C to 85°C and a supply voltage ranging between 2.3V and 5.5V. It incorporates two timers: an 8 bit timer with hardware limit timer and a 16 bit timer. The microcontroller also includes features like low power on reset (POR), configurable power-up timer (PWRTE), brown out reset (BOR), and a low power BOR option (LPBOR), enhancing system stability and reliability.

The package type is a 28-pin Dual Inline Package (DIP) with a width of 7.62mm, suitable for surface mounting applications. This microcontroller complies with REACH and RoHS3 standards, ensuring it meets current environmental and safety regulations.

With its efficient power consumption, rich peripheral set, and reliable architecture, the Microchip PIC16F15356-I/SP is suitable for various industrial, embedded, consumer electronics, automotive, and communication applications.

Features eXtreme Low Power (XLP) technology supporting low energy consumption. Multiple communication interfaces and PWMs for flexible control. Integrated temperature sensor with factory calibration for improved accuracy.

Robust operating voltage and temperature ranges for industrial environments. Supports data protection via Memory Access Partition and secure bootloader usage. Compliant with environmental standards like REACH and RoHS3. Optimized 8 bit RISC architecture delivering performance and efficiency.

Package and pin count suitable for diverse surface mount hardware designs. Explore the range of Microcontrollers at EnvMart for comprehensive industrial and commercial solutions.
