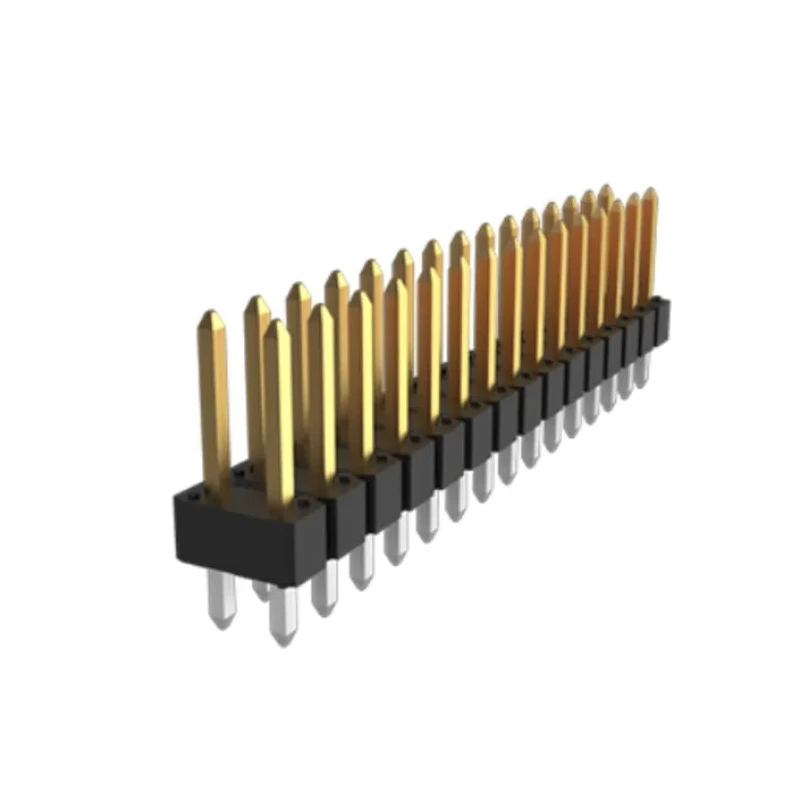

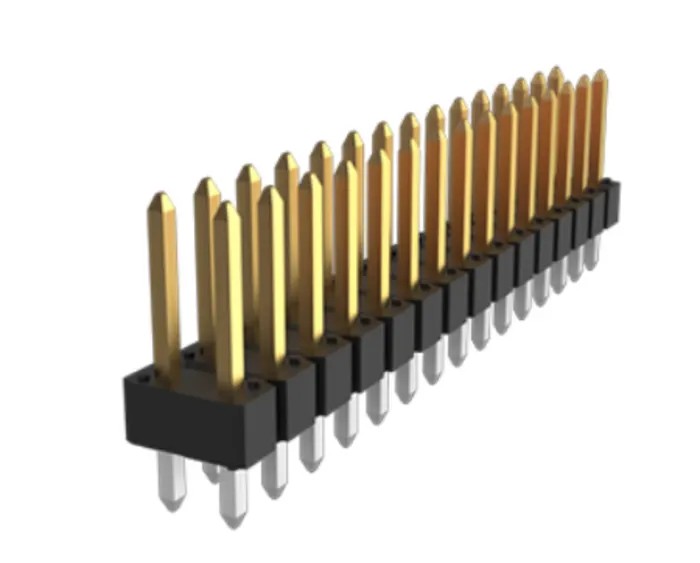

Amphenol Communications Solutions Bergstik Series Vertical Through Hole Pin Header, 14 Contacts, 2.54 mm 77313-118-14LF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Current | 3A |
| Model | 77313-118-14LF |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | UL Approval:E66906 |
| Contact Plating | Phosphor Bronze |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.05mm |
| Mating Pin Length | 5.84mm |
| Standards/ApprovalsUL Approval | E66906 |
| UL Approval | E66906 |
Key Features
- Constructed with thermoplastic housing for high temperature resistance.
- Features phosphor bronze contacts and plating for enhanced conductivity.
- Through-hole mount type ensures stable mechanical and electrical connections.
- Supports current load of 3 amperes and voltage rating up to 1500 volts.
- Vertical orientation with 2 rows accommodates flexible stacking heights.
- Operating temperature ranges from -65°C to 130°C suited for diverse environments.
- Unshrouded male contact design enables easy mating and solder termination.
- Complies with UL approval E66906 for performance and safety standards.
Product Description
Amphenol Communications Solutions 77313-118-14LF Bergstik Series vertical through hole pin header features 14 male contacts arranged in 2 rows with 2.54 mm pitch, designed for board-to-board connectivity in electronic assemblies.
Constructed using high-temperature thermoplastic housing, this header withstands operating temperatures from -65°C to 130°C, ideal for rugged industrial, laboratory, telecommunications, and manufacturing applications.
The pins are made of phosphor bronze material with phosphor bronze plating to ensure low contact resistance and corrosion resistance. The through-hole mount style guarantees secure mechanical fixing and electrical connectivity when soldered onto printed circuit boards.
With a maximum current rating of 3A and voltage withstand of 1500V, it enables reliable signal transmission in complex electronic systems.
The vertical, unshrouded design allows dual entry mating from the top or bottom and supports mezzanine stacking configurations, providing flexibility in system integration for various stack heights.
Thermoplastic housing for high temperature durability. Phosphor bronze contact material and plating for excellent conductivity. Through-hole mount type for robust solder connections. Supports 14 contacts spaced at 2.54 mm pitch in two rows.
Operates in harsh temperatures between -65°C and 130°C. Voltage rating of 1500 volts and current rating of 3 amperes. UL approved (E66906) assuring compliance to industry standards. Suitable for industrial automation, communication equipment, and electronic manufacturing.
This connector is an essential component for electronics engineers and manufacturers looking for dependable, standard Bergstik pin headers for PCB assembly and board-to-board interfacing needs.
Explore more Amphenol Communications Solutions connectors and related components in the PCB Pin Header category at EnvMart for your precision electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 1500 volts.
This model supports a current load of 3 amperes.
The contacts are spaced at a pitch of 2.54 mm.
It features a total of 14 male contacts arranged in 2 rows.
The operating temperature ranges from -65°C to 130°C.
It is constructed with a thermoplastic housing and phosphor bronze contacts with phosphor bronze plating.
This model uses a through-hole mount type for secure installation.
Yes, it complies with UL approval E66906 for performance and safety standards.
The termination type for the contacts is solder.
The pin header is designed for vertical orientation.
The tail pin length is 3.05 mm.
It is suitable for industrial automation, communication equipment, and electronic manufacturing applications.
